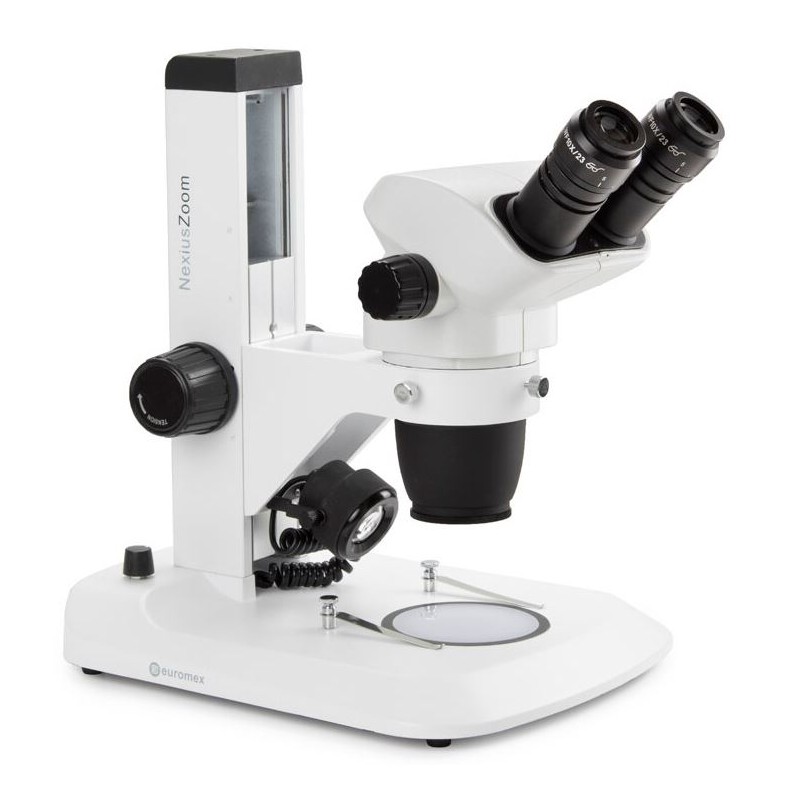

Euromex NZ.1702-S, NexiusZoom Evo, 6.5x to 55x, rack and pinion stand, 3 W LED, incident and transmitted light, bino (55608)

The Euromex NZ.1702-S NexiusZoom Evo is a high-quality stereomicroscope designed for professional industrial use, scientific research, and education. This binocular microscope features a Greenough optical system with a zoom lens, providing magnification from 6.5x to 55x. It is equipped with both incident and transmitted 3W LED lighting, and is mounted on a rack and pinion stand for precise focusing. The NexiusZoom series is known for its excellent optical and mechanical properties while remaining competitively priced.

Euromex NexiusZoom Features:

• Standard wide field secured WF10x eyepieces with 22 mm field of view

• 45° inclined, 360° rotatable binocular stereo head

• 0.67 to 45x Zoom objective, parafocal over the entire zoom range with a working distance of 110 mm

• Optional additional lenses allow magnifications from 3.3x to 90x

• 2 ready-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination

• 4 configurations with universal one arm or double arm stands

Specifications:

Optics

• Eyepiece: 10 (WF 10/23)

• Magnification: 0.65-5.5 (zoom lens)

• Lamp type: LED

• Lighting: Incident light and transmitted light

• Optical system: Greenough

Mechanics

• Type of build: binocular

• Working distance: 110 mm

• Viewing posture: 45° oblique viewing

Special features

• Dust cover bag: yes

General

• Width: 219 mm

• Length: 266 mm

• Series: Nexius EVO

• Matches the series: Nexius

Field of application

• Industry

• Education

• Materials technology

• Mineralogy

• Metallurgy

• University

This versatile microscope is part of the Nexius EVO series and is compatible with the Nexius series, making it suitable for a wide range of applications across various scientific, industrial, and educational fields.
