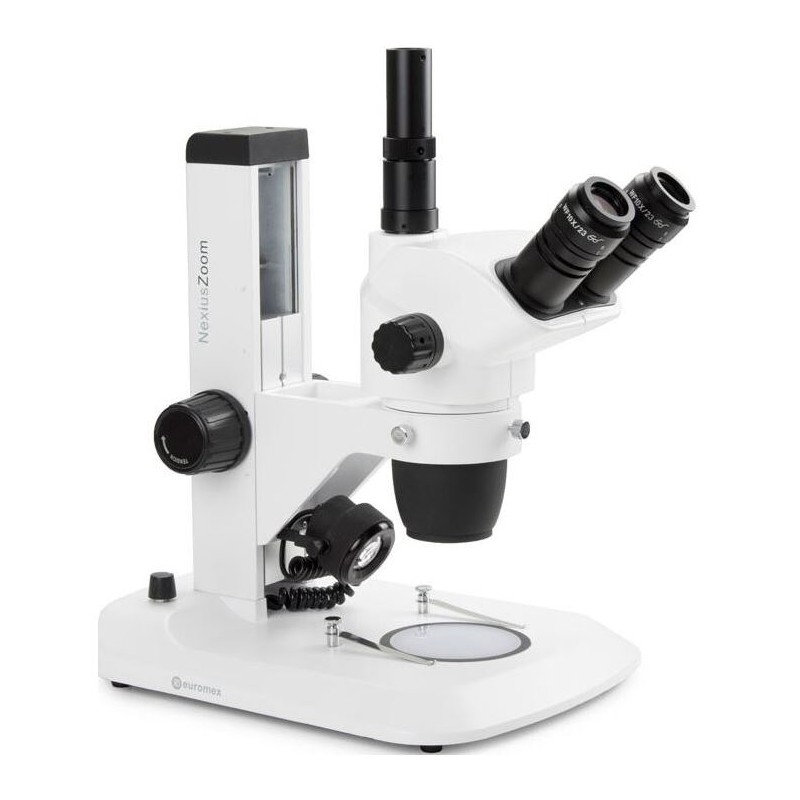

Euromex NZ.1703-S, NexiusZoom EVO, 6.5x to 55x, rack and pinion, LED 3 W, trino (55613)
The Euromex NZ.1703-S NexiusZoom EVO is a high-quality trinocular stereomicroscope designed for professional use in industry, education, and scientific research. This versatile microscope features a Greenough optical system with a zoom lens, providing magnification from 6.5x to 55x. It is equipped with a rack and pinion focusing mechanism and a 3W LED illumination system for both incident and transmitted light.
2157.72 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Euromex NZ.1703-S NexiusZoom EVO is a high-quality trinocular stereomicroscope designed for professional use in industry, education, and scientific research. This versatile microscope features a Greenough optical system with a zoom lens, providing magnification from 6.5x to 55x. It is equipped with a rack and pinion focusing mechanism and a 3W LED illumination system for both incident and transmitted light. The trinocular design allows for the attachment of a camera for documentation and analysis purposes.
Euromex NZ.1703-S, NexiusZoom EVO, 6.5x to 55x, rack and pinion, LED 3 W, trino
Specifications:
Optics
-
Eyepiece: 10 (WF 10/23)
-
Magnification: 0.65-5.5 (zoom lens)
-
Lamp type: -
-
Lighting: Incident light and transmitted light
-
Optical system: Greenough
Mechanics
-
Type of build: Trinocular
-
Working distance: 110 mm
-
Viewing posture: 45° oblique viewing
Special features
-
Dust cover bag: yes
General
-
Width: 219 mm
-
Length: 266 mm
-
Series: Nexius EVO
-
Matches the series: Nexius
Field of application
-
Industry
-
Education
-
Materials technology
-
Mineralogy
-
Metallurgy
-
University
This microscope is part of the Nexius EVO series and is compatible with the Nexius series. Its versatile design and advanced features make it suitable for a wide range of applications across various scientific, industrial, and educational fields.
