Euromex NZ.1703-GEML, NexiusZoom Evo, 6.5x to 55x, gemology , 30W 6V halogen transmitted, 1W LED incident illumination (55620)

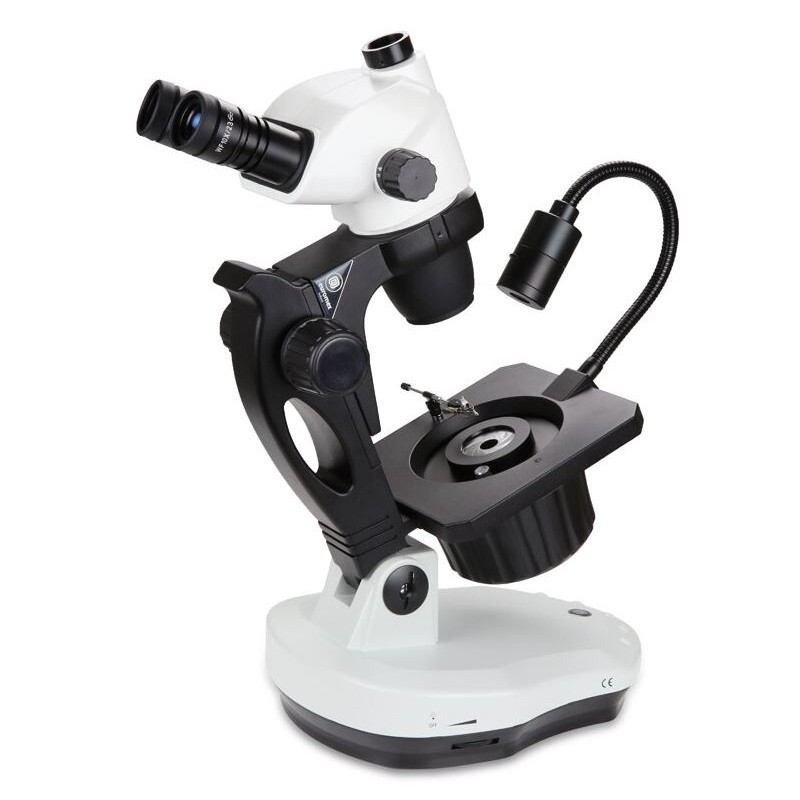

The Euromex NZ.1703-GEML NexiusZoom Evo is a specialized trinocular stereomicroscope designed for gemology and related fields. It offers a magnification range of 6.5x to 55x using a Greenough optical system with a zoom lens. This model features a combination of 30W 6V halogen transmitted light and 1W LED incident illumination, providing versatile lighting options for examining gemstones and other materials. The trinocular design allows for the attachment of a camera for documentation and analysis purposes.

Euromex NZ.1703-GEML, NexiusZoom Evo, 6.5x to 55x, gemology, 30W 6V halogen transmitted, 1W LED incident illumination

Specifications:

Optics

• Eyepiece: 10 (WF 10/23)

• Magnification: 0.65-5.5 (zoom lens)

• Lamp type: Interchangeable halogen and LED lighting

• Lighting: Incident light and transmitted light

• Optical system: Greenough

Mechanics

• Type of build: Trinocular

• Working distance: 110 mm

• Viewing posture: 45° oblique viewing

Special features

• Dust cover bag: yes

General

• Width: 219 mm

• Length: 266 mm

• Series: Nexius GEM

• Matches the series: Nexius

Field of application

• Industry

• Education

Area of application

• Materials technology

• Mineralogy

• Metallurgy

• University

• Microbiology

• Gemology

This microscope is part of the Nexius GEM series and is compatible with the Nexius series. Its advanced features and versatile design make it suitable for a wide range of applications across various scientific, industrial, and educational fields, with a particular focus on gemology and materials analysis.
