Euromex NZ.1903-GEML, NexiusZoom, 6.7x to 45x, gemology , 30W 6V halogen transmitted, 1W LED incident illumination,trino (55616)

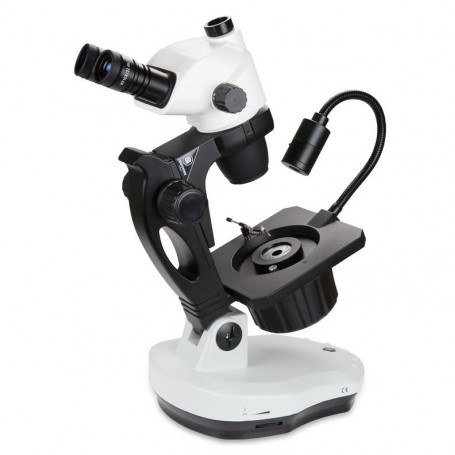

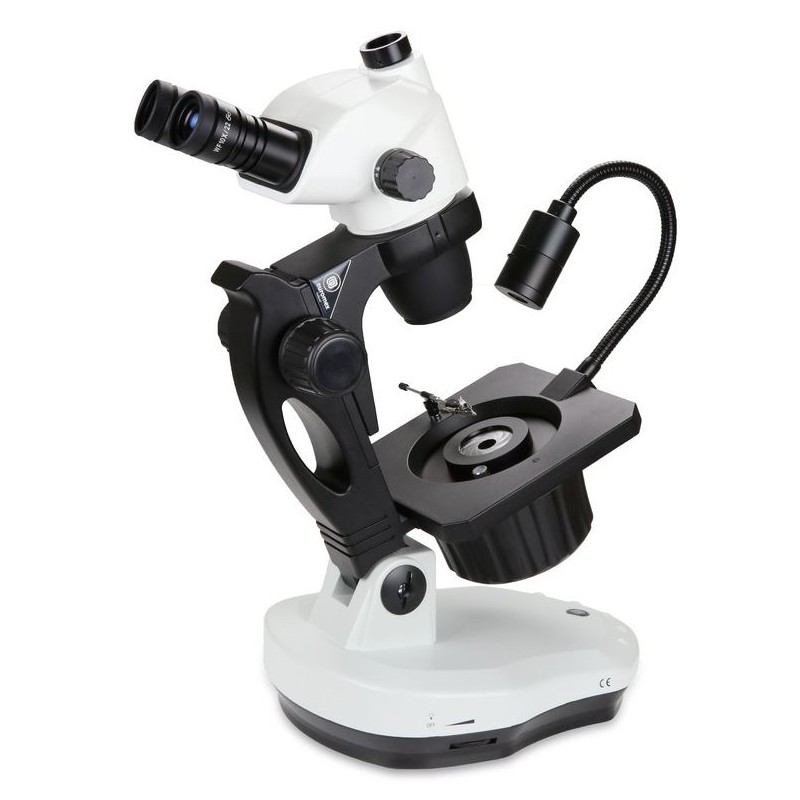

The Euromex NZ.1903-GEML NexiusZoom is a specialized trinocular stereomicroscope designed for gemology and related fields. It features a Greenough optical system with a zoom lens, offering magnification from 6.7x to 45x. This model is equipped with a combination of 30W 6V halogen transmitted light and 1W LED incident illumination, providing versatile lighting options for examining gemstones and other materials. The trinocular design allows for the attachment of a camera for documentation and analysis purposes.

Euromex NZ.1903-GEML, NexiusZoom, 6.7x to 45x, gemology, 30W 6V halogen transmitted, 1W LED incident illumination, trino

Specifications:

Optics

• Eyepiece: 10 (WF 10/22)

• Magnification: 6.7-45 (zoom lens)

• Lamp type: Interchangeable halogen and LED lighting

• Lighting: Incident light and transmitted light

• Optical system: Greenough

Mechanics

• Type of build: Trinocular

• Working distance: 110 mm

• Viewing posture: 45° oblique viewing

Special features

• Dust cover bag: yes

General

• Width: 219 mm

• Length: 266 mm

• Series: Nexius GEM

• Matches the series: Nexius

Field of application

• Industry

• Education

Area of application

• Materials technology

• Mineralogy

• Metallurgy

• University

• Microbiology

This microscope is part of the Nexius GEM series and is compatible with the Nexius line. Its advanced lighting options and precise optical capabilities make it ideal for gemological analysis as well as other professional applications in various scientific and industrial fields requiring high-quality imaging and magnification.
