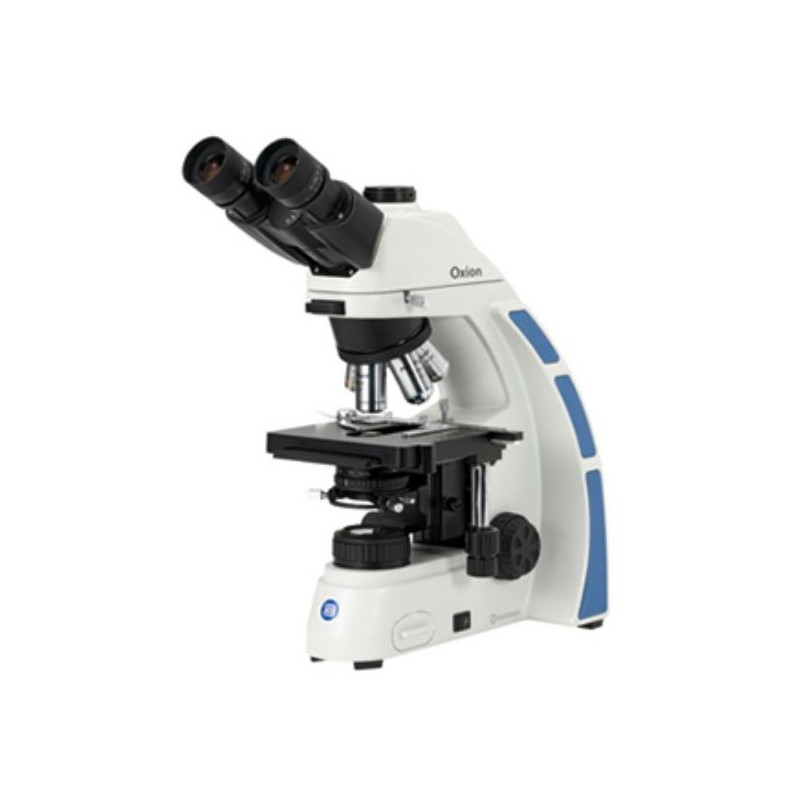

Euromex OX.3065 trinocular microscope (44139)

The Oxion series is a modern, robust, and high-quality microscope line developed for various life science applications. These microscopes are equipped with excellent optical and mechanical components, making them suitable for everyday use. The series offers excellent value for money due to special attention to production methods.

Key Features:

• High resolving power

• 3 Watt transmitted LED illumination

• 100 Watt Mercury fluorescence epi-illumination

• Multiple phase contrast and dark field options

• Optional Apochromatic objectives

Eyepieces and Objectives:

• Wide Field eyepieces HWF 10x / 22

• Semi Plan SMP objectives for bright field contrast

• Plan PL objectives for bright field contrast

• Plan Phase PLPH objectives for phase contrast

• Plan Semi-Apochromatic PL APO objectives for bright field contrast

• Plan Semi-Apochromatic PL APO FLUAREX objectives for fluorescence

Additional Features:

• Binocular with or without photo port

• Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders

• Various condenser options including Zernike phase and bright field disc condenser

• Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination

• Large stage with ball-bearing XY translation stage

• Adjustable 3 Watt LED illumination

• 100 Watt mercury vapor lamp for fluorescence

• Many fluorophore filter sets available

Model Variations:

• OX.3012 and OX.3015: Semi Plan IOS objectives for bright field applications

• OX.3020 to OX.3035: Plan IOS objectives for bright field applications

• OX.3040 to OX.3047: Plan Phase IOS objectives for phase contrast

• OX.3050 to OX.3065: Plan Semi-Apochromatic IOS objectives for bright field applications

• OX.3070 to OX.3085: Plan Semi-Apochromatic IOS objectives for fluorescence applications

• OX.3064: Plan IOS objectives and cardioid oil-immersion condenser for dark field applications

Specifications:

Optics

• Image scale: 40-1000

• Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm

• Lamp type: LED

• Eyepiece: 10/22

• Power supply: 85-240 V

• Magnification: 40-1000

• Lighting: Transmitted light

• Optical system: infinity

• Brightness control: adjustable

• Coating of optical system: Plan (Plan, semi-apochromatic, infinity corrected)

• Brightfield: yes

Mechanics

• Working distance: 45 mm

• Type of build: Trinocular

• Viewing posture: Siedentopf head, adjustable by 30° in the vertical axis. For 80/20 trinocular tube. Interpupillary distance adjustable from 50-75 mm.

• Focusing: Coarse and fine movement

• Specimen stage: Cross table

Special features

• Centering stage: yes

General

• Color: white / blue

• Weight: 10000 g

• Height: 397 mm

• Length: 294 mm

• Series: Oxion

Field of application

• Medicine: yes

• Veterinary medicine: yes

• Gynecology: yes
