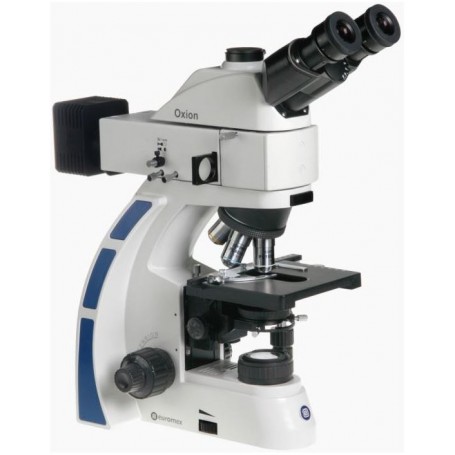

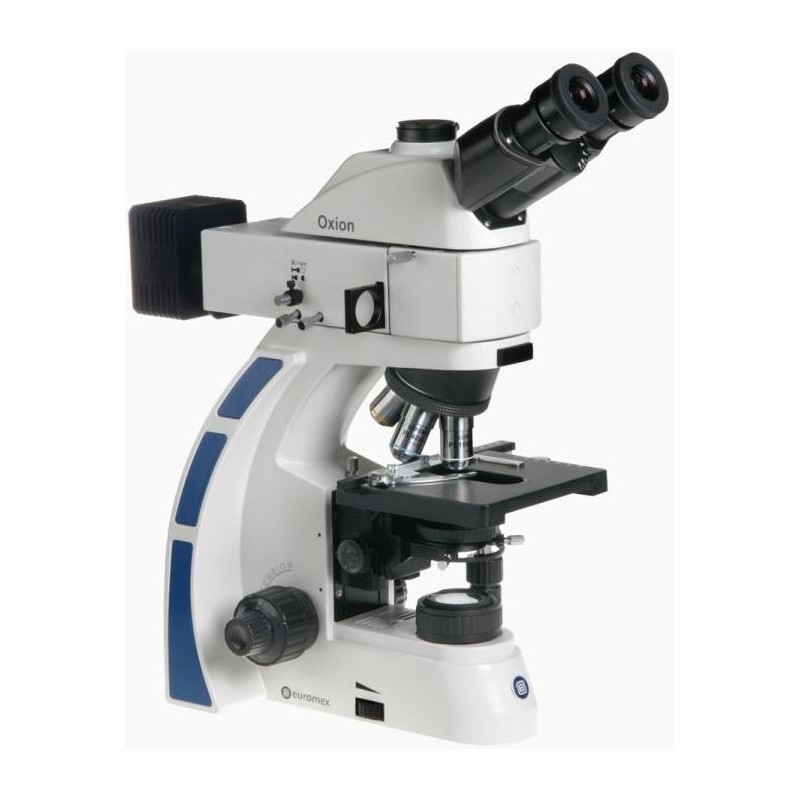

Euromex microscope OX.3240, bino (59972)

The Oxion series is a modern, robust, and high-quality microscope line developed for various life science applications. These microscopes are equipped with excellent optical and mechanical components, making them suitable for everyday use. The series offers excellent value for money due to special attention to production methods.

Key Features:

• High resolving power

• 3 Watt transmitted LED illumination

• 100 Watt Mercury fluorescence epi-illumination

• Multiple phase contrast and dark field options

• Optional Apochromatic objectives

Eyepieces and Objectives:

• Wide Field eyepieces HWF 10x / 22

• Various objective options for bright field, phase contrast, and fluorescence applications

Additional Features:

• Binocular with or without photo port

• Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders

• Various condenser options

• Large stage with ball-bearing XY translation stage

• Adjustable 3 Watt LED illumination

• 100 Watt mercury vapor lamp for fluorescence

• Many fluorophore filter sets available

Oxion for materials science OX.3245 Highlights:

• Binocular model

• HWF 10x/22 mm eyepieces

• Reversed quintuple nosepiece

• Plan M-IOS objectives

• Transmitted 3 W NeoLED™ illumination

• Reflected 3 W NeoLED™ illumination

• Polarization and analyzer filters

• 10 years warranty

Specifications:

Optics

• Image scale: 50-1000

• Condenser: NA 1.25 Abbe condenser focusable with iris diaphragm, height-adjustable

• Lamp type: LED

• Lens type: Plan, achromatic

• Eyepiece: 10 (HWF 10x/22mm)

• Power supply: 85-240 V

• Magnification: 40-1000 (50, 100, 500, 1000)

• Lighting: Incident light and transmitted light

• Optical system: infinity

• Objectives: 5x/0.14 LWD plan M-IOS, 10x/0.25 LWD plan M-IOS, 50x/0.55 plan semi apochromatic, 100x/0.80 plan semi apochromatic

Mechanics

• Working distance: 45 mm

• Type of build: binocular

• Viewing posture: Siedentopf head, adjustable by 30° in the vertical axis. For 80/20 trinocular tube. Interpupillary distance adjustable from 50-75 mm.

• Focusing: Coarse and fine movement

• Specimen stage: Cross table

Special features

• Filter holder: yes

• Luminous field diaphragm: yes

• Dust cover bag: yes

General

• Color: white / blue

• Weight: 9900 g

• Height: 397 mm

• Length: 294 mm

• Series: Oxion

Field of application

• Industry: yes

• Metallurgy: yes

• Mineralogy: yes

• Materials technology: yes
