Euromex Stereomikroskop SB.1302-P StereoBlue 1/3 Bino (64649)

Euromex BlueLine StereoBlue microscopes are high-quality instruments designed for laboratory and educational applications, making them ideal for use in universities and research facilities. These microscopes are widely used by biologists, entomologists, geologists, mechanical and electrical engineers, jewellers, and dental technicians. The StereoBlue series offers models with switchable dual magnification or zoom capabilities ranging from 3.5x to 135x. Illumination options include LED incident and transmitted light, ensuring versatility for various applications.

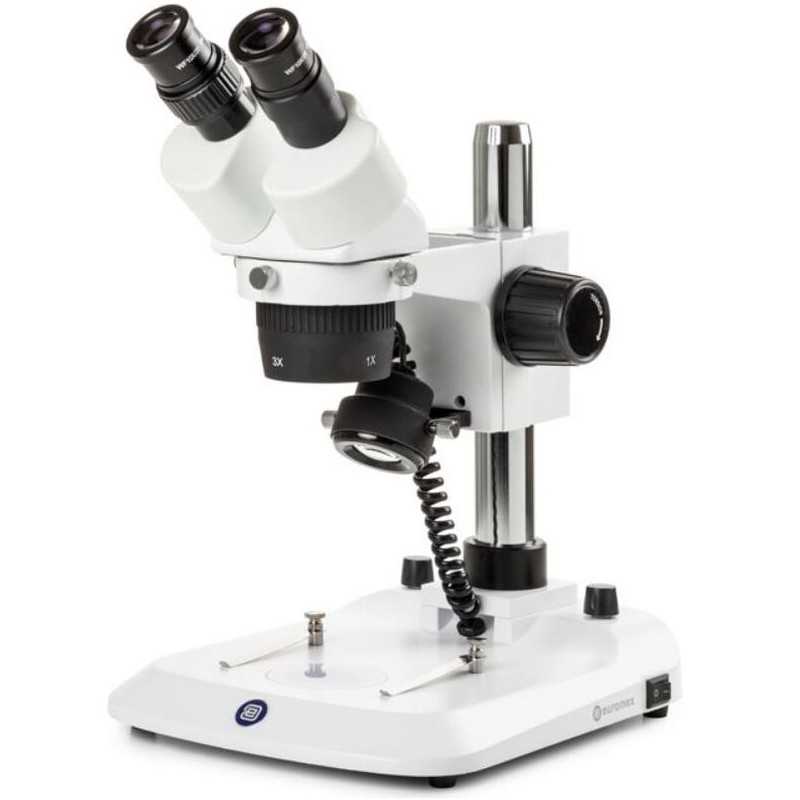

Stereoblue SB.1302-P

Eyepieces

• Type: Pair WF 10x/20 mm eyepieces

Head

• Design: Binocular or Trinocular with 45° inclined tubes

• Adjustments: Two diopter adjustments; interpupillary distance adjustable between 55 mm and 75 mm

• Optics: Anti-fungus treated optical parts

• Objectives: Dual magnification objectives (1x/3x revolving objectives)

• Magnifications: 10x/30x

• Field of views: 10 mm / 5.0 mm

• Working distance: 100 mm

Zoom Objective

• Type: Zoom Stereo 0.7x to 4.5x parafocal objective

• Magnifications: From 7x to 45x

• Field of views: 28.5 mm to 4.4 mm

• Working distance: 100 mm

Stand

• Type: Pillar stand with ergonomically designed base

• Material: Alloy metal cast, hardened off-white coated

• Features: Includes two object clamps

Focusing Adjustment

• Type: Coarse adjustment with tension control

Illumination

• Lighting Type: 3 W transmitted and incident LED illuminators

• Features: Both light intensities can be adjusted separately; simultaneous use available

Specifications

Optics

• Lighting: Incident light and transmitted light

• Lamp type: LED

• Eyepiece: WF 10x/20 mm

• Magnification: 30 (dual objectives: 1x, 3x)

Capacity

• Brightness control: Yes

Mechanics

• Working distance: 100 mm

• Viewing posture: 45° angled eyepiece

• Focusing type: Coarse movement

General

• Height: 330 mm

• Length: 266 mm

• Series: StereoBlue

Field of application

• Hobby: yes

• Education: yes

Area of application

• Collector: yes

The Stereoblue SB.1302-P is a versatile and reliable microscope suitable for hobbyists, educators, and professionals alike. Its ergonomic design, adjustable illumination, and high-quality optics make it ideal for a wide range of applications in laboratory and educational settings.
