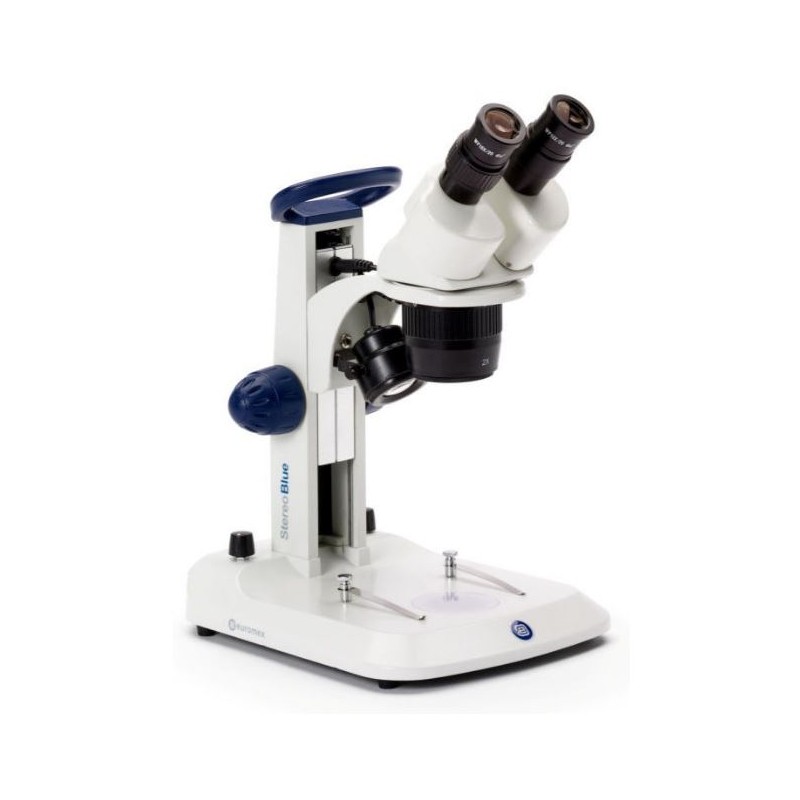

Euromex StereoBlue SB.1402, 2/4 stereo microscope (44675)

Euromex BlueLine offers a selection of high-quality stereo microscopes designed for laboratories, universities, and professional applications. The StereoBlue series is particularly popular among biologists, entomologists, geologists, engineers, jewellers, and dental technicians. These microscopes are available with switchable dual magnification or zoom capabilities ranging from 3.5x to 135x. Illumination options include LED incident and transmitted light, making them versatile for various uses.

Euromex StereoBlue SB.1402, 2/4 Stereo Microscope

Eyepieces

• Type: Pair WF 10x/20 mm eyepieces

Head

• Design: Binocular or Trinocular with 45° inclined tubes

• Adjustments: Two diopter adjustments; interpupillary distance adjustable between 55 mm and 75 mm

• Optics: Anti-fungus treated optical parts

• Objectives: Dual magnification objectives (2x/4x revolving objectives)

• Magnifications: 20x/40x

• Field of views: 10 mm / 5.0 mm

• Working distance: 100 mm

Zoom Objective

• Type: Zoom Stereo 0.7x to 4.5x parafocal objective

• Magnifications: From 7x to 45x

• Field of views: 28.5 mm to 4.4 mm

• Working distance: 100 mm

Stand

• Type: Pillar stand with ergonomically designed base

• Material: Alloy metal cast, hardened off-white coated

• Features: Includes two object clamps

Focusing Adjustment

• Type: Coarse adjustment with tension control

Illumination

• Lighting Type: 3 W transmitted and incident LED illuminators

• Features: Both light intensities can be adjusted separately; simultaneous use available

Specifications

Optics

• Lighting: Incident light and transmitted light

• Lamp type: LED

• Eyepiece: WF 10x/20 mm

• Magnification: Dual objectives: 20x/40x (2x, 4x)

Capacity

• Brightness control: Yes

Mechanics

• Working distance: 100 mm

• Viewing posture: 45° angled eyepiece

• Focusing type: Coarse movement

General

• Height: 315.5 mm

• Length: 266 mm

• Series: StereoBlue

Field of application

• Hobby: yes

• Education: yes

Area of application

• Collector: yes

• Parasite analysis: yes

• Maker: yes

The Euromex StereoBlue SB.1402 is a reliable and versatile stereo microscope ideal for educational, hobbyist, and professional use. Its ergonomic design, dual magnification options, and adjustable LED illumination make it suitable for a wide range of applications in laboratories and beyond.
