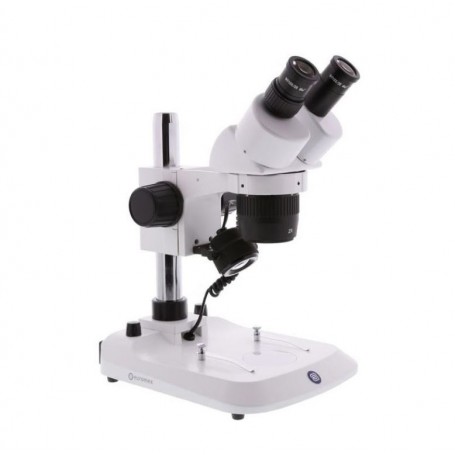

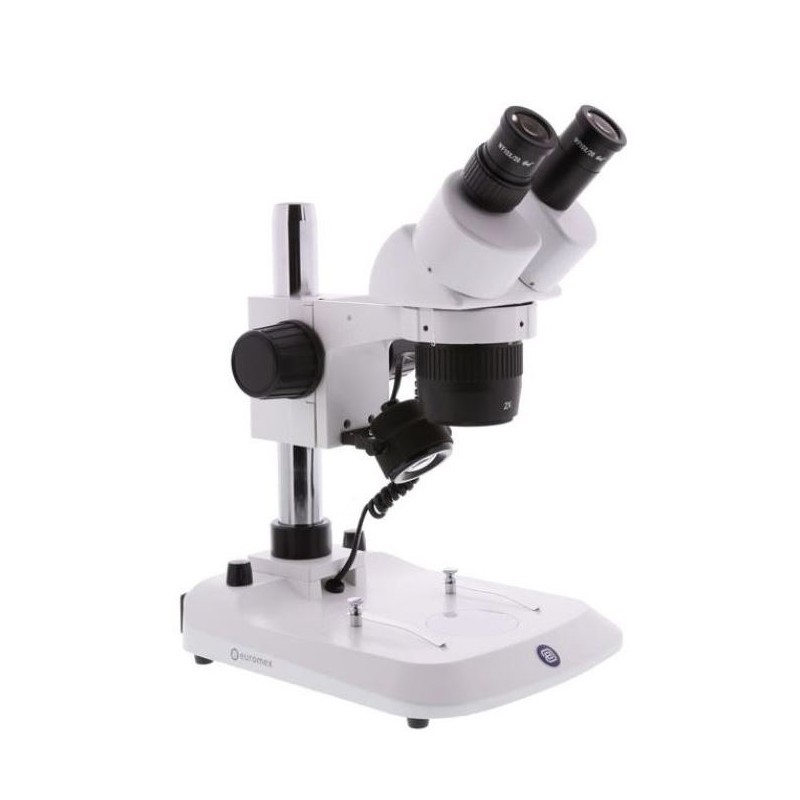

Euromex 2/4 SB-1402-P StereoBlue stereomicroscope (45838)

Euromex BlueLine offers a range of high-quality stereo microscopes that are specifically designed for laboratory and educational applications. These models are widely used in laboratories and universities and are popular among biologists, entomologists, geologists, engineers, jewellers, dental technicians, and other professionals. The StereoBlue series provides options with switchable dual magnification or zoom capabilities ranging from 3.5x to 135x. Illumination options include LED incident and transmitted light, making these microscopes versatile for various applications.

Stereoblue SB.1402-P

Eyepieces

• Type: Pair of WF 10x/20 mm eyepieces

Head

• Design: Binocular or Trinocular with 45° inclined tubes

• Adjustments: Two diopter adjustments; interpupillary distance adjustable between 55 mm and 75 mm

• Optics: Anti-fungus treated optical parts

• Objectives: Dual magnification objectives (2x/4x revolving objectives)

• Magnifications: 20x/40x

• Field of views: 10 mm / 5.0 mm

• Working distance: 100 mm

Zoom Objective

• Type: Zoom Stereo 0.7x to 4.5x parafocal objective

• Magnifications: From 7x to 45x

• Field of views: 28.5 mm to 4.4 mm

• Working distance: 100 mm

Stand

• Type: Pillar stand with ergonomically designed base

• Material: Alloy metal cast, hardened off-white coated

• Features: Includes two object clamps

Focusing Adjustment

• Type: Coarse adjustment with tension control

Illumination

• Lighting Type: 3 W transmitted and incident LED illuminators

• Features: Both light intensities can be adjusted separately; simultaneous use is possible

Specifications

Optics

• Lighting: Incident light and transmitted light

• Lamp type: LED

• Eyepiece: WF 10x/20 mm

• Magnification: Dual objectives: 20x/40x (2x, 4x)

Capacity

• Brightness control: Yes

Mechanics

• Working distance: 100 mm

• Type of build: Binocular

• Viewing posture: 45° angled eyepiece

• Focusing type: Coarse movement

General

• Height: 315.5 mm

• Length: 266 mm

• Series: StereoBlue

Field of application

• Hobby: yes

• Education: yes

Area of application

• Collector: yes

• Parasite analysis: yes

• Maker: yes

The Euromex StereoBlue SB.1402-P is a versatile stereo microscope designed for hobbyists, educators, and professionals alike. Its ergonomic design, dual magnification options, and adjustable LED illumination make it ideal for a wide range of applications in laboratories, educational settings, and creative industries.
