Euromex Camera CMEX-1, 1.3 MP, 1/2.5", CMOS, USB2.0 (47303)

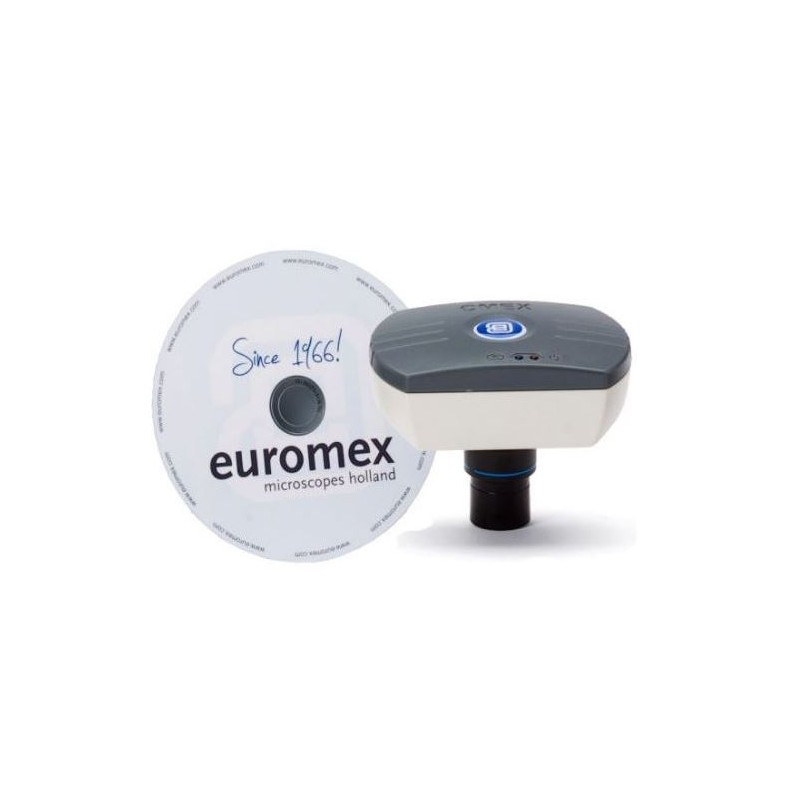

The Euromex CMEX-1 1.3 Mpix USB-2 CMOS camera and ImageFocus 4 analyzing software provide an ideal solution for modern digital microscopy in teaching, basic industrial applications, and for demanding amateurs. This camera is suitable for biological and metallurgical microscopes as well as stereomicroscopes.

1137.27 ₪
Tax included

924.61 ₪ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex CMEX-1 1.3 Mpix USB-2 CMOS camera and ImageFocus 4 analyzing software provide an ideal solution for modern digital microscopy in teaching, basic industrial applications, and for demanding amateurs. This camera is suitable for biological and metallurgical microscopes as well as stereomicroscopes.



Key Specifications:

Sensor and Image:

  • Sensor: 1/3" CMOS

  • Pixels: 1.3 megapixels

  • Output resolution: 1280 × 1024 pixels

  • Pixel Size: 3.6 µm × 3.6 µm

  • Color filter: RGB

  • Color depth: 24 bits

Performance:

  • Frame Rate: Up to 15 f/s at 1280 x 1024 pixels; up to 30 f/s at 640 x 480 pixels

  • Signal/Noise ratio: 55 db

  • Dynamic range: 72 db

  • Sensitivity: > 1.3 V/lux @ 550 nm

  • Exposure: Automatic or manual from 1 ms to 300 ms

Interface and Mounting:

  • Interface: High Speed USB 2.0 (480 Mb/s)

  • Mount: C/CS-mount

  • Fits standard 23.2 mm trinocular tube or eyepiece tube

Software and Compatibility:

  • Software: ImageFocus 4 (free download)

  • Compatible with Windows XP, Vista, 7, 8 (32 and 64-bit)

Package Includes:

  • 0.35x objective with C-mount

  • USB 2.0 cable

  • 30 and 30.5 mm adapters for stereomicroscopy

  • 76 x 24 mm calibration slide (1mm/100)

  • CDROM with ImageFocus 4 software

Physical Specifications:

  • Weight: 500 g

  • Dimensions: 81 mm (L) x 65 mm (W) x 78 mm (H)

This camera offers non-compressing real-time image data and is suitable for Bright Field, Dark Field, Phase Contrast, and Epi-illumination microscopy techniques.
