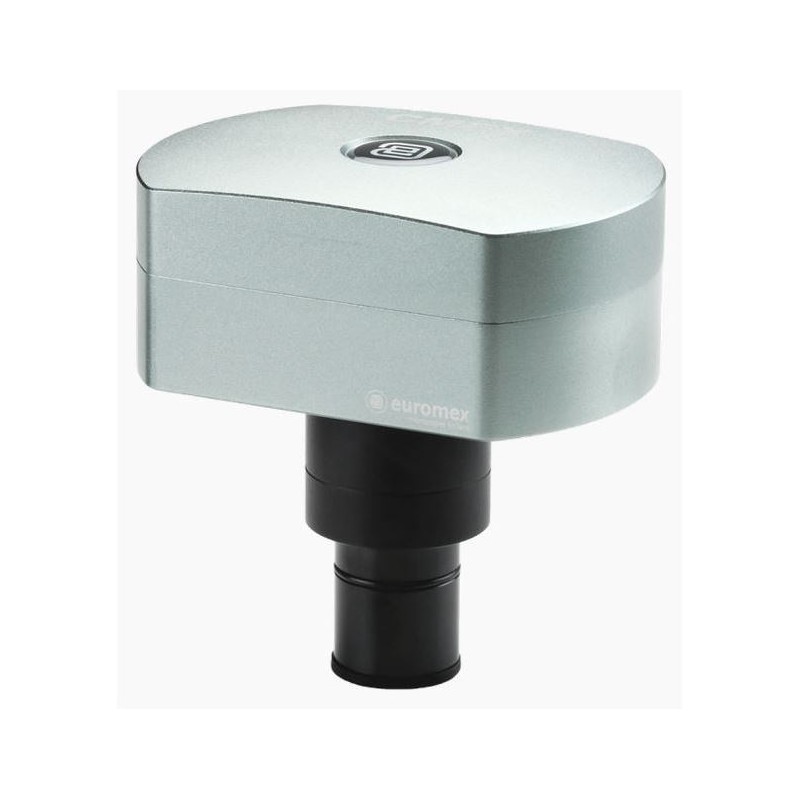

Euromex Camera CMEX-18 Pro, CMOS, 1/2.3 ", USB 3.0, 18.0 MP (56045)

The CMEX-18 Pro is part of the high-speed USB-3 camera series designed for educational, laboratory, and industrial microscopy needs. Compatible with Life Science, Material Science, and stereo microscopes, it offers advanced imaging capabilities with ImageFocus Alpha capture and analysis software.

Key Features:

• 18.0 MP CMOS sensor

• 12-bit grayscale conversion

• 24-bit color rendering

• USB-3 data interface for fast frame rates (up to 101 f/s)

• ImageFocus Alpha software for image capture, video recording, measurements, and annotations

Technical Specifications:

Sensor and Image:

• Sensor: CMOS 1/2.3 inch

• Resolution: 4912 x 3684 pixels, 18.0 MP

• Pixel size: 1.25 µm x 1.25 µm

• Color filter: RGB

• Scan mode: Progressive, rolling shutter

Performance:

• Max frame rates:

  • 8 fps at 4912 x 3684 pixels

  • 20 fps at 2546 x 1842 pixels

  • 34 fps at 1228 x 922 pixels

• Exposure: Automatic or manual

• White balance: Automatic/manual

• Dynamic range: 65 db

• S/N max: 42 db

Interface and Mounting:

• Mount: C-mount

• Data interface: USB 3.0 high speed 80 Mb/s

Operating Conditions:

• Temperature: 0 – 50°C

• Humidity: 30-80%

• Storage temperature: -20 to 60°C

Physical Specifications:

• Power supply: 5V over PC USB port

• Housing: Integrated CNC aluminum alloy

Package Includes:

• 0.5x objective with C-mount

• USB 3 cable

• 30 and 30.5 mm adapters for stereomicroscopes

• 76 x 24 mm calibration slide (1mm/100)

• CD ROM with ImageFocus Alpha software

Software and Compatibility:

• Software: ImageFocus Alpha capture and measuring software

• PC requirements: Intel Core 2, 2.8 GHz or higher, 2GB RAM, USB-3 port

• Operating systems: Windows XP (32-bit), Vista/7/8/10 (32 and 64-bit)

Product Number: DC.18000-Pro
