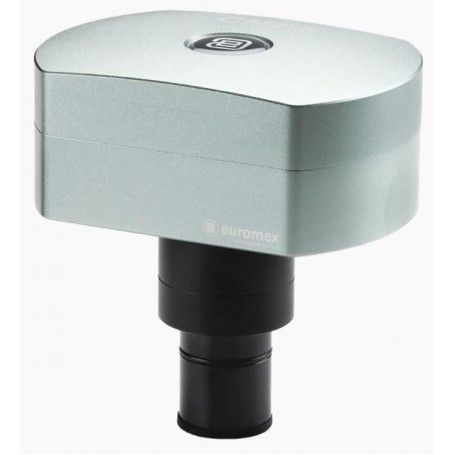

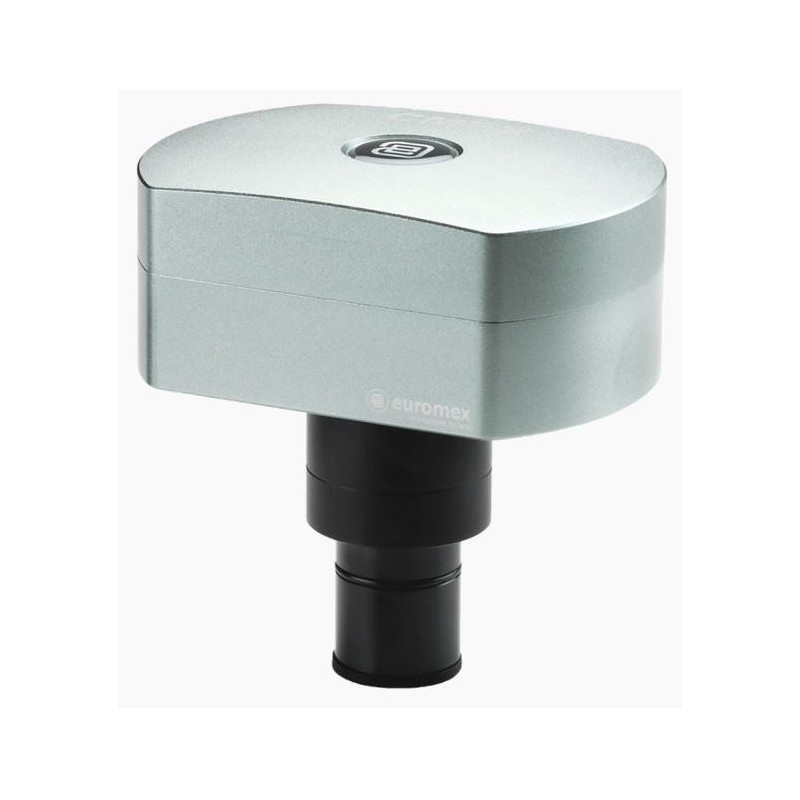

Euromex Camera CMEX-3 Pro, color, CMOS 1/3" , USB 3.0, 3.1 MP (56042)

The CMEX-3 Pro is part of the high-speed USB-3 camera series designed for educational, laboratory, and industrial microscopy needs. Compatible with Life Science, Material Science, and stereo microscopes, it offers advanced imaging capabilities with ImageFocus Alpha capture and analysis software.

6157.49 kr
Tax included

5006.09 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The CMEX-3 Pro is part of the high-speed USB-3 camera series designed for educational, laboratory, and industrial microscopy needs. Compatible with Life Science, Material Science, and stereo microscopes, it offers advanced imaging capabilities with ImageFocus Alpha capture and analysis software.



Key Features:

  • 3.1 MP CMOS sensor

  • 12-bit grayscale conversion

  • 24-bit color rendering

  • USB-3 data interface for fast frame rates

  • ImageFocus Alpha software for image capture, video recording, measurements, and annotations



Technical Specifications:

Sensor and Image:

  • Sensor: CMOS 1/3 inch

  • Resolution: 2048 x 1534 pixels, 3.1 MP

  • Pixel size: 2.2 µm x 2.2 µm

  • Color filter: RGB

  • Scan mode: Progressive, rolling shutter

Performance:

  • Max frame rates:

    • 27 fps at 2048 x 1534 pixels

    • 53 fps at 1024 x 770 pixels

  • Exposure: Automatic or manual, 0.1 ms to 2000 ms

  • White balance: Automatic or manual

  • Dynamic range: 100 dB

  • S/N max: 39 dB

  • Sensitivity to light: 1.9 V/lux sec

Interface and Mounting:

  • Mount: C-mount

  • Data interface: USB 3.0 high speed

Operating Conditions:

  • Temperature: -10 to 50°C

  • Humidity: 30-80%

  • Storage temperature: -20 to 60°C

Physical Specifications:

  • Power supply: 5V over PC USB port

  • Housing: Integrated CNC aluminum alloy

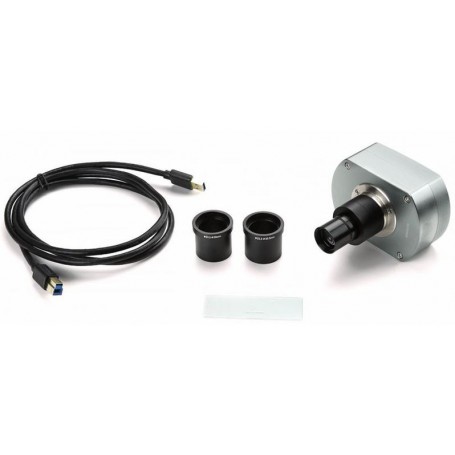

Package Includes:

  • 0.37x objective with C-mount

  • USB 3 cable

  • 30 and 30.5 mm adapters for stereomicroscopes

  • 76 x 24 mm calibration slide (1mm/100)

  • CD ROM with ImageFocus Alpha software

Software and Compatibility:

  • Software: ImageFocus Alpha capture and measuring software

  • PC requirements: Intel Core 2, 2.8 GHz or higher, 2GB RAM, USB-3 port

  • Operating systems: Windows XP (32-bit), Vista/7/8/10 (32 and 64-bit)

Product Number: DC.3000-Pro
