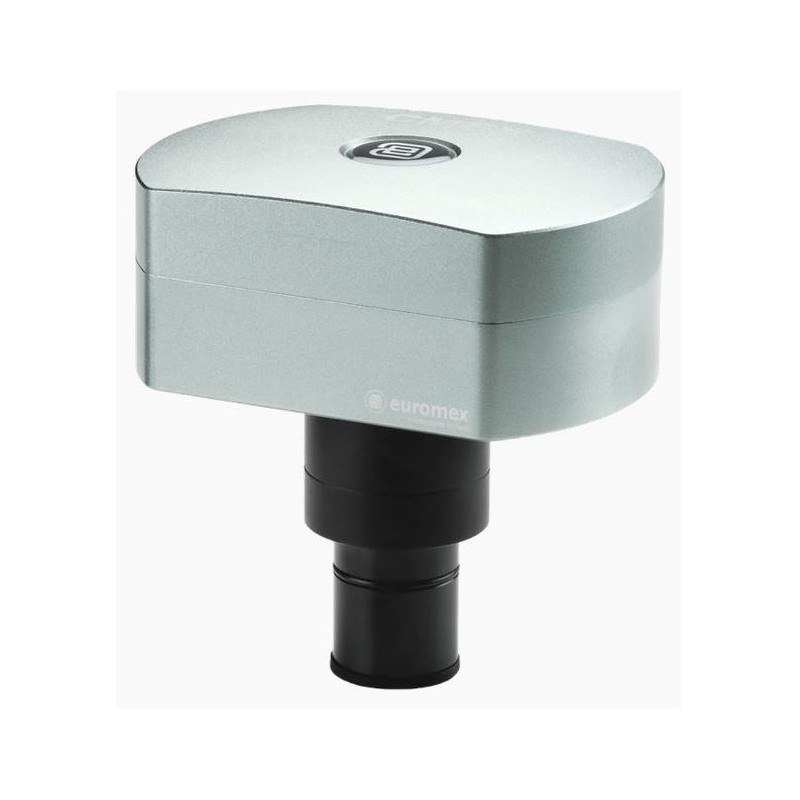

Euromex Camera CMEX-5 Pro, CMOS 1/2.5" , USB 3.0, 5.0 MP (56043)

The CMEX-5 Pro is part of the high-speed USB-3 camera series designed for educational, laboratory, and industrial microscopy needs. Compatible with Life Science, Material Science, and stereo microscopes, this camera delivers advanced imaging capabilities with ImageFocus Alpha capture and analysis software. It is equipped with a 5.1 MP CMOS sensor and supports fast frame rates, making it ideal for capturing high-quality images and videos.

Key Features:

• 5.1 MP CMOS sensor

• 12-bit grayscale conversion

• 24-bit color rendering

• USB 3.0 data interface for fast frame rates

• ImageFocus Alpha software for image capture, video recording, measurements, and annotations

Technical Specifications:

Sensor and Image:

• Sensor: CMOS 1/2.5 inch

• Resolution: 2560 x 1922 pixels (photograph), 1280 x 960 pixels (video)

• Pixel size: 2.2 µm x 2.2 µm

• Color filter: RGB

• Scan mode: Progressive, rolling shutter

Performance:

• Max frame rates:

  • 14 fps at 2560 x 1922 pixels

  • 39 fps at 1280 x 960 pixels

  • 101 fps at 640 x 480 pixels

• Exposure: Automatic or manual

• White balance: Automatic or manual

• Dynamic range: 68 dB

• S/N max: 38.5 dB

• Sensitivity to light: 1.76 V/lux sec

Interface and Mounting:

• Mount: C-mount

• Data interface: USB 3.0 high speed

Operating Conditions:

• Temperature: -10 to 50°C

• Humidity: 30–80%

• Storage temperature: -20 to 60°C

Physical Specifications:

• Power supply: 5V over PC USB port

• Housing: Integrated CNC aluminum alloy

Package Includes:

• 0.5x objective with C-mount

• USB 3 cable

• Adapters (30 mm and 30.5 mm) for stereomicroscopes

• Calibration slide (76 x 24 mm, 1mm/100)

• CD-ROM with ImageFocus Alpha software

Software and Compatibility:

• Software: ImageFocus Alpha capture and measuring software

• PC requirements: Intel Core 2, 2.8 GHz or higher, 2GB RAM, USB-3 port

• Operating systems supported: Windows XP (32-bit), Vista/7/8/10 (32 and 64-bit configurations), Mac OS

Product Number: DC.5000-Pro
