Euromex Camera DC.20000i, color, CMOS, 1", 20 M, USB 3, cooled (65778)

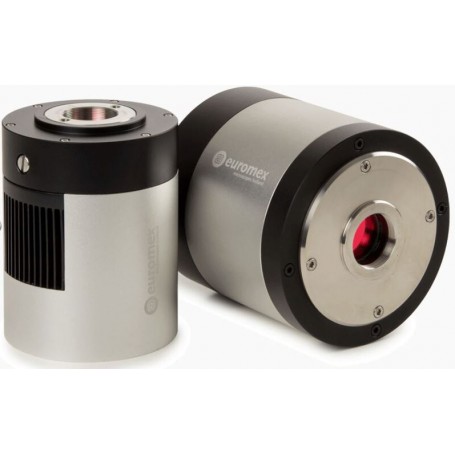

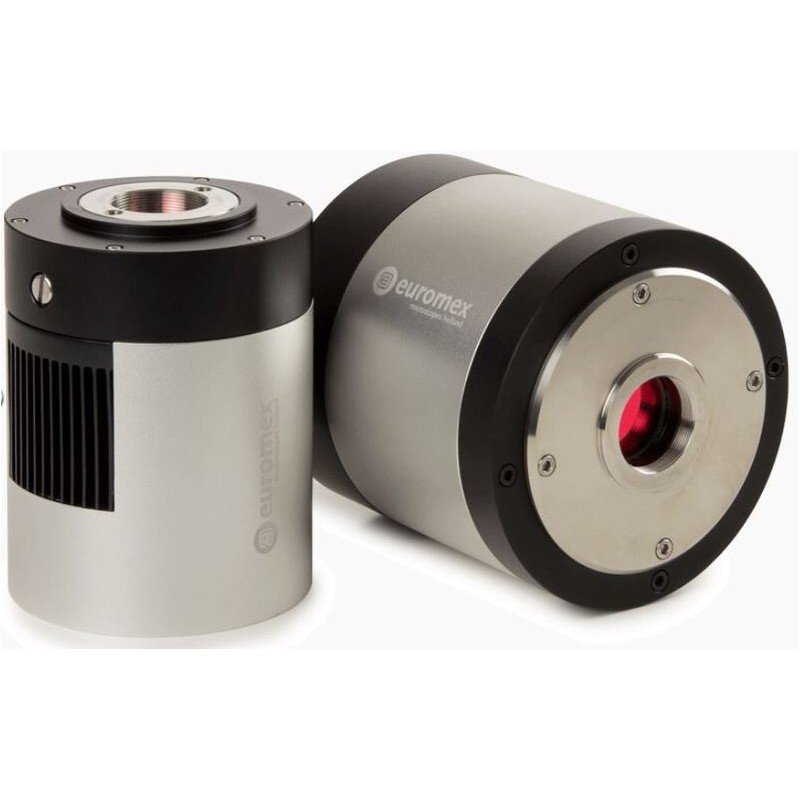

The Euromex DC.20000i is an advanced 20 Megapixel Peltier cooled camera designed for high-performance microscopy, particularly in fluorescence and low-light applications. This premium model features a large CMOS sensor, powerful cooling system, and USB-3 interface for capturing exceptional quality images in challenging conditions.

3110.09 $
Tax included

2528.53 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex DC.20000i is an advanced 20 Megapixel Peltier cooled camera designed for high-performance microscopy, particularly in fluorescence and low-light applications. This premium model features a large CMOS sensor, powerful cooling system, and USB-3 interface for capturing exceptional quality images in challenging conditions.

This camera is ideal for researchers and professionals requiring the highest image quality in fluorescence microscopy and other demanding low-light applications. Its large sensor, advanced cooling system, and versatile software make it a powerful tool for capturing detailed, low-noise images in various scientific and industrial settings.

Key Features:

  • 20 Megapixel CMOS sensor (1 inch)

  • Two-stage Peltier cooling system

  • USB-3 interface (USB-2 compatible)

  • ImageFocus Alpha software included



Technical Specifications:

Sensor and Image:

  • Sensor: 1" Peltier cooled CMOS

  • Resolution: 5440 x 3648 pixels (photograph), 1824 x 1216 pixels (video)

  • Pixel size: 2.4 μm x 2.4 μm

  • Color filter: RGB

Performance:

  • Frame rates:

    • 5 fps at 5440 x 3648 pixels

    • 10 fps at 4096 x 2160 pixels

    • 15 fps at 2736 x 1824 pixels

    • 30 fps at 1824 x 1216 pixels

  • Exposure: Automatic or manual, 0.1 ms to 3600 s

  • Sensitivity: 462 mV @ 1/30 s

  • Shutter type: Rolling shutter

Cooling System:

  • Two-stage active-cooling system

  • Up to 45°C below camera body temperature

Interface and Power:

  • USB 3.0 high speed

  • Power: 5V over PC USB port

  • External power adapter for cooling (DC 12V, 3A)

Operating Conditions:

  • Temperature: -10 to 50°C

  • Humidity: 30-80%

  • Storage temperature: -20 to 60°C

Software:

  • ImageFocus Alpha software included

Package Includes:

  • USB-3 cable

  • 1x C-mount objective

  • 30.0 and 30.5 mm to 23.2 mm conversion adapters

  • 1 mm/100 (10 μm/division) calibration slide

  • External 100-240 Vac power supply

  • Carrying case

Compatibility:

  • Operating systems: Windows 7, 8, and 10 (32 and 64-bit)

Product Information:

  • Model number: DC.20000i

  • Supplier product number: VC.3038

  • Series: DC
