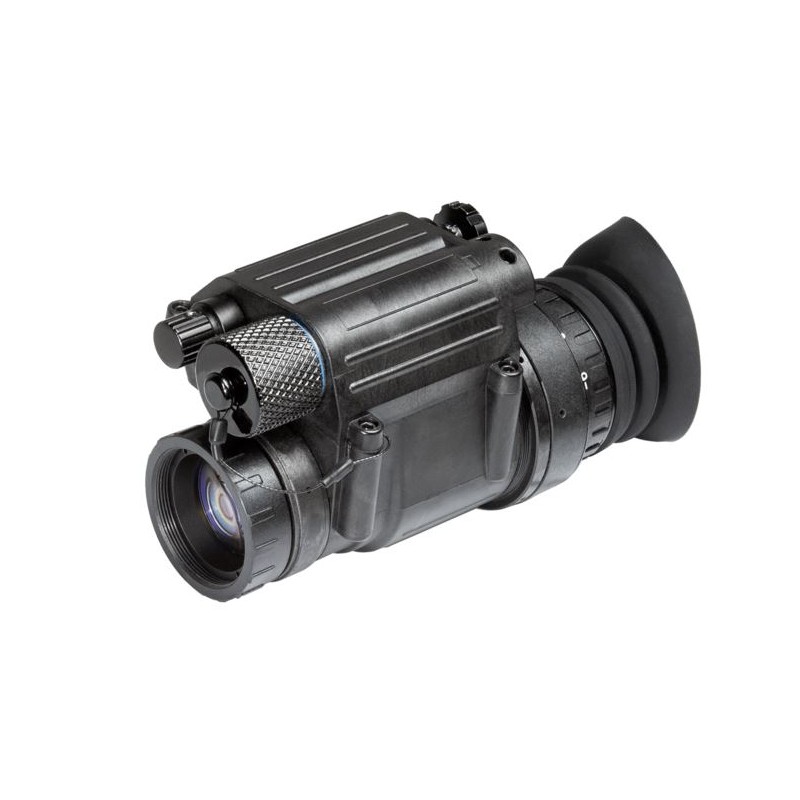

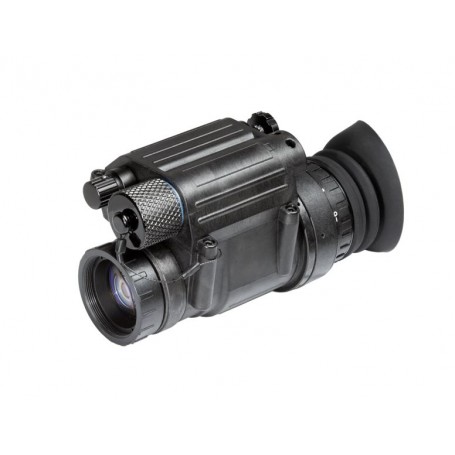

AGM PVS-14L NL1 Night Vision Monocular (11PL41284153011)

The AGM PVS-14L is a lighter and more compact version of the proven PVS-14 night vision system. This rugged, lightweight, and multi-purpose device is designed for use in challenging environments. It can function as a handheld monocular or be mounted on the included head harness for hands-free operation. The PVS-14L features a smaller lens and eyepiece, reducing its overall dimensions and weight.

3013.50 $
Tax included

2450 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM PVS-14L is a lighter and more compact version of the proven PVS-14 night vision system. This rugged, lightweight, and multi-purpose device is designed for use in challenging environments. It can function as a handheld monocular or be mounted on the included head harness for hands-free operation. The PVS-14L features a smaller lens and eyepiece, reducing its overall dimensions and weight. Key features include manual gain control, an automatic bright light shut-off system to protect the photocathode tube, and a built-in Infrared (IR) illuminator. The device automatically resumes operation when light levels drop below the threshold. Backed by a 3-year warranty, the PVS-14L reflects AGM Global Vision's dedication to quality.

Key Features:

  • Compact and lightweight design: 4.25 inches (108 mm) in length and 10.2 oz (290 g) in weight.

  • Rugged construction with waterproof capabilities.

  • Hands-free usability via head mounting.

  • Manual gain control for brightness adjustment.

  • Built-in Infrared illuminator for enhanced visibility in complete darkness.

  • Ergonomic and user-friendly controls.

  • Automatic bright light shut-off to protect internal components.

  • 3-year warranty.



Package Contents:

  • Night Vision Monocular

  • Head Mount Assembly

  • Brow Pad

  • Eye Cup

  • Head Mount Adapter

  • System Soft Carrying Case

  • Daylight Filter

  • Shoulder Strap

  • Lens Paper

  • Diopter Lens Cap

  • Sacrificial Window

  • Demist Shield

  • Manual

  • Battery

  • Hard Case





Specifications:

  • Image Intensifier Tube: Gen 2+ NL1 Green

  • Resolution: 64 lp/mm

  • FOM: 1400

  • Magnification: 1x

  • Lens System: 26 mm; F/1.2

  • Field of View (FOV): 40°

  • Focus Range: 0.25 m to infinity

  • Diopter Adjustment: -6 to +2 diopters

  • LED Indicators in FOV: Low Battery, IR On, Excessive Light Conditions

  • Manual Gain Control: Yes

  • Bright Light Cut-Off: Yes

  • Infrared Illuminator: Yes

  • Battery Type: One AA Alkaline battery

  • Battery Life: Up to 40 hours at 20°C (68°F)

  • Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)

  • Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)

  • Weight: 290 g (10.2 oz)

  • Dimensions (without lens cap and eyecup): 108 × 63 × 69 mm (4.25 × 2.5 × 2.7 inches)

This compact and versatile night vision monocular is ideal for both professional and recreational use, offering reliable performance in demanding conditions.
