AGM UNVG NL1 Dual Tube Night Vision Goggle/Binocular (12UN41284153011)

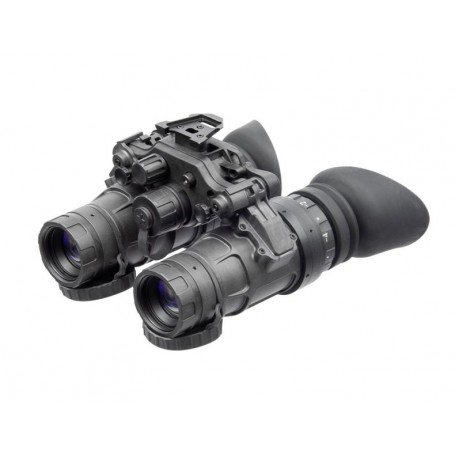

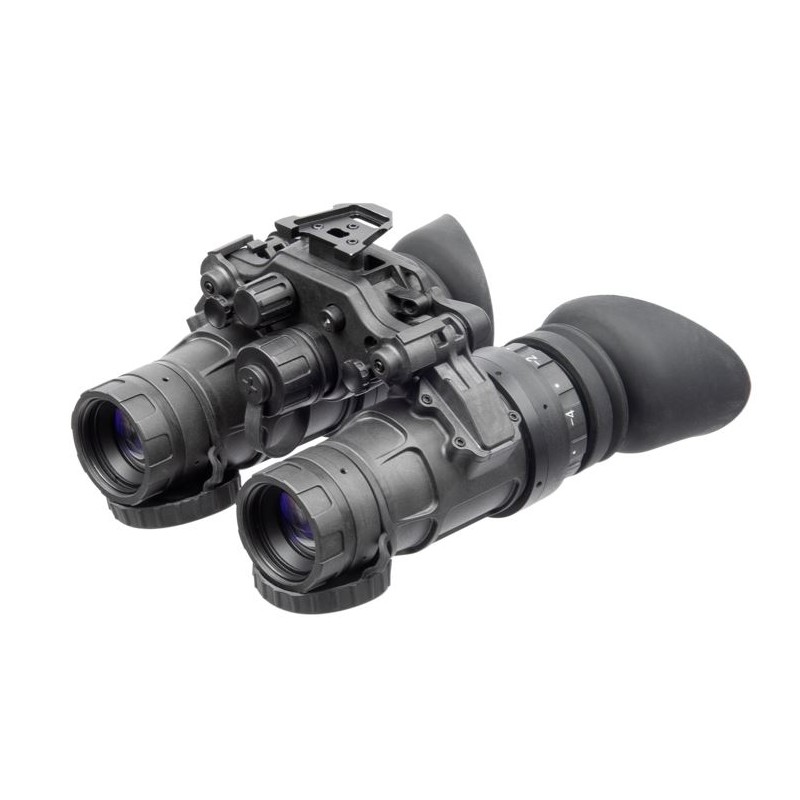

The AGM UNVG is a sophisticated dual-channel night vision system designed for durability and performance. It features advanced multi-coated optics housed in a compact composite structure. The device is available with either Gen 2+ or Gen 3 high-performance image intensifier tubes (IIT).

6519.00 $
Tax included

5300 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM UNVG is a sophisticated dual-channel night vision system designed for durability and performance. It features advanced multi-coated optics housed in a compact composite structure. The device is available with either Gen 2+ or Gen 3 high-performance image intensifier tubes (IIT).

Key Features:

  • Bright Light Protection: Automatic cut-off feature safeguards the high-quality photocathode tube.

  • Manual Gain Control: Allows adjustment of image brightness for optimal quality in varying light conditions.

  • Flexible Configuration: Independent pod movement enables single or dual eye setups.

  • Auto Power-Off: Each tube automatically turns off when flipped up.

  • Extended Battery Life: Operates up to 15 hours on a single AA alkaline battery, or up to 60 hours with the included external battery pack.

  • Built-in IR Illuminator: Enables reading in complete darkness.

  • Mounting Versatility: Compatible with standard dovetail type headsets and helmet mounts.

Additional Features:

  • Low power consumption design

  • Corrosion and impact-resistant housing with matte black PEEK+Glass fiber material

  • Quick attachment dovetail base

  • PVS-14-style compatibility for objective and eyepiece lenses

  • Ultralight housing (17.6 oz / 500 g) for improved mobility and reduced fatigue

  • Improved IP Stop design for customizable tube positioning



Package Includes:
Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shields (2), Sacrificial Windows (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery





Specifications:

  • Image Intensifier Tube: Gen 2+ "Level 1" (green phosphor tube)

  • Resolution: 64 lp/mm

  • Magnification: 1x

  • Lens System: 25mm, F/1.23

  • Field of View: 40°

  • Exit Pupil Diameter: 14 mm

  • Focus Range: 0.25 m to Infinity

  • Diopter Adjustment: -6 to +2 diopters

  • Interpupillary Distance: 56 to 72 mm

  • Eye Relief: 25mm

  • Manual Gain Control: Yes

  • Bright Light Cut-Off: Yes

  • Infrared Illuminator: Yes

  • Battery Type: One AA (1.5 V) or External Battery Pack (four AA or two CR123A)

  • Battery Life (at 20°C, IR off):

    • One AA: up to 15 hours

    • External Battery Pack (four AA): up to 60 hours

    • External Battery Pack (two CR123A): up to 40 hours

  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)

  • Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)

  • Protection Level: IP67

  • Weight (without batteries):

    • Goggles: 500 g (1.1 lb)

    • External Battery Pack: 250 g (0.55 lb)

  • Overall Dimensions: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
