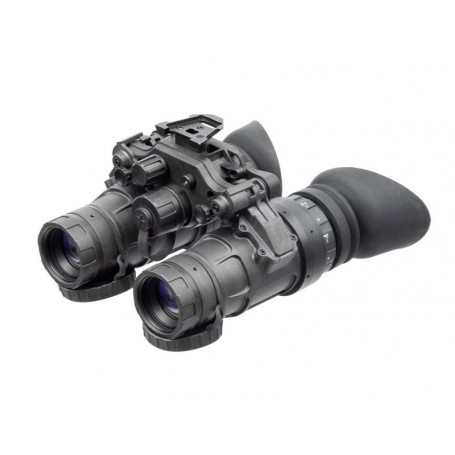

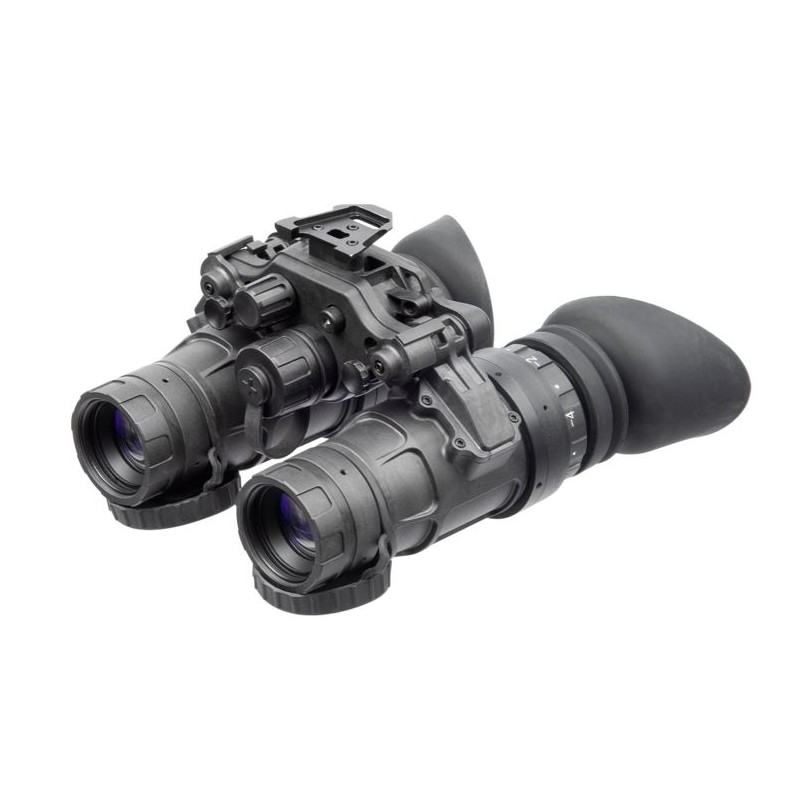

AGM UNVG APW Dual Tube Night Vision Goggle/Binocular (12UN41284124111)
The AGM UNVG is a sophisticated dual-channel night vision system featuring advanced multi-coated optics in a durable, compact composite housing. This versatile device offers exceptional performance in challenging low-light conditions, equipped with an Advance Performance Auto-Gated Gen 2+ P45-White Phosphor Image Intensifier Tube (IIT).
8250 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The AGM UNVG is a sophisticated dual-channel night vision system featuring advanced multi-coated optics in a durable, compact composite housing. This versatile device offers exceptional performance in challenging low-light conditions, equipped with an Advance Performance Auto-Gated Gen 2+ P45-White Phosphor Image Intensifier Tube (IIT).
Key Features:
-
Bright Light Protection: Automatic cut-off safeguards the high-quality photocathode tube.
-
Manual Gain Control: Adjusts image brightness for optimal quality in varying light conditions.
-
Flexible Configuration: Independent pod movement allows single or dual eye setups.
-
Auto Power-Off: Each tube automatically turns off when flipped up.
-
Extended Battery Life: Up to 15 hours on a single AA battery, or 60 hours with the external battery pack.
-
Built-in IR Illuminator: Enables visibility in total darkness.
-
Mounting Versatility: Compatible with standard dovetail type headsets and helmet mounts.
Additional Features:
-
Low power consumption design
-
Corrosion and impact-resistant PEEK+Glass fiber housing with matte black finish
-
Quick attachment dovetail base
-
PVS-14-style compatibility for lenses and attachments
-
Ultralight design (17.6 oz / 500 g) for improved mobility and reduced fatigue
-
Improved IP Stop design for customizable tube positioning
Package Includes:
Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shields (2), Sacrificial Windows (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery
Specifications:
-
Image Intensifier Tube: Advance Performance Auto-Gated Gen 2+ P45-White Phosphor IIT
-
Resolution: 64 lp/mm
-
Magnification: 1x
-
Lens System: 25mm, F/1.23
-
Field of View: 40°
-
Exit Pupil Diameter: 14 mm
-
Focus Range: 0.25 m to Infinity
-
Diopter Adjustment: -6 to +2 diopters
-
Interpupillary Distance: 56 to 72 mm
-
Eye Relief: 25mm
-
Manual Gain Control: Yes
-
Bright Light Cut-Off: Yes
-
Infrared Illuminator: Yes
-
Battery Type: One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
-
Battery Life (at 20°C, IR off):
-
One AA: up to 15 hours
-
External Battery Pack (four AA): up to 60 hours
-
External Battery Pack (two CR123A): up to 40 hours
-
-
Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
-
Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
-
Protection Level: IP67
-
Weight (without batteries):
-
Goggles: 500 g (1.1 lb)
-
External Battery Pack: 250 g (0.55 lb)
-
-
Overall Dimensions: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
Data sheet
