AGM Foxbat-8X NL1 "HR" Night Vision Bi-Ocular (13F8P822153211HR)

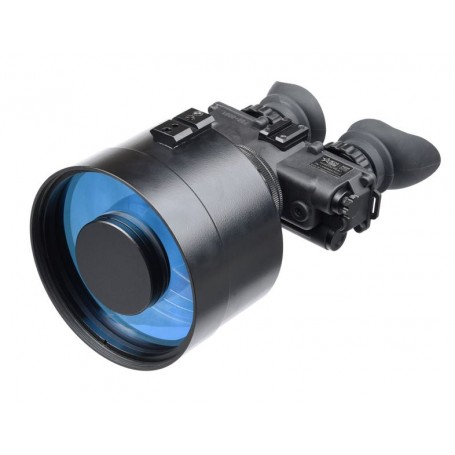

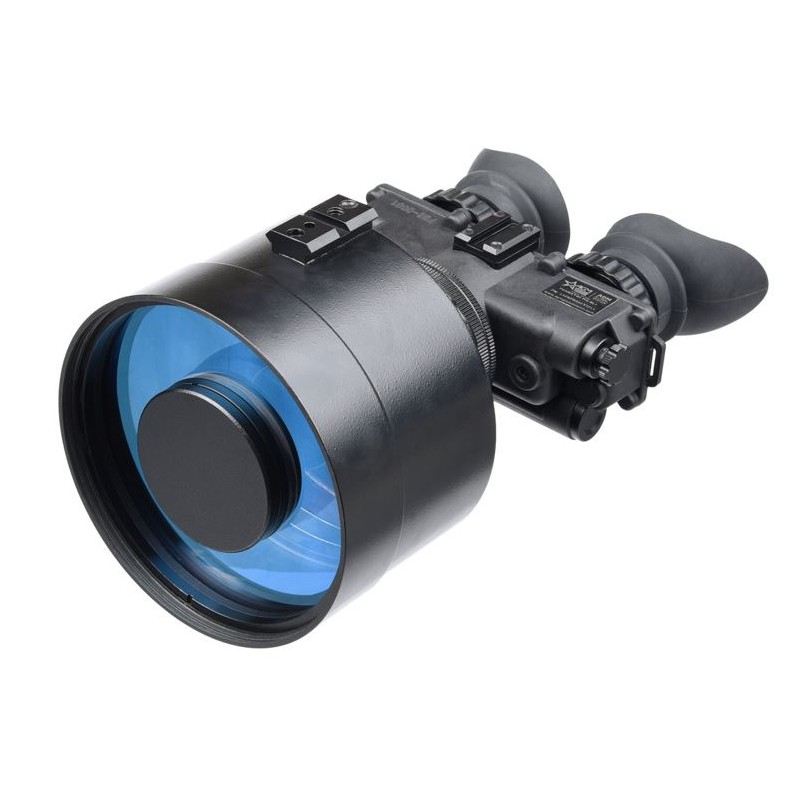

The AGM FoxBat-8 is a high-performance night vision bi-ocular designed for long-range observation. It features a compact catadioptric objective lens, a single high-quality image intensifier tube with an image beam splitter, double eyepiece, and reliable electronics.

4935.68 $
Tax included

4012.75 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM FoxBat-8 is a high-performance night vision bi-ocular designed for long-range observation. It features a compact catadioptric objective lens, a single high-quality image intensifier tube with an image beam splitter, double eyepiece, and reliable electronics.

Key Features:

  • 8x magnification

  • IP67 protection level

  • Super-fast, multi-coated, all-glass optics

  • Dual eye viewing system for comfortable long-term use

  • Rugged and versatile design

  • Water and fog resistant

  • Ergonomic and user-friendly controls

  • Detachable long-range IR illuminator

  • Tripod mountable

  • 3-year warranty

The FoxBat-8 is ideal for border security, base perimeter observation, drug interdiction, intelligence collection, and recreational use. It offers crystal-clear images and professional-grade optics, with a tripod mounting option to reduce user fatigue during extended viewing sessions.

Built around a Gen 2+ or Gen 3 high-performance image intensifier tube, the FoxBat-8 includes a high-light shut-off feature to protect the tube from over-exposure. It operates on two AA batteries or one Lithium (BA-5567/U) battery, providing up to 40 hours of continuous use.



Package Includes:
Detachable IR Illuminator, Tripod, User Manual, Lens Cloth, Hard Case





Specifications:

  • Image Intensifier Tube: High Resolution Gen 2+ Image Intensifier Tube

  • Photocathode luminous sensitivity: 550-750 μA/lm

  • Radiant Sensitivity @ 830 nm: 50-53 mA/W

  • Luminous gain: 25000-33000 (relative units)

  • Resolution: 60-68 lp/mm

  • Magnification: 8x

  • Lens System: 216 mm; F/1.8

  • Field of View: 4.5°

  • Focus Range: 10 m to infinity

  • Diopter Adjustment: -5 to +5 diopters

  • LED Indicators: Low Battery, Excessive Light Conditions

  • Automatic Brightness Control: Yes

  • Bright Light Cut-Off: Yes

  • Infrared Illuminator: Detachable long-range IR illuminator

  • Battery Type: Two 1.5V AA batteries or 1 Lithium (BA-5567/U)

  • Battery Life: Up to 40 hours

  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)

  • Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)

  • Weight: 1.76 kg (3.9 lb)

  • Overall Dimensions: 215 × 155 × 146 mm (8.5 × 6.1 × 5.7 in)
