Euromex Camera EduPad-5, 5MP, USB2, 8 inch Tablet (60726)

The Euromex CMEX-5 digital camera, paired with ImageFocus 4 analyzing software, offers a comprehensive solution for modern digital microscopy. This system is ideal for educational purposes, basic industrial and life science applications, and for demanding amateur users. It is compatible with biological and metallurgical microscopes, as well as stereomicroscopes.

Camera Specifications:

• Sensor: 1/2.5" CMOS

• Resolution: 5 megapixels (2592 x 1944 pixels)

• Pixel Size: 2.2 µm x 2.2 µm

• Color Filter: RGB

• Mount: C/CS-mount

• ADC: 10 bits

• Color Depth: 24 bits

• Signal/Noise Ratio: 42 dB

• Dynamic Range: 65 dB

• Sensitivity: > 1.3 V/lux @ 550 nm

• Exposure: Automatic or manual (1 ms to 800 ms)

• Interface: High Speed USB 2.0 (480 Mb/s)

Frame Rates:

• 2592 x 1944 pixels: Up to 5 fps

• 1280 x 960 pixels: Up to 21 fps

• 1024 x 768 pixels: Up to 25 fps

• 640 x 480 pixels: Up to 38 fps

The camera offers non-compressing real-time image data and is suitable for various microscopy techniques, including Bright Field, Dark Field, Phase Contrast, and Epi-illumination. It fits a standard 23.2 mm trinocular tube or eyepiece tube.

Package Contents:

• 0.5x objective with C-mount

• USB 2.0 cable

• 30 and 30.5 mm adapters for stereomicroscopy

• 76 x 24 mm calibration slide (1mm/100)

• CD-ROM with ImageFocus 4 software

Software Compatibility:

• ImageFocus 4 (free download)

• Compatible with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3, and Euromex cooled CCD color camera captured images

• Supports Microsoft Windows XP, Vista, 7, and 8 (32 and 64-bit versions)

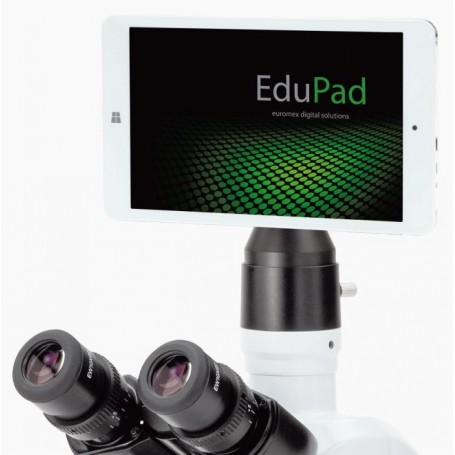

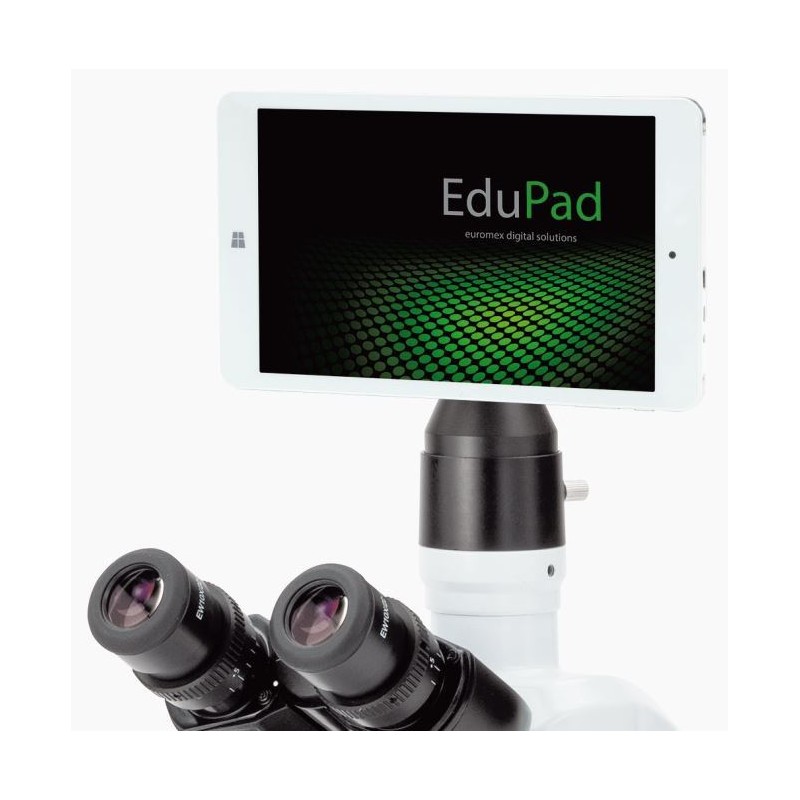

EduPad Tablet 8" (EP.1300c) with Microscope Camera

The EduPad tablet offers an integrated solution for digital microscopy, featuring:

• 8" touchscreen display (1280 x 800 pixels)

• Full Windows 10 Home operating system

• ImageFocus 4 capture software (ImageFocus Alpha for WiFi version)

• Detachable tablet design for flexible use

Technical Specifications:

• Processor: Quad Core 1.33 GHz with HD graphics

• Screen: 1920 x 1200 touchscreen, 16:10 aspect ratio, LED backlight

• Memory: 2 GB DDR3 RAM

• Storage: 32 GB flash SSD, expandable via Micro SD/SDHC (up to 64 GB)

• Cameras: Front and rear webcams

• Connectivity: USB-C, Wi-Fi 802.11 b/g/n, Bluetooth 4.0

• Audio: Stereo with 3.5 mm jack, built-in microphone and speaker

• Battery: Lithium

• Dimensions: Approx. 21 x 12 x 9 cm

• Weight: Approx. 0.4 kg

This versatile system combines the power of digital microscopy with the convenience of a tablet interface, making it suitable for a wide range of applications in research, education, and industry.
