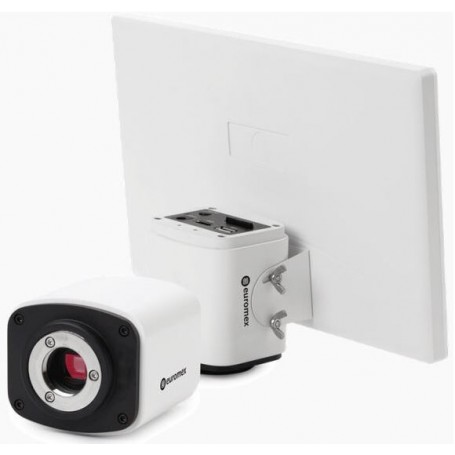

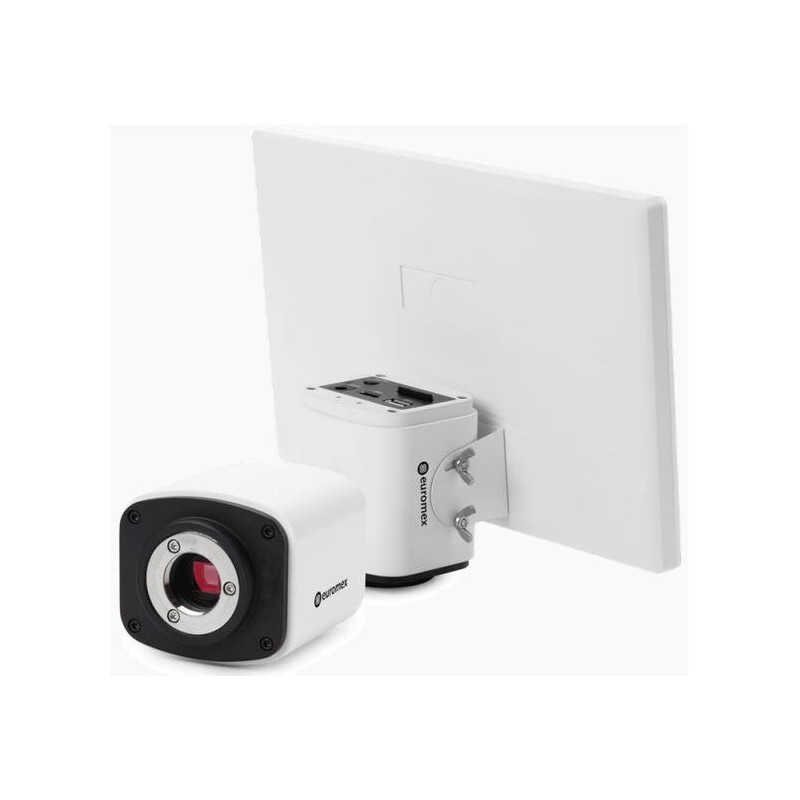

Euromex Camera HD Ultra, VC.3036-HDS, color, CMOS, 1/2.8", 6 M , USB 2, HDMI, tablet 11.6" (65772)

The Euromex HD-Ultra camera provides an excellent solution for modern microscopy in industrial and laboratory settings where real-time images are essential. This high-definition camera is suitable for biological, metallurgical, and stereo microscopes, offering HD1080p CMOS color imaging with both HDMI and USB-2 interfaces. It delivers outstanding color rendering at high frame rates of up to 60 frames per second in real-time. The HD-Ultra can be used in two modes: standalone with embedded mouse-driven software or computer-controlled.

Key Features:

• HD 1080p high-definition color camera

• Real-time images directly on TV, monitor, or projector

• Standalone or PC-connected operation

• Built-in mouse-driven software

• C-mount interface

• HDMI, USB-2, and SD memory card compatibility

• Compatible with ImageFocus Plus software

• Available with 11.6" HD screen (VC.3036-HDS model)

Included Accessories:

• HDMI cable

• USB 2 cable

• 12Vdc/2A power supply

• 16 GB SD card

• USB-2 mouse

• 0.37x objective

• Built-in software for image capturing, 1080p HD video recording, image comparison, and browsing

• Stage micrometer (1 mm divided into 100 parts, 10 µm per division)

Technical Specifications:

• Sensor: HDMI 6.0 Megapixel CMOS high-sensitive sensor (Sony)

• Format: 1/2.8 inch, HDTV 1080p (50/60 Hz)

• Pixels: 3264 x 1836 (capture mode), 1920 x 1080 (live view)

• Frame Rate: HDMI 60 fps, USB 30 fps

• Video: 1080p recording mode

• Scan Mode: Progressive scan

• Pixel Size: 2.8 µm x 2.8 µm

• Noise Reduction: 3D function

• Sensitivity: 510 mV

• White Balance: Automatic/manual

• Dynamic Range: 69 dB, S/N max 55 dB

• Interfaces: Digital HDMI, USB 2

• Storage: 16 GB SD memory card or USB-2

• Mounting: C-mount interface

• Power Supply: External adapter 100-240 Vac to 12 Vdc/2A

• Operating Conditions: 0 – 60°C, 45-85% humidity

• Storage Temperature: -20 to 70°C

Embedded Software Features:

• Image and video capture to SD card

• Playback of images and videos from SD card

• Measurement tools (Angle, Line, Rectangle, Circle, Ellipse, Polygon, etc.)

• Image comparison

• Grid overlay

• Digital zoom

• Image flip

• Pause function

• Camera settings adjustment (white balance, color control, etc.)

Compatibility:

• ImageFocus Plus software

• Windows 7 and higher

• Capture software (Mac)

Product Numbers:

• VC.3036 (standard model)

• VC.3036-HDS (with 11.6" HD screen)
