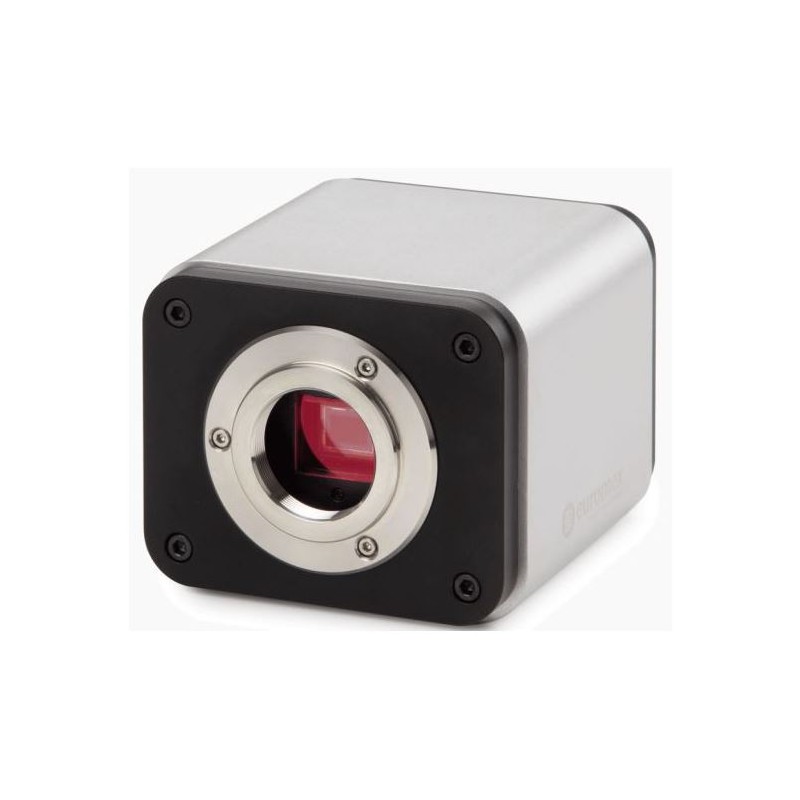

Euromex Camera HD-Autofocus, VC.3034, color, CMOS, 1/1.9", 2 MP, HDMI, USB 2.0 (60716)

The Euromex HD-Autofocus camera provides an excellent solution for modern microscopy in educational, industrial, and laboratory settings where real-time imaging is crucial. Its autofocus feature eliminates the need for manual refocusing when changing subjects or scanning objects of varying heights, making it ideal for quality control applications. This high-definition camera is compatible with stereo, biological, and metallurgical microscopes, offering HD1080p CMOS color imaging with HDMI interface and on-screen measurement capabilities.

Key Features:

• HD 1080p high-definition video camera

• Autofocus system

• Real-time images directly on TV, monitor, or projector (HDMI)

• Standalone system, no computer required

• Built-in mouse-driven software

• C-mount interface

• HDMI and SD memory card support

Included Accessories:

• 0.5x objective with C-mount

• 16 GB SD Memory card

• USB 3 cable

• 30 and 30.5mm adapters for stereo microscopes

• 12V/1A power adapter

• HDMI cable

• USB mouse

• 76x24mm calibration slide (1mm/100)

• Carton box

Technical Specifications:

• Sensor: SONY IMX185 2.0 Megapixels CMOS high-sensitive sensor

• Format: 1/1.9", HDTV 1080p (50/60Hz)

• Pixels: 1920 x 1080 (capture and live view modes)

• Frame Rate: HDMI 60 fps

• Pixel Size: 3.75 x 3.75 µm

• Video: 1080p recording mode

• Scan Mode: Progressive scan, rolling shutter

• Noise Reduction: De-noise function supported

• Sensitivity: 1120mv with 1/30s

• Exposure: Automatic/manual

• White Balance: Automatic/manual

• Interface: Digital HDMI

• Storage: 16 GB SD Memory card (larger capacities optional)

• Camera Controls: On/Off button

• Mounting: C-mount interface

• Power Supply: DC 12V/1A Adapter

• Operating Conditions: -10 to 50°C, 30-80% humidity

• Storage Conditions: -20 to 60°C, 10-60% humidity

• Measurement: Supported

Embedded Software Features:

• Image and video capture to SD card

• Image playback from SD card

• Measurement tools (Angle, Line, Rectangle, Circle, Ellipse, Polygon, etc.)

• Image comparison

• Grid overlay

• Digital zoom

• Image flip

• Pause function

• Camera settings adjustment (white balance, color control, etc.)

This standalone HD-Autofocus camera system provides excellent color rendering at high frame rates of up to 60 frames per second, making it an efficient tool for various microscopy applications without the need for computer expertise. The camera can be easily mounted into the eyepiece tube or on the trinocular port using the included C-mount objective.
