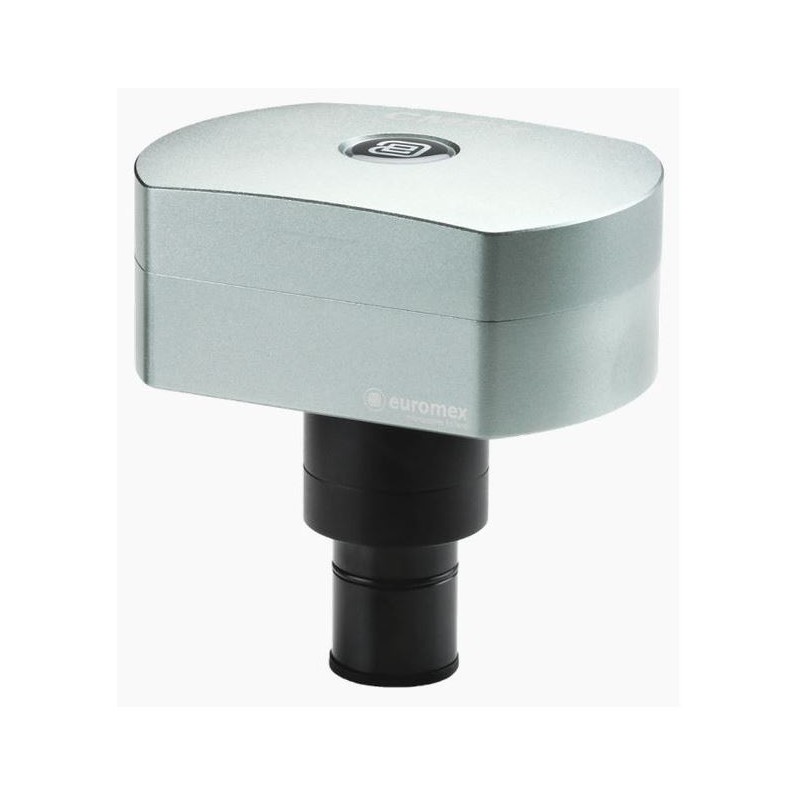

Euromex Camera sCMEX-6, color, sCMOS, 1/1.8", 6 MP, USB 3.0 (60709)

The sCMEX series of USB-3 cameras offer advanced imaging solutions for educational, laboratory, and industrial microscopy needs. These cameras are compatible with Life Science, Materials Science, and stereo microscopes, featuring scientific-grade back-illuminated sCMOS sensors with 16-bit grayscale conversion and exceptional 36-bit color rendering. They are suitable for brightfield, darkfield, and fluorescence microscopy applications.

The sCMEX cameras provide high-speed imaging with exceptional color reproduction and low noise levels, making them ideal for advanced microscopy applications in research and education. The included ImageFocus Alpha software enhances functionality by enabling measurements, annotations, and video recording directly from the camera system.

Key Features:

• High-speed SONY Exmor R sCMOS color USB 3.0 camera

• Back-illuminated sCMOS sensor for superior image quality

• Low signal-to-noise ratio

• USB 3.0 interface for fast data transfer

• Excellent color reproduction capability

• Compatible with ImageFocus Alpha software for capturing, analyzing, and measuring images

Specifications:

• Sensor Type: CMOS (scientific-grade)

• Megapixels: 6.3 MP

• Chip Size: 1/1.8"

• Pixel Size: 2.5 µm

• Resolution (Photograph): 3072 x 2048 pixels

• Resolution (Video): 1536 x 1024 pixels

• Shutter Type: Rolling shutter

• Exposure Time Range: Minimum 0.244 ms; Maximum 15,000 ms

• Sensitivity: 0.15 V/lux sec

• Image Transmission Interface: USB 3.0

• Video Functionality: Yes

• Frame Rate: 38 fps

Software Compatibility:

• ImageFocus Alpha software included for image capture, measurement, and annotation on still and live images

• Supported Operating Systems:

  • Windows (7/8/10; both 32-bit and 64-bit configurations)

  • Mac OS (image capture only)

PC Requirements:

• Intel Core2 processor (2.8 GHz or higher) or equivalent

• Minimum of 2 GB memory

• USB-3 port

• Display size of at least 17 inches

Additional Information:

• Series: sCMEX

• TV Output: Yes

• Peltier Cooling: No

• Adapter Required: 0.5x

• Supplier Product Number: VC.3036
