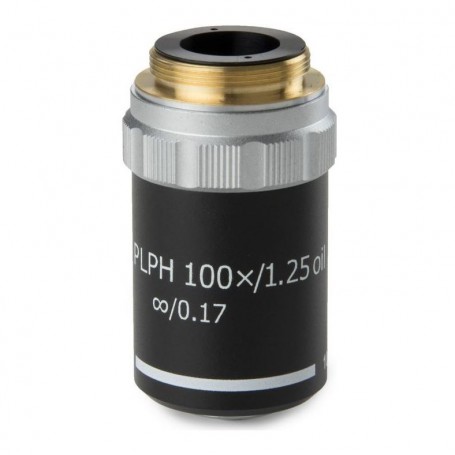

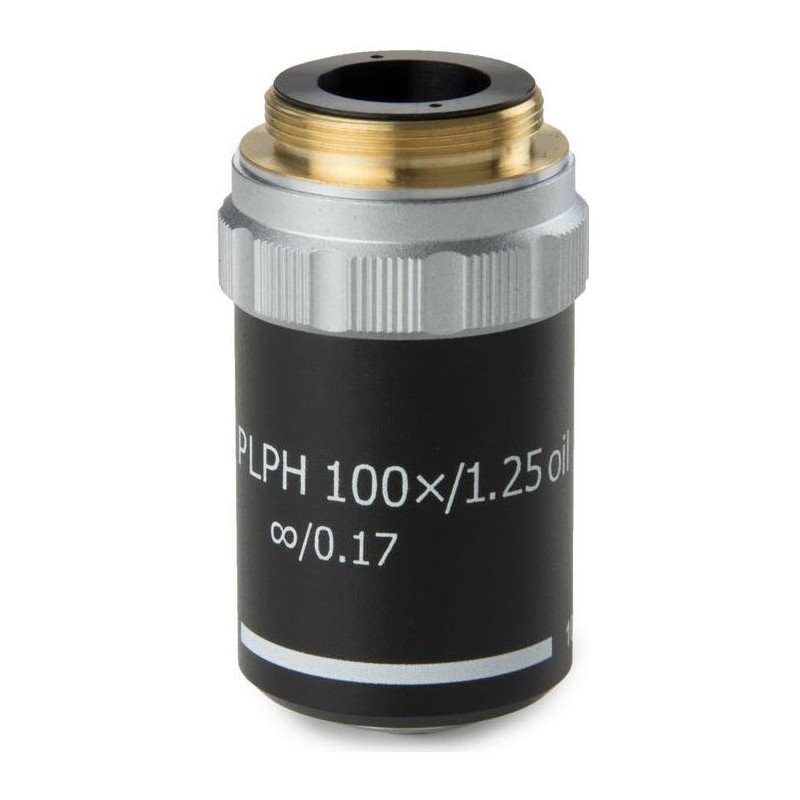

Euromex Objective 100x/1.25 plan, phase, infinity, BB.7700 (BioBlue.lab) (56758)

The Euromex Objective BB.7700 is a high-performance microscope objective designed for use with the BioBlue.lab series of microscopes. This 100x magnification objective features plan-corrected optics, phase contrast capability, and an infinity-corrected design, making it suitable for advanced microscopy applications requiring high resolution, flat field imaging, and enhanced contrast.

573.34 $
Tax included

466.13 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective BB.7700 is a high-performance microscope objective designed for use with the BioBlue.lab series of microscopes. This 100x magnification objective features plan-corrected optics, phase contrast capability, and an infinity-corrected design, making it suitable for advanced microscopy applications requiring high resolution, flat field imaging, and enhanced contrast. It is particularly useful for observing fine details in biological specimens and other samples that benefit from phase contrast and oil immersion techniques.



This objective lens is designed to provide excellent resolution, contrast, and flat-field imaging when used with immersion oil. The plan-corrected optics ensure a flat field of view, while the infinity-corrected design allows for compatibility with modern microscope systems. The high numerical aperture of 1.25 enables the capture of fine details, and the phase contrast capability enhances the visibility of transparent specimens. This makes it ideal for applications in biological research, medical diagnostics, and other fields requiring high-magnification microscopy with enhanced contrast.



Specifications:

Optical Properties:

  • Magnification: 100x

  • Numerical Aperture (NA): 1.25

  • Optical System: Infinity-corrected

  • Field Curvature Correction: Plan

  • Cover Glass Correction: Yes

  • Immersion Type: Oil

  • Phase Contrast: Yes

Design Features:

  • Suspension: Yes

  • Infinity Corrected: Yes

Compatibility:

  • Matches BioBlue.lab series: Yes

Additional Information:

  • Supplier Product Number: BB.7700
