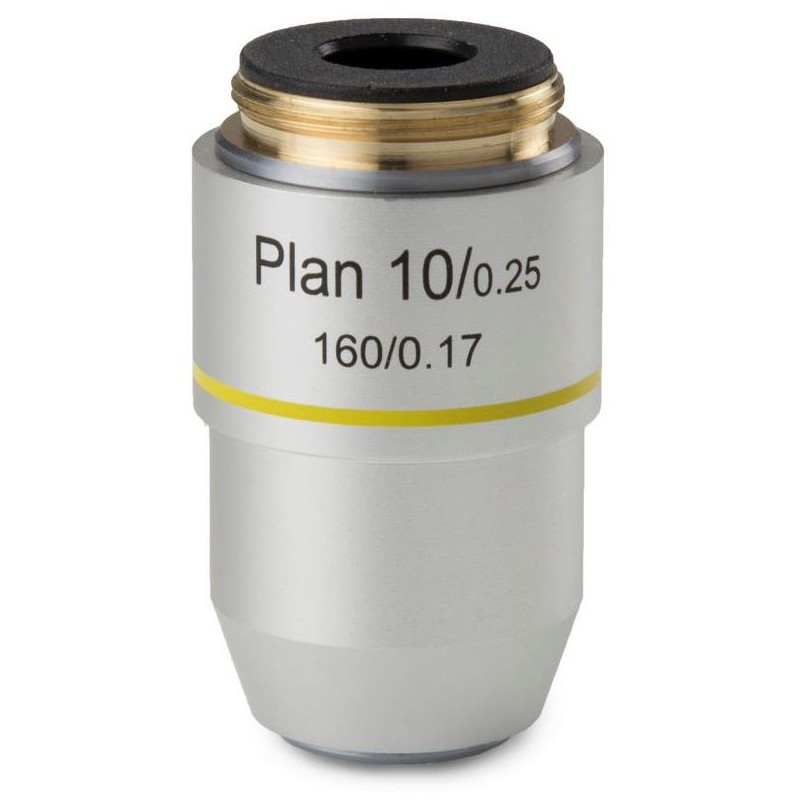

Euromex 10X/0.25 plan, DIN, BB.8810 microscope objective (BioBlue.lab) (56744)

The Euromex BB.8810 is a high-quality microscope objective designed for use with the BioBlue.lab series of microscopes. This 10x magnification objective features plan-corrected optics and is compatible with the DIN (Deutsche Industrie Norm) standard, making it suitable for a wide range of biological and laboratory applications. It offers excellent image quality and is particularly useful for routine observations in educational and research settings.

This objective lens is designed to provide a flat field of view with its plan-corrected optics, ensuring sharp imaging across the entire visible area. The DIN standard compatibility means it has a 160mm tube length and a 45mm parfocal distance. With a numerical aperture of 0.25, it offers a good balance between resolution and working distance, making it suitable for a variety of specimen types. The cover glass correction feature allows for optimal performance when using standard microscope slides with coverslips.

Specifications:

Optical Properties:

• Magnification: 10x

• Numerical Aperture (NA): 0.25

• Optical System: DIN (160mm)

• Field Curvature Correction: Plan

• Cover Glass Correction: Yes

• Infinity Corrected: No

Compatibility:

• Matches BioBlue.lab series: Yes

Additional Information:

• Supplier Product Number: BB.8810
