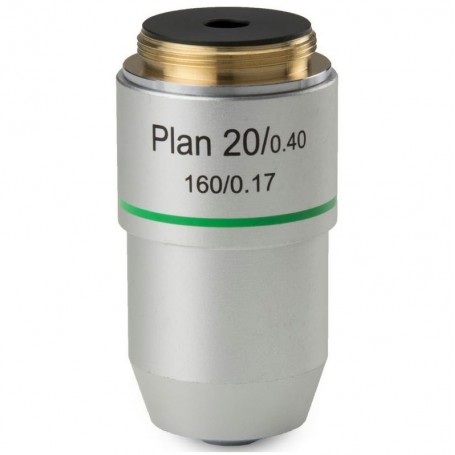

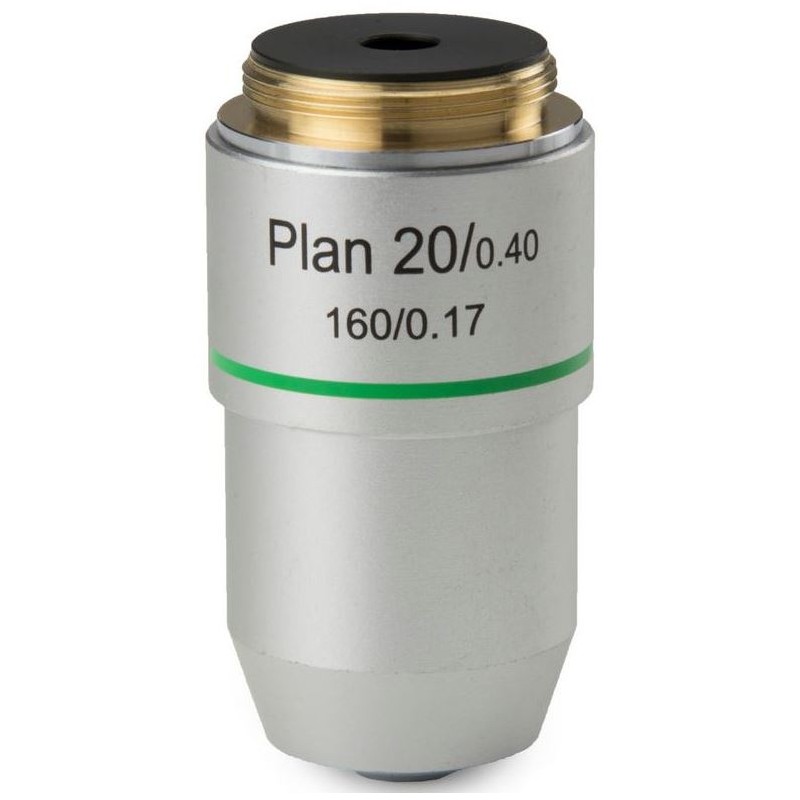

Euromex 20X/0.40 plan, DIN, BB.8820 microscope objective (BioBlue.lab) (56745)

The Euromex BB.8820 is a high-quality microscope objective designed for use with the BioBlue.lab series of microscopes. This 20x magnification objective features plan-corrected optics and is compatible with the DIN (Deutsche Industrie Norm) standard, making it suitable for a wide range of biological and laboratory applications. It offers excellent image quality and is particularly useful for detailed observations in educational and research settings.
1735.74 kr
Tax included

1411.17 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex BB.8820 is a high-quality microscope objective designed for use with the BioBlue.lab series of microscopes. This 20x magnification objective features plan-corrected optics and is compatible with the DIN (Deutsche Industrie Norm) standard, making it suitable for a wide range of biological and laboratory applications. It offers excellent image quality and is particularly useful for detailed observations in educational and research settings.

This objective lens is designed to provide a flat field of view with its plan-corrected optics, ensuring sharp imaging across the entire visible area. The DIN standard compatibility means it has a 160mm tube length and a 45mm parfocal distance. With a numerical aperture of 0.40, it offers improved resolution compared to lower magnification objectives, making it suitable for observing finer details in various specimen types. The cover glass correction feature allows for optimal performance when using standard microscope slides with coverslips.


Specifications:

Optical Properties:

  • Magnification: 20x

  • Numerical Aperture (NA): 0.40

  • Optical System: DIN (160mm)

  • Field Curvature Correction: Plan

  • Cover Glass Correction: Yes

  • Infinity Corrected: No

Compatibility:

  • Matches BioBlue.lab series: Yes

Additional Information:

  • Supplier Product Number: BB.8820
