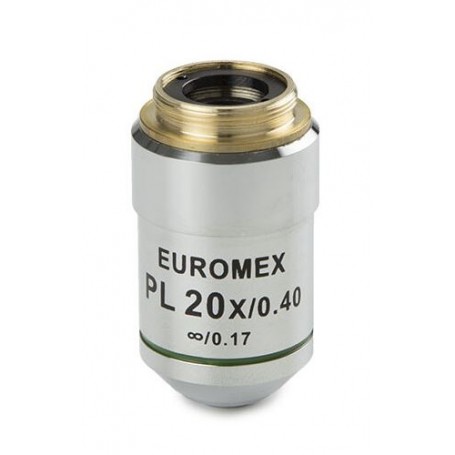

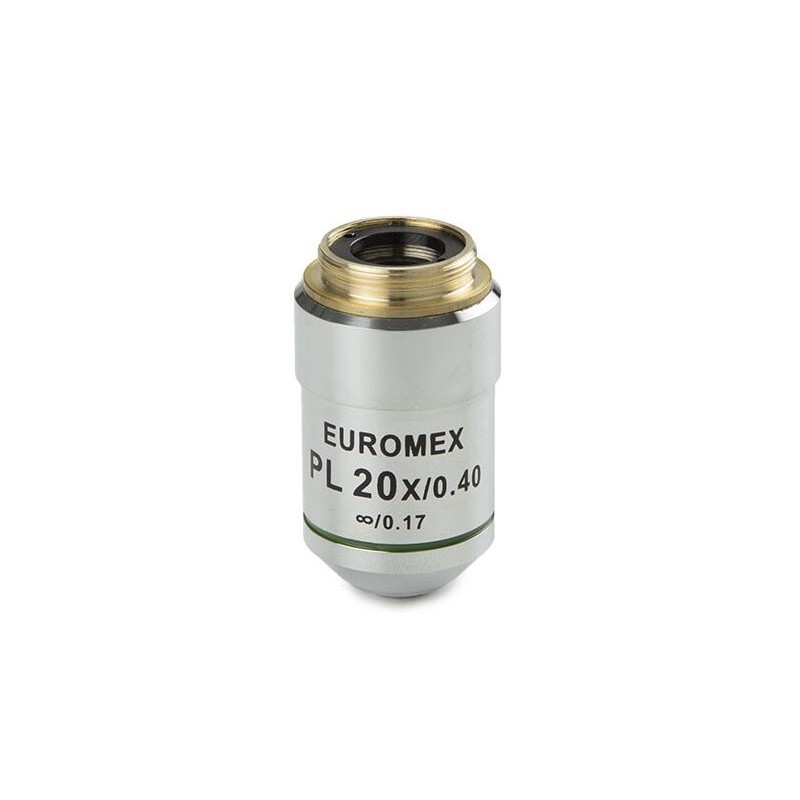

Euromex Objective AE.3108, 20x/0.40, w.d. 1,5 mm, PL IOS infinity, plan (Oxion) (53865)

The Euromex Objective AE.3108 is a high-quality microscope objective designed for use with the Oxion series microscopes. This 20x/0.40 objective features plan optics for a flat field of view and is part of the IOS (Infinity Optical System) series, which allows for greater flexibility in microscope design and the addition of intermediate optical components without affecting image quality. With a working distance of 1.5 mm, it provides a good balance between magnification and ease of use for various applications in biological and material sciences.

This objective offers a moderate magnification with a numerical aperture of 0.40, providing a good balance between resolution and light-gathering capability. The plan optics ensure that the entire field of view remains in focus, which is particularly beneficial for observing and documenting specimens with fine details. The working distance of 1.5 mm allows for comfortable manipulation of specimens while maintaining high-quality imaging.

Specifications

Optics

• Magnification: 20x/0.40

• Field Curvature: Plan

• Optical System: Infinity

Capacity

• Image Scale: 20

• Magnification: 20x

Mechanics

• Working Distance: 1.5 mm

Compatibility

• Matches Series: Oxion

Miscellaneous

• Supplier Product Number: AE.3108
