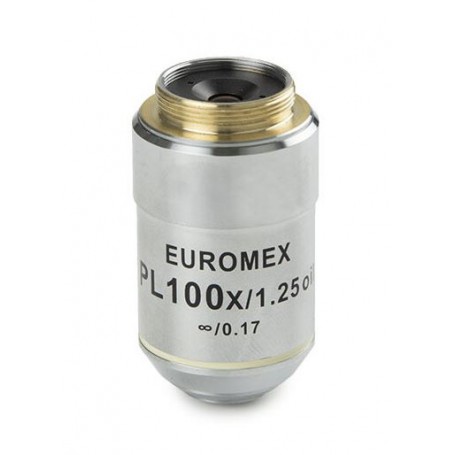

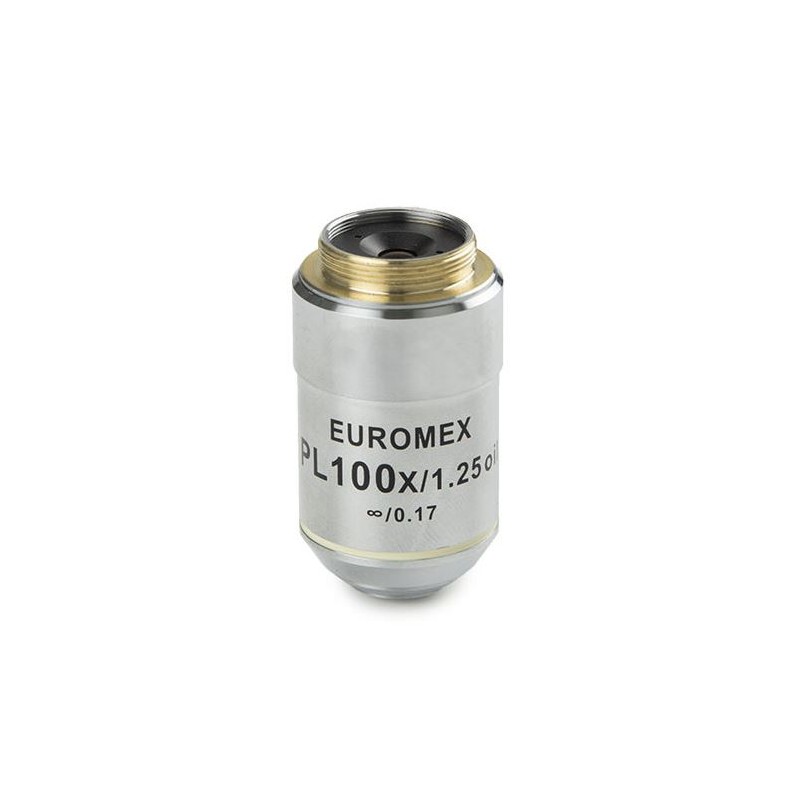

Euromex Objective AE.3114, S100x/1.25, w.d. 0,18 mm, PL IOS infinity, plan (Oxion) (53868)

The Euromex Objective AE.3114 is a high-performance microscope objective designed for use with the Oxion series microscopes. This S100x/1.25 objective is part of the IOS (Infinity Optical System) series, ensuring compatibility with modern infinity-corrected microscopes and enabling the integration of additional optical components without compromising image quality. With plan optics for a flat field of view and a working distance of 0.18 mm, it is ideal for high-magnification imaging in applications such as microbiology, histology, and material science.

This objective offers exceptional magnification with a numerical aperture of 1.25, providing superior resolution and light-gathering capabilities for observing fine details in specimens. The plan optics ensure that the entire field of view remains in focus, which is particularly useful for capturing high-quality images or conducting detailed analyses. The short working distance of 0.18 mm makes it suitable for immersion techniques, such as oil immersion, further enhancing its imaging performance for advanced scientific applications.

Specifications

Optics

• Magnification: 100x/1.25

• Field Curvature: Plan

• Optical System: Infinity

Capacity

• Image Scale: 100

• Magnification: 100x

Mechanics

• Working Distance: 0.18 mm

Compatibility

• Matches Series: Oxion

Miscellaneous

• Supplier Product Number: AE.3114
