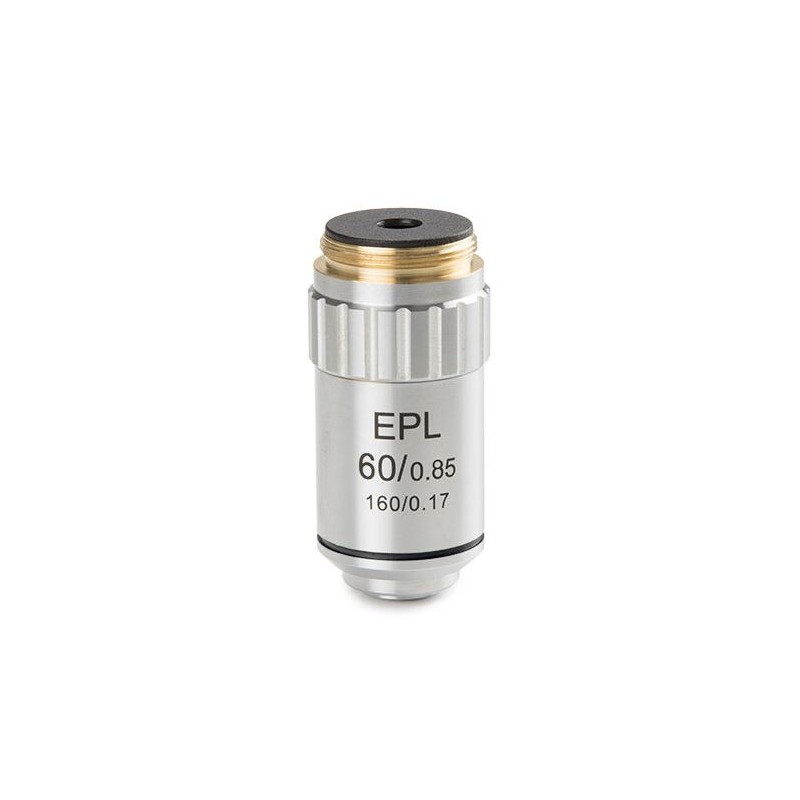

Euromex Objective BS.7160, E-plan EPL S60x/0.85, w.d. 0.20 mm (bScope) (55431)

The Euromex Objective BS.7160 is a high-quality microscope objective designed for use with the bScope series microscopes. This E-plan EPL S60x/0.85 objective features plan optics for a flat field of view and a high numerical aperture for excellent resolution. With a short working distance of 0.20 mm, it is ideal for applications requiring high magnification and detailed imaging, such as cell biology, histology, and materials science research.

1517.94 kr
Tax included

1234.1 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective BS.7160 is a high-quality microscope objective designed for use with the bScope series microscopes. This E-plan EPL S60x/0.85 objective features plan optics for a flat field of view and a high numerical aperture for excellent resolution. With a short working distance of 0.20 mm, it is ideal for applications requiring high magnification and detailed imaging, such as cell biology, histology, and materials science research.



This objective offers high magnification with a numerical aperture of 0.85, providing excellent resolution and light-gathering capability for detailed specimen observation. The plan optics ensure that the entire field of view remains in focus, which is essential for accurate imaging across the entire visible area. The short working distance of 0.20 mm allows for high-resolution imaging of specimens, making it particularly useful for examining fine structures and details in biological and material samples. While not infinity-corrected, this objective is well-suited for standard microscope configurations in the bScope series.



Specifications

Optics

  • Field Curvature: Plan

  • Infinity Corrected: No

Capacity

  • Image Scale: 60:1

  • Numerical Aperture: 0.85

  • Phase Contrast: No

  • Magnification: 60x

Mechanics

  • Working Distance: 0.20 mm

Compatibility

  • Matches Series: bScope

Miscellaneous

  • Supplier Product Number: BS.7160

Data sheet
