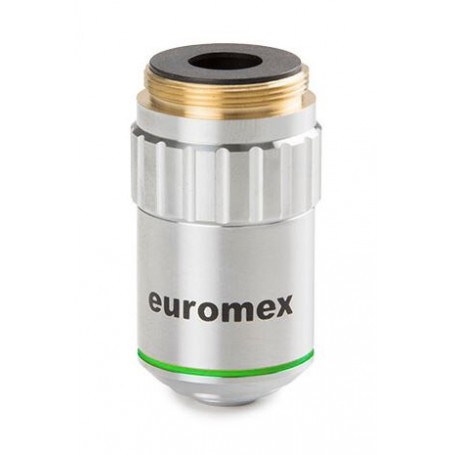

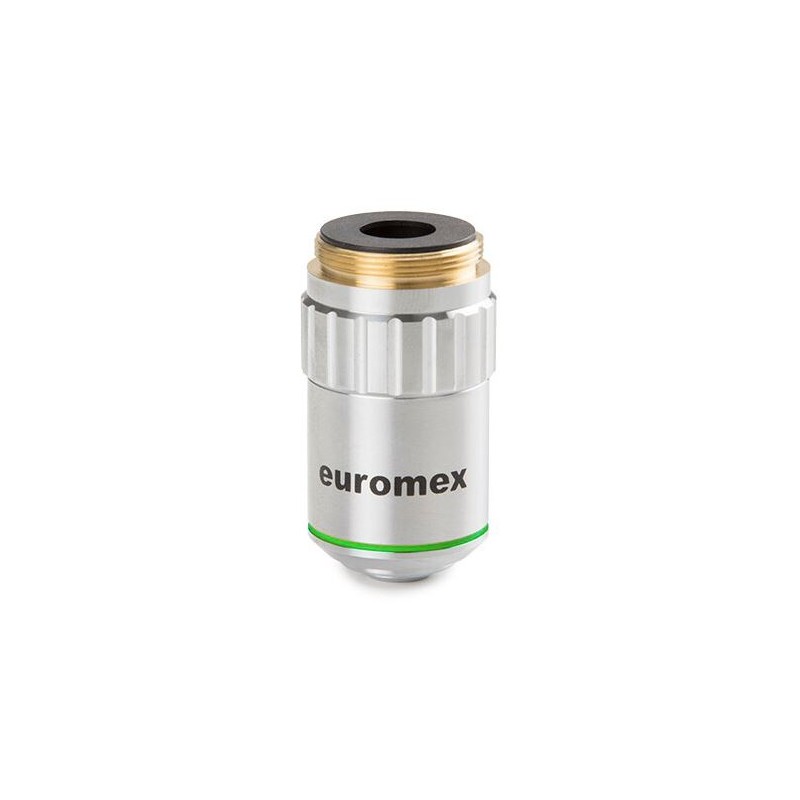

Euromex Objective BS.7520, E-Plan Phase EPLPH 20x/0.40, w.d. 6,61 mm (bScope) (55434)

The Euromex Objective BS.7520 is a high-quality microscope objective designed for use with the bScope series microscopes. This E-Plan Phase EPLPH 20x/0.40 objective features plan optics for a flat field of view and phase contrast capabilities, making it ideal for observing transparent specimens without staining. With a working distance of 6.61 mm and a numerical aperture of 0.40, it provides excellent resolution and contrast for mid-magnification applications in biological research, education, and routine laboratory work.

This objective offers moderate magnification with a numerical aperture of 0.40, providing good resolution and light-gathering capability for detailed specimen observation. The plan optics ensure that the entire field of view remains in focus, which is essential for accurate imaging across the visible area. The phase contrast feature enhances the visibility of transparent specimens, such as live cells or tissues, without requiring staining, making it particularly useful for biological and medical applications. Its working distance of 6.61 mm allows for comfortable specimen manipulation while maintaining high-quality imaging performance.

Specifications

Optics

• Field Curvature: Plan

• Infinity Corrected: No

Capacity

• Image Scale: 20:1

• Numerical Aperture: 0.40

• Phase Contrast: Yes

• Magnification: 20x

Mechanics

• Working Distance: 6.61 mm

Compatibility

• Matches Series: bScope

Miscellaneous

• Supplier Product Number: BS.7520
