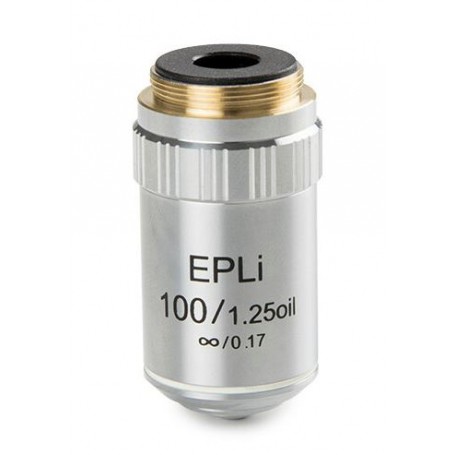

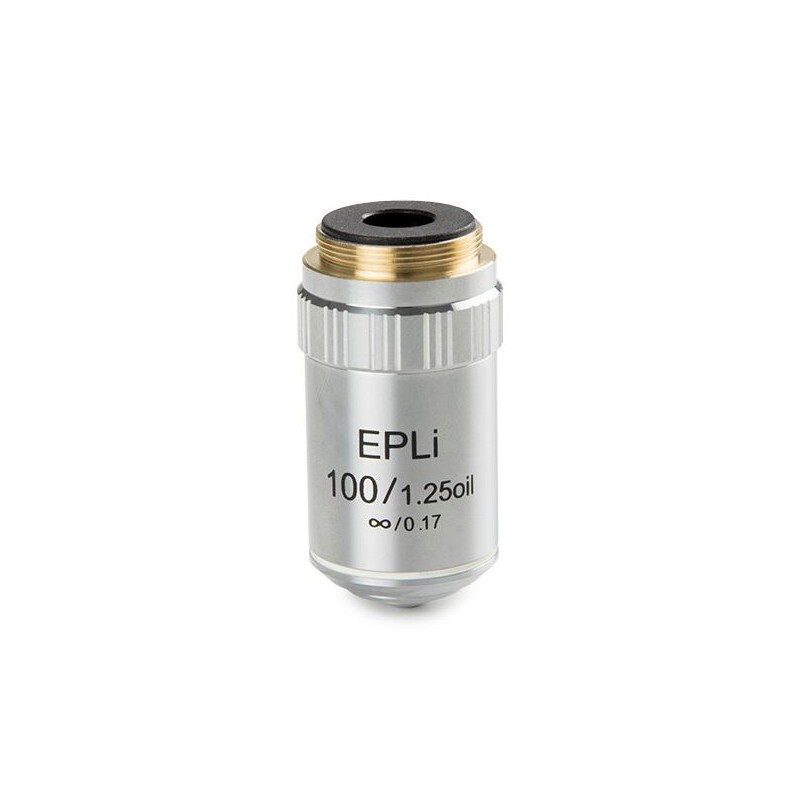

Euromex Objective BS.8200, E-plan EPLi S100x/1.25 oil immersion IOS (infinity corrected), w.d. 0.25 mm (bScope) (55441)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Euromex Objective BS.8200, E-plan EPLi S100x/1.25 oil immersion IOS (infinity corrected), w.d. 0.25 mm (bScope) (55441)

The Euromex Objective BS.8200 is a high-performance microscope objective designed for use with the bScope series microscopes. This E-plan EPLi S100x/1.25 oil immersion objective is infinity-corrected and features plan optics for a flat field of view. With a high numerical aperture of 1.25 and a short working distance of 0.25 mm, it is ideal for applications requiring the highest magnification and resolution, such as advanced cell biology, microbiology, and detailed materials analysis.

30165.70 ¥
Tax included

24524.96 ¥ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective BS.8200 is a high-performance microscope objective designed for use with the bScope series microscopes. This E-plan EPLi S100x/1.25 oil immersion objective is infinity-corrected and features plan optics for a flat field of view. With a high numerical aperture of 1.25 and a short working distance of 0.25 mm, it is ideal for applications requiring the highest magnification and resolution, such as advanced cell biology, microbiology, and detailed materials analysis.



This objective offers the highest standard magnification with a numerical aperture of 1.25, providing exceptional resolution and light-gathering capability for observing the finest details in specimens. The plan optics ensure that the entire field of view remains in focus, which is essential for accurate imaging across the visible area. The oil immersion design, combined with the short working distance of 0.25 mm, allows for optimal image quality in high-resolution microscopy tasks. Its infinity-corrected optics make it compatible with modern microscope systems, allowing for the insertion of additional optical components without affecting image quality.



Specifications

Optics

  • Infinity Corrected: Yes

  • Field Curvature: Plan

Capacity

  • Phase Contrast: No

  • Image Scale: 100:1

  • Numerical Aperture: 1.25

  • Magnification: 100x

Mechanics

  • Working Distance: 0.25 mm

Compatibility

  • Matches Series: bScope

Miscellaneous

  • Supplier Product Number: BS.8200

Data sheet

XUOMT0FSRJ
