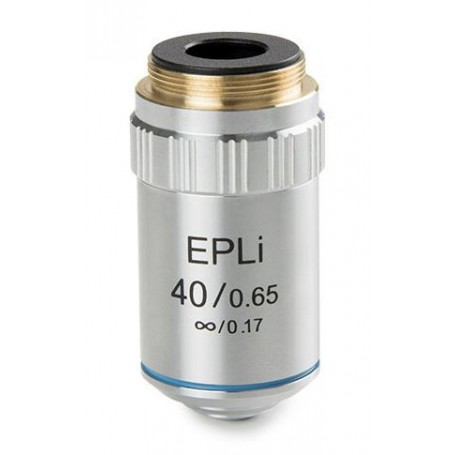

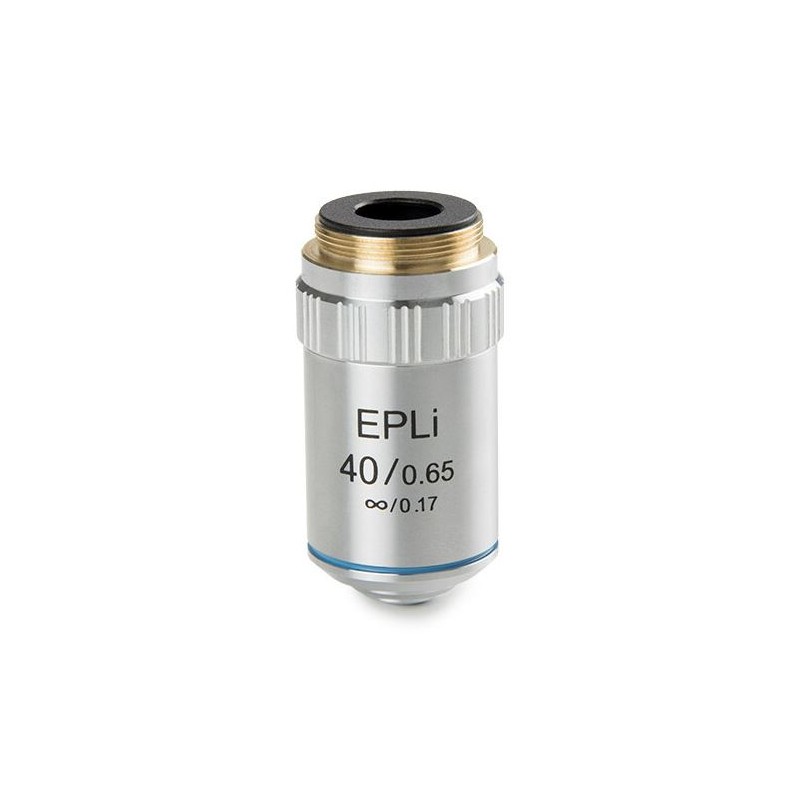

Euromex Objective BS.8240, E-plan EPLi S40x/0.65 IOS (infinity corrected), w.d. 0.78 mm (bScope) (55440)

The Euromex Objective BS.8240 is a high-performance microscope objective designed for use with the bScope series microscopes. This E-plan EPLi S40x/0.65 objective is infinity-corrected and features plan optics for a flat field of view. With a high magnification of 40x and a numerical aperture of 0.65, it provides excellent resolution and detail for various applications in biological research, medical diagnostics, and material science.

273.95 $
Tax included

222.72 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective BS.8240 is a high-performance microscope objective designed for use with the bScope series microscopes. This E-plan EPLi S40x/0.65 objective is infinity-corrected and features plan optics for a flat field of view. With a high magnification of 40x and a numerical aperture of 0.65, it provides excellent resolution and detail for various applications in biological research, medical diagnostics, and material science.



This objective offers high magnification with a numerical aperture of 0.65, providing excellent resolution and light-gathering capability for detailed specimen observation. The plan optics ensure that the entire field of view remains in focus, which is essential for accurate imaging across the visible area. The infinity-corrected design allows for the insertion of additional optical components without affecting image quality, making it compatible with modern microscope systems. Its relatively short working distance of 0.78 mm allows for high-resolution imaging while still providing some space for specimen manipulation, making it suitable for a wide range of scientific and medical applications.



Specifications

Optics

  • Infinity Corrected: Yes

  • Field Curvature: Plan

Capacity

  • Image Scale: 40:1

  • Numerical Aperture: 0.65

  • Phase Contrast: No

  • Magnification: 40x

Mechanics

  • Working Distance: 0.78 mm

Compatibility

  • Matches Series: bScope

Miscellaneous

  • Supplier Product Number: BS.8240
