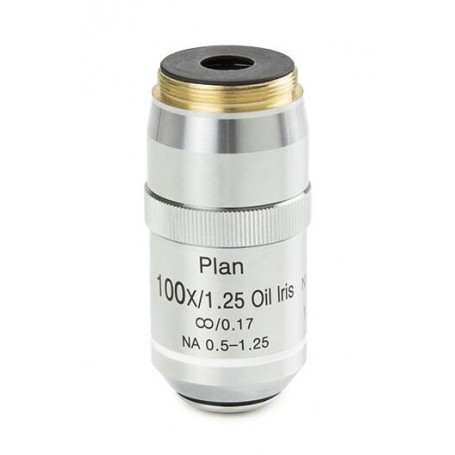

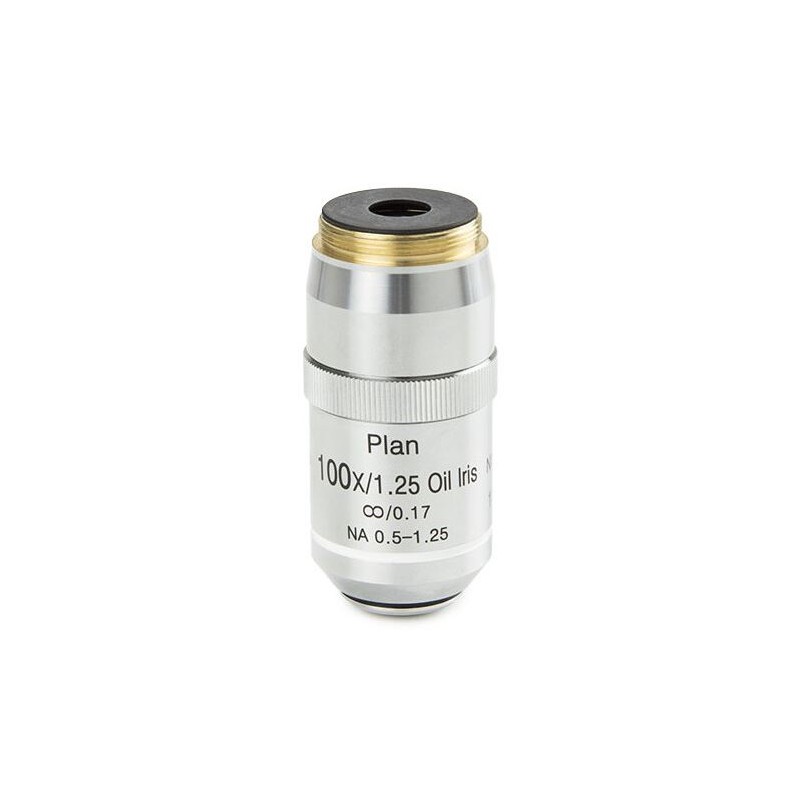

Euromex Objective DX.7200-I, 100x/1,25, wd 0,2 mm, plan infinity, iris diaphragm, oil, S (DelphiX) (53531)

The Euromex Objective DX.7200-I is a high-performance microscope objective designed for use with the Delphi-X Observer series microscopes. This 100x/1.25 objective features plan optics for a flat field of view, infinity correction, and an oil immersion design for optimal resolution. It also includes an iris diaphragm for adjustable depth of field and contrast control. With its high magnification and numerical aperture, this objective is ideal for applications requiring the highest level of detail, such as advanced cell biology, microbiology, and cutting-edge scientific research.

This objective offers the highest standard magnification with a numerical aperture of 1.25, providing exceptional resolution and light-gathering capability for observing the finest details in specimens. The plan optics ensure that the entire field of view remains in focus, which is essential for accurate imaging across the visible area. The oil immersion design, combined with the short working distance of 0.2 mm, allows for optimal image quality in high-resolution microscopy tasks. The inclusion of an iris diaphragm provides users with the ability to fine-tune the depth of field and contrast, making this objective highly versatile for a range of advanced microscopy applications.

Specifications

Optics

• Magnification: 100x

• Optical System: Infinity

• Field Curvature: Plan

• Cover Glass Correction: Yes

• Suspension: Yes

• Immersion Lens: Yes (Oil)

• Infinity Corrected: Yes

Capacity

• Image Scale: 100:1

• Designed for Cover Glass Thickness: 0.17 mm

• Numerical Aperture: 1.25

Mechanics

• Working Distance: 0.2 mm

Compatibility

• Matches Series: Delphi-X Observer

Miscellaneous

• Supplier Product Number: DX.7200-I
