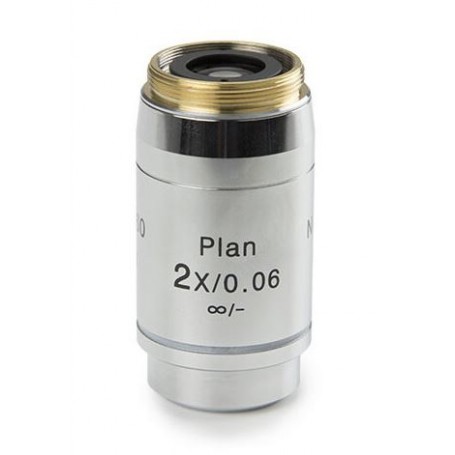

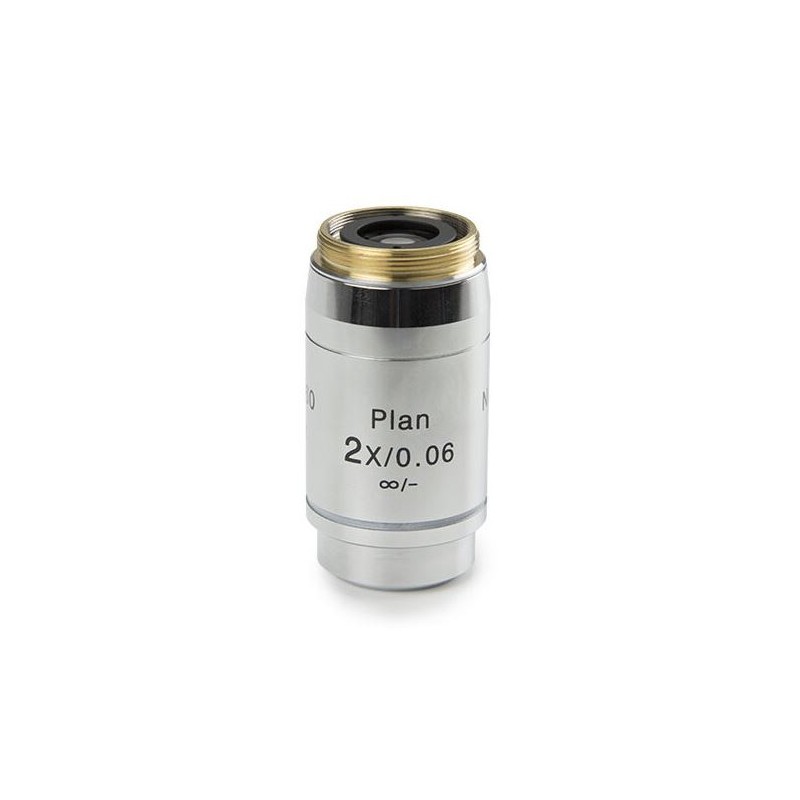

Euromex Objective DX.7202, 2x/0,06 Pli, plan, infinity, w.d. 7,5 mm (Delphi-X) (53760)

The Euromex Objective DX.7202 is a precision microscope objective designed for use with the Delphi-X Observer series microscopes. This 2x/0.06 objective is infinity-corrected and features plan optics for a flat field of view, ensuring high-quality imaging with minimal distortion. With its low magnification and long working distance of 7.5 mm, it is ideal for applications requiring a wide field of view and ample space for specimen manipulation, such as material analysis, educational purposes, and routine laboratory work.

This objective provides low magnification with a numerical aperture of 0.06, making it suitable for observing larger specimens or scanning sample surfaces. The plan optics ensure that the entire field remains in focus, which is essential for accurate imaging across the visible area. The infinity-corrected design allows for the integration of additional optical components without affecting image quality, making it compatible with modern microscope systems. Its long working distance of 7.5 mm offers flexibility for specimen handling while maintaining excellent image clarity, making it versatile for various scientific and educational applications.

Specifications

Optics

• Magnification: 2x

• Field Curvature: Plan

• Color Correction: Achromatic

• Suspension: No

• Immersion Lens: No

• Infinity Corrected: Yes

• Optical System: Infinity

• Cover Glass Correction: Yes

Capacity

• Image Scale: 2:1

• Numerical Aperture: 0.06

• Designed for Cover Glass Thickness: 0.17 mm

Mechanics

• Working Distance: 7.5 mm

Compatibility

• Matches Series: Delphi-X Observer

Miscellaneous

• Supplier Product Number: DX.7202
