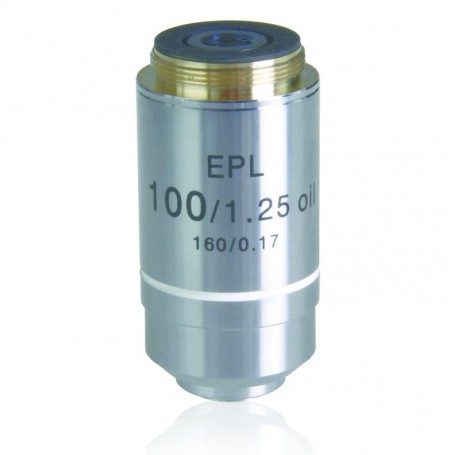

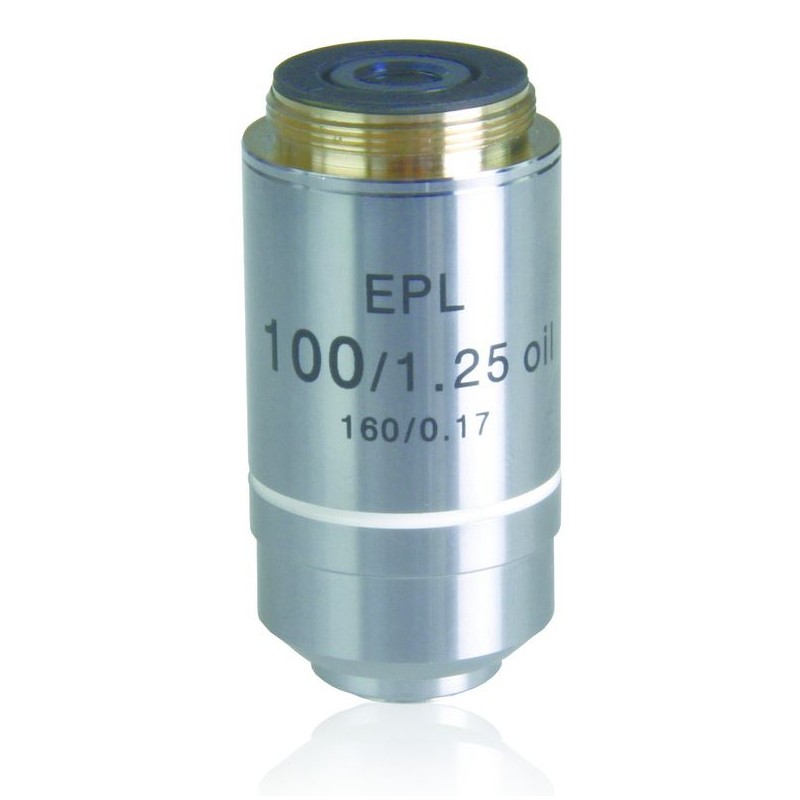

Euromex Objective IS.7100, 100x/1.25 oil immers., wd 0,13 mm, EPL, E-plan, S (iScope) (53355)

The Euromex Objective IS.7100 is a high-magnification microscope objective designed for use with oil immersion techniques. This objective is part of the iScope series and is specifically tailored for advanced microscopy applications. It offers a 100x magnification with a numerical aperture of 1.25, allowing for high-resolution imaging of specimens.

2272.99 kr
Tax included

1847.96 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.7100 is a high-magnification microscope objective designed for use with oil immersion techniques. This objective is part of the iScope series and is specifically tailored for advanced microscopy applications. It offers a 100x magnification with a numerical aperture of 1.25, allowing for high-resolution imaging of specimens. The objective is designed to work with the DIN (160mm) optical system and features plan field curvature correction for improved image quality across the entire field of view.

This E-plan objective is specifically designed for use with oil immersion techniques, which allows for higher resolution and improved image quality. The short working distance of 0.13 mm enables close examination of specimens, while the plan field curvature correction ensures a flat image across the entire field of view. The objective is corrected for use with standard 0.17 mm thick cover glasses, making it suitable for a wide range of microscopy applications.



Product Details:

  • Magnification: 100x

  • Optical system: DIN (160mm)

  • Field curvature: Plan

  • Cover glass correction: Yes

  • Immersion lens: Yes

  • Image scale: 100

  • Designed for cover glasses of thickness: 0.17 mm

  • Numerical aperture: 1.25

  • Working distance: 0.13 mm

  • Compatible series: iScope

  • Supplier product number: IS.7100
