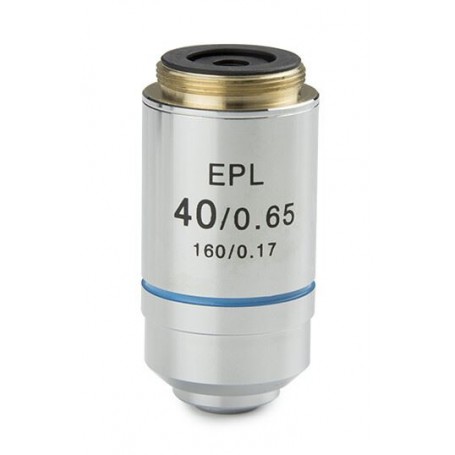

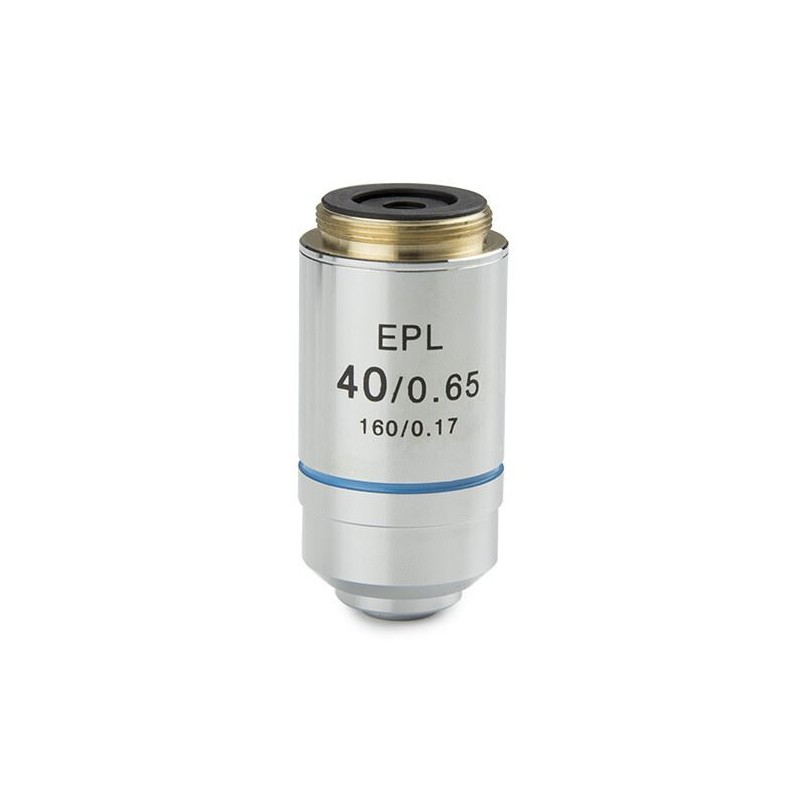

Euromex Objective IS.7140, 40x/0.65, wd 0,45 mm, EPL, E-plan, S (iScope) (53353)

The Euromex Objective IS.7140 is a high-quality microscope objective designed for advanced microscopy applications. It offers 40x magnification with a numerical aperture of 0.65, providing excellent resolution and clarity. This objective is part of the iScope series and features E-plan optics, ensuring a flat field of view with minimal distortion. It is particularly suited for detailed observations of biological specimens and other microscopic structures.

229.81 $
Tax included

186.84 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.7140 is a high-quality microscope objective designed for advanced microscopy applications. It offers 40x magnification with a numerical aperture of 0.65, providing excellent resolution and clarity. This objective is part of the iScope series and features E-plan optics, ensuring a flat field of view with minimal distortion. It is particularly suited for detailed observations of biological specimens and other microscopic structures.



This objective provides a balance between magnification and working distance, making it suitable for a wide range of microscopy applications. The plan field curvature correction ensures sharp focus across the entire field of view, while the cover glass correction optimizes performance with standard 0.17 mm thick coverslips. The relatively short working distance of 0.45 mm allows for close examination of specimens, making it ideal for detailed cellular studies and other high-resolution microscopy tasks.



Product Details:

Optics:

  • Magnification: 40x

  • Optical system: DIN (160mm)

  • Field curvature: Plan

  • Cover glass correction: Yes

Capacity:

  • Image scale: 40

  • Designed for cover glasses of thickness: 0.17 mm

  • Numerical aperture: 0.65

Mechanics:

  • Working distance: 0.45 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.7140
