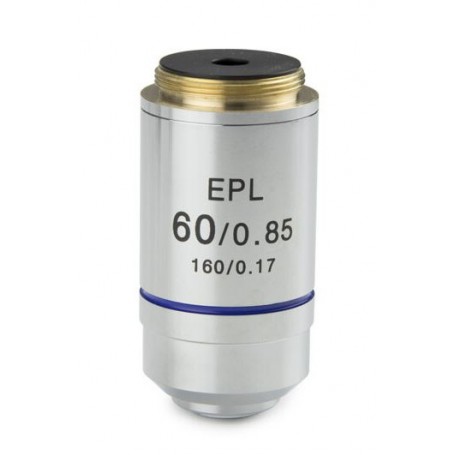

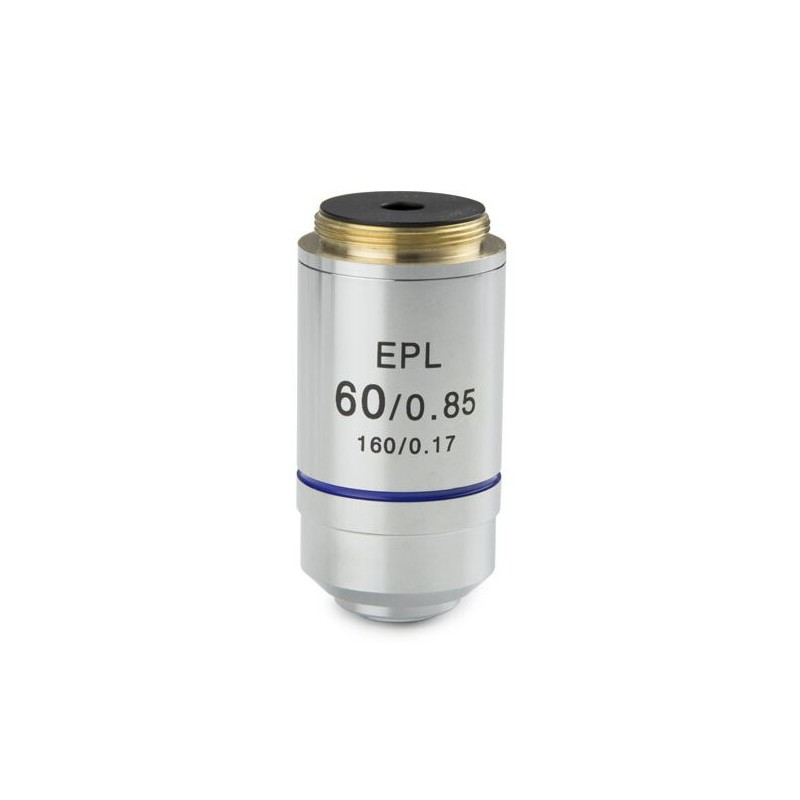

Euromex Objective IS.7160, 60x/0.85, wd 0,19 mm, EPL, E-plan, S (iScope) (53354)

The Euromex Objective IS.7160 is a high-magnification microscope objective designed for advanced microscopy applications. It offers 60x magnification with a high numerical aperture of 0.85, providing excellent resolution and light-gathering capabilities. This objective is part of the iScope series and features E-plan optics, ensuring a flat field of view with minimal distortion. It is particularly suited for detailed observations of biological specimens and other microscopic structures requiring high magnification and clarity.

This objective provides high magnification while maintaining a relatively high numerical aperture, allowing for detailed examination of specimens with excellent resolution. The plan field curvature correction ensures sharp focus across the entire field of view, while the cover glass correction optimizes performance with standard 0.17 mm thick coverslips. The short working distance of 0.19 mm enables close examination of specimens, making it ideal for studying fine cellular structures and other applications requiring high-resolution imaging.

Product Details:

Optics:

• Magnification: 60x

• Optical system: DIN (160mm)

• Field curvature: Plan

• Cover glass correction: Yes

Capacity:

• Image scale: 60

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 0.85

Mechanics:

• Working distance: 0.19 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.7160
