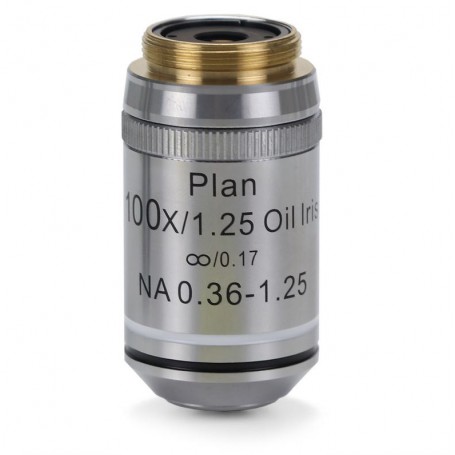

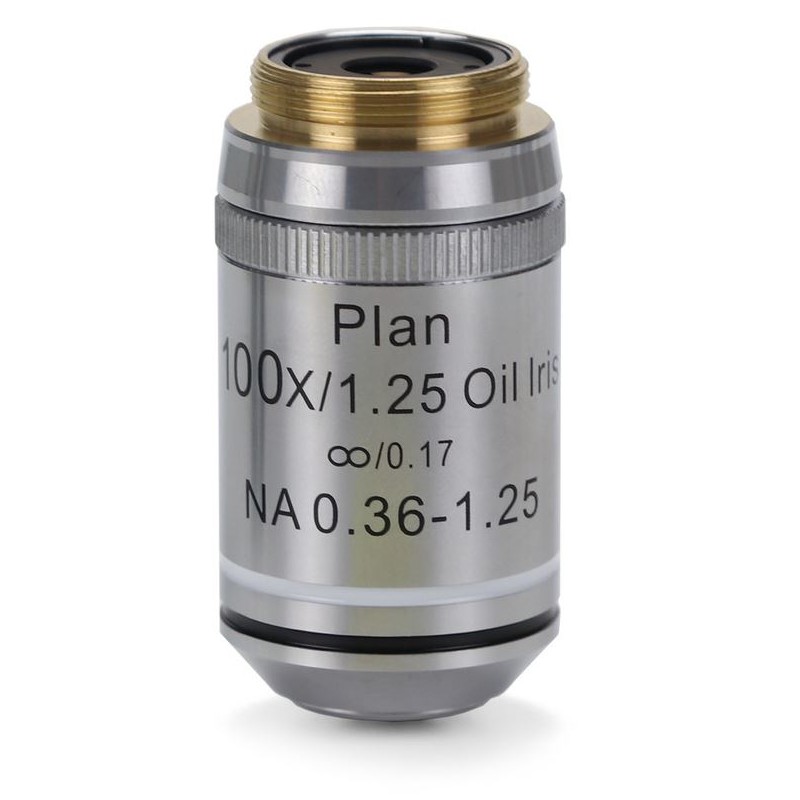

Euromex Objective IS.7200-I, 100x/1.25 oil immers., PLi , plan, infinity, iris diaphragm, Spring (iScope) (53376)

The Euromex Objective IS.7200-I is a high-performance microscope objective designed for advanced microscopy applications. This 100x magnification objective features oil immersion capabilities and an infinity-corrected optical system, making it ideal for high-resolution imaging. It is part of the iScope series and includes a built-in iris diaphragm for enhanced contrast control.

842.12 $
Tax included

684.65 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.7200-I is a high-performance microscope objective designed for advanced microscopy applications. This 100x magnification objective features oil immersion capabilities and an infinity-corrected optical system, making it ideal for high-resolution imaging. It is part of the iScope series and includes a built-in iris diaphragm for enhanced contrast control. The objective's plan apochromatic design ensures a flat field of view with minimal chromatic aberrations, making it suitable for demanding research and clinical applications.



This objective combines high magnification with a high numerical aperture of 1.25, allowing for exceptional resolution and light-gathering capabilities. The built-in iris diaphragm provides flexibility in adjusting contrast and depth of field. The spring-loaded design helps protect both the objective and specimens from accidental damage. With its oil immersion capability and short working distance of 0.13 mm, this objective is particularly suited for detailed examination of biological specimens and other applications requiring the highest level of magnification and clarity.



Product Details:

Optics:

  • Magnification: 100x

  • Optical system: Infinity

  • Field curvature: Plan

  • Cover glass correction: Yes

  • Suspension: Yes

  • Immersion lens: Yes

  • Infinity corrected: Yes

Capacity:

  • Image scale: 100

  • Designed for cover glasses of thickness: 0.17 mm

  • Dark field capability: Yes

  • Numerical aperture: 1.25

Mechanics:

  • Working distance: 0.13 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.7200-I

Data sheet
