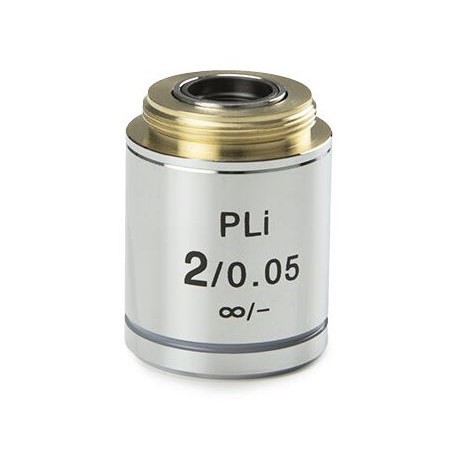

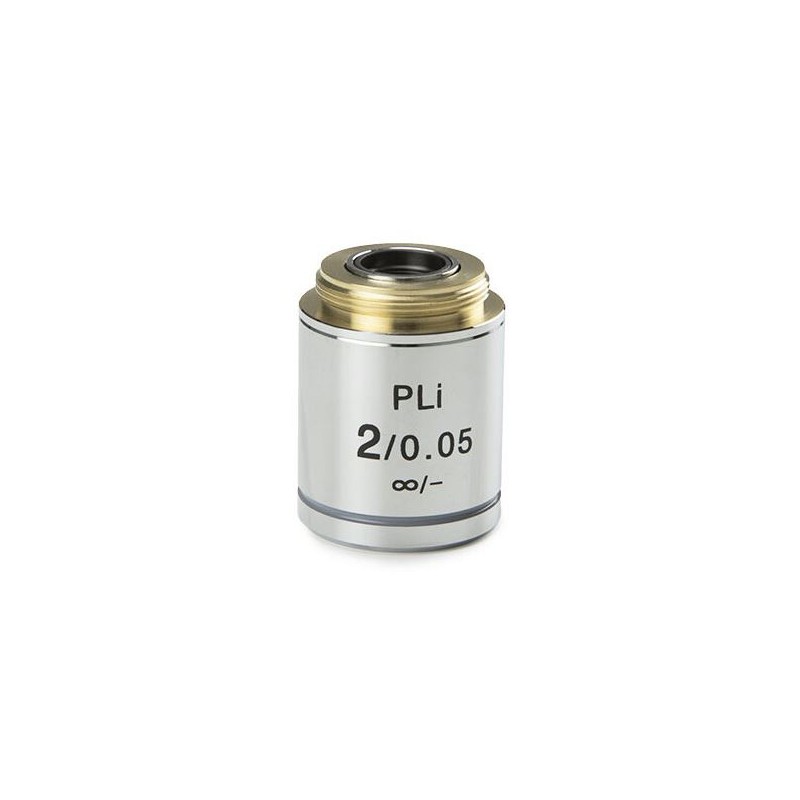

Euromex Objective IS.7202, 2x/0.05, wd 18,3 mm, PLi , plan, infinity (iScope) (54584)

The Euromex Objective IS.7202 is a low-magnification microscope objective designed for wide-field viewing and imaging. This 2x magnification objective features an infinity-corrected optical system and a plan apochromatic design, ensuring a flat field of view with minimal distortion. It is part of the iScope series and is particularly useful for applications requiring a large field of view, such as whole-specimen imaging or initial sample surveying.

1463.42 kr
Tax included

1189.77 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.7202 is a low-magnification microscope objective designed for wide-field viewing and imaging. This 2x magnification objective features an infinity-corrected optical system and a plan apochromatic design, ensuring a flat field of view with minimal distortion. It is part of the iScope series and is particularly useful for applications requiring a large field of view, such as whole-specimen imaging or initial sample surveying.



This objective offers a very low magnification combined with a long working distance of 18.3 mm, making it ideal for observing larger specimens or for applications requiring significant space between the objective and the sample. The low numerical aperture of 0.05 is typical for objectives of this magnification and provides a good depth of field. This objective is particularly useful in fields such as materials science, forensics, or any application where a broad overview of a specimen is required before moving to higher magnifications.



Product Details:

Optics:

  • Magnification: 2x

  • Optical system: Infinity

  • Field curvature: Plan

  • Cover glass correction: No

  • Infinity corrected: Yes

Capacity:

  • Image scale: 2

  • Numerical aperture: 0.05

Mechanics:

  • Working distance: 18.3 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.7202
