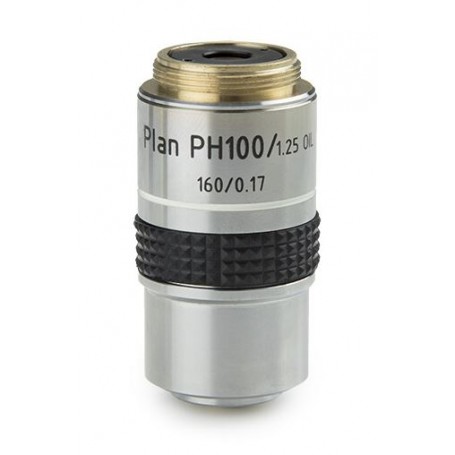

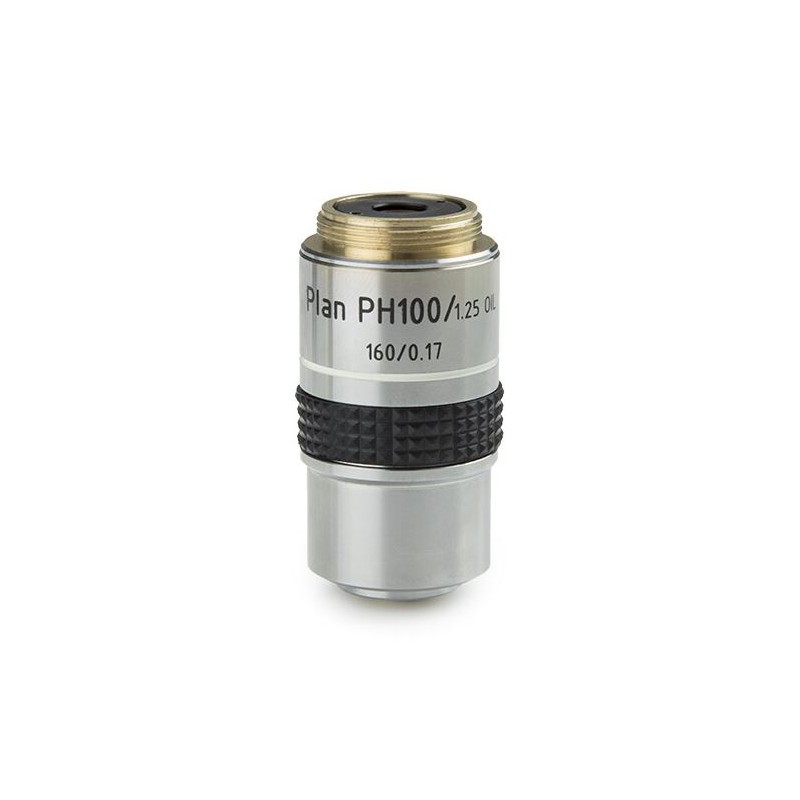

Euromex Objective IS.7700, 100x/1.25 oil immers., wd 0.13, PLPH,plan, phase, infinity, S(iScope) (53359)

The Euromex Objective IS.7700 is a high-performance microscope objective designed for advanced phase contrast and oil immersion microscopy. This 100x magnification objective features an infinity-corrected optical system, plan apochromatic design, and phase contrast capabilities, making it ideal for high-resolution imaging of transparent specimens. It is part of the iScope series and offers exceptional resolution and contrast, particularly suitable for detailed examination of biological specimens and other microscopic structures requiring the highest level of magnification and clarity.

This objective combines high magnification with a high numerical aperture of 1.25, allowing for exceptional resolution and light-gathering capabilities. The oil immersion design and short working distance of 0.13 mm enable close examination of specimens with minimal light loss. The plan apochromatic design (PLPH) ensures sharp focus across the entire field of view, while the infinity-corrected optics provide flexibility in microscope configurations. The phase contrast feature enhances visibility of transparent specimens without staining, making it particularly valuable for live cell imaging and other applications requiring high contrast of unstained samples. The "S" designation likely indicates a spring-loaded design, which helps protect both the objective and specimens from accidental damage.

Product Details:

Optics:

• Magnification: 100x

• Optical system: Infinity

• Field curvature: Plan

• Cover glass correction: Yes

Capacity:

• Image scale: 100

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 1.25

• Phase contrast: Yes

Mechanics:

• Working distance: 0.13 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.7700
