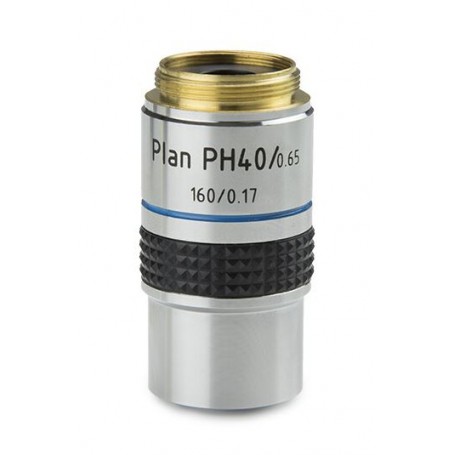

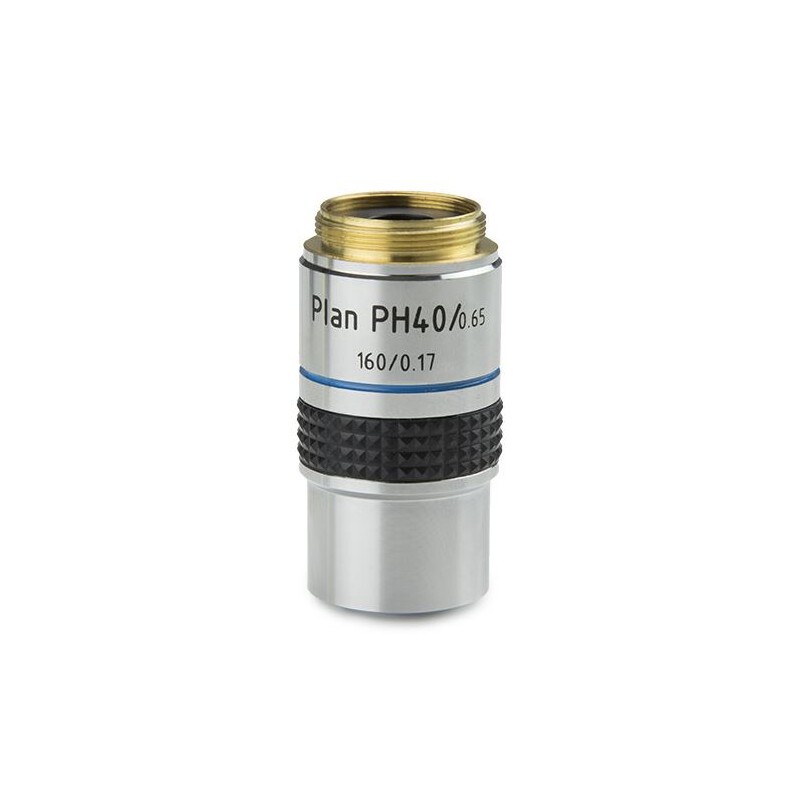

Euromex Objective IS.7740, 40x/0.65, wd 0,37 mm, PLPH, plan, phase, S (iScope) (53358)

The Euromex Objective IS.7740 is a high-resolution microscope objective specifically designed for phase contrast microscopy. With 40x magnification, this objective features a plan apochromatic design and phase contrast capabilities, making it ideal for observing transparent specimens with enhanced contrast and clarity. It is part of the iScope series and offers precise imaging for applications such as cell biology, microbiology, and material science research.

This objective combines high magnification with a numerical aperture of 0.65, ensuring excellent resolution and light-gathering capabilities for detailed specimen observation. The plan apochromatic design (PLPH) minimizes distortion and chromatic aberrations, delivering sharp images across the entire field of view. The phase contrast feature enhances visibility of transparent or unstained specimens, making it particularly valuable for live cell imaging and other advanced microscopy tasks. The short working distance of 0.37 mm allows for close examination of samples, while the "S" designation indicates a spring-loaded design to protect both the objective and specimens from accidental damage during use.

Product Details:

Optics:

• Magnification: 40x

• Optical system: DIN (160mm)

• Field curvature: Plan

• Cover glass correction: Yes

Capacity:

• Image scale: 40

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 0.65

• Phase contrast: Yes

Mechanics:

• Working distance: 0.37 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.7740
