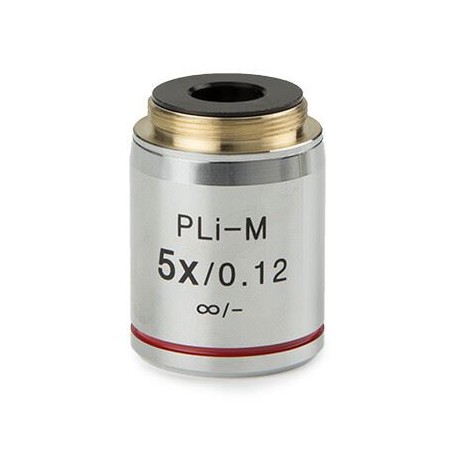

Euromex Objective IS.8105, 5x/0.12, PLMi, plan, infinity (iScope) (53360)

The Euromex Objective IS.8105 is a low-magnification microscope objective designed for metallurgical and materials science applications. This 5x magnification objective features an infinity-corrected optical system and a plan apochromatic design, making it ideal for wide-field imaging of reflective surfaces without the need for cover glass correction. It is part of the iScope series and offers a large field of view with good resolution, suitable for initial specimen examination and overview imaging in materials analysis.

This objective provides low magnification with a numerical aperture of 0.12, suitable for applications requiring a large field of view and good depth of field. The plan apochromatic design (PLMi) ensures sharp focus across the entire field of view, while the infinity-corrected optics provide flexibility in microscope configurations. The long working distance of 15.5 mm allows for easy manipulation of samples and is particularly useful for examining larger or uneven specimens. The lack of cover glass correction makes this objective specifically suited for examining uncovered, reflective surfaces, typical in metallurgical and materials science applications.

Product Details:

Optics:

• Magnification: 5x

• Optical system: Infinity

• Cover glass correction: No

• Infinity corrected: Yes

Capacity:

• Image scale: 5

• Numerical aperture: 0.12

Mechanics:

• Working distance: 15.5 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.8105
