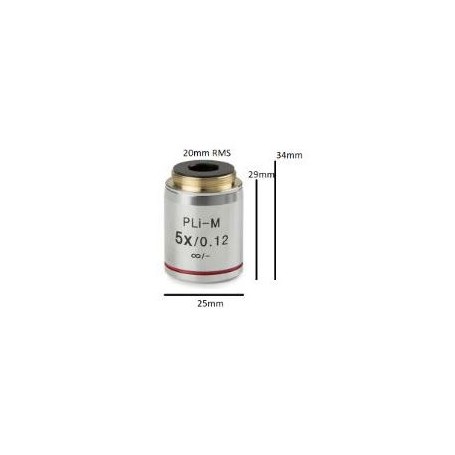

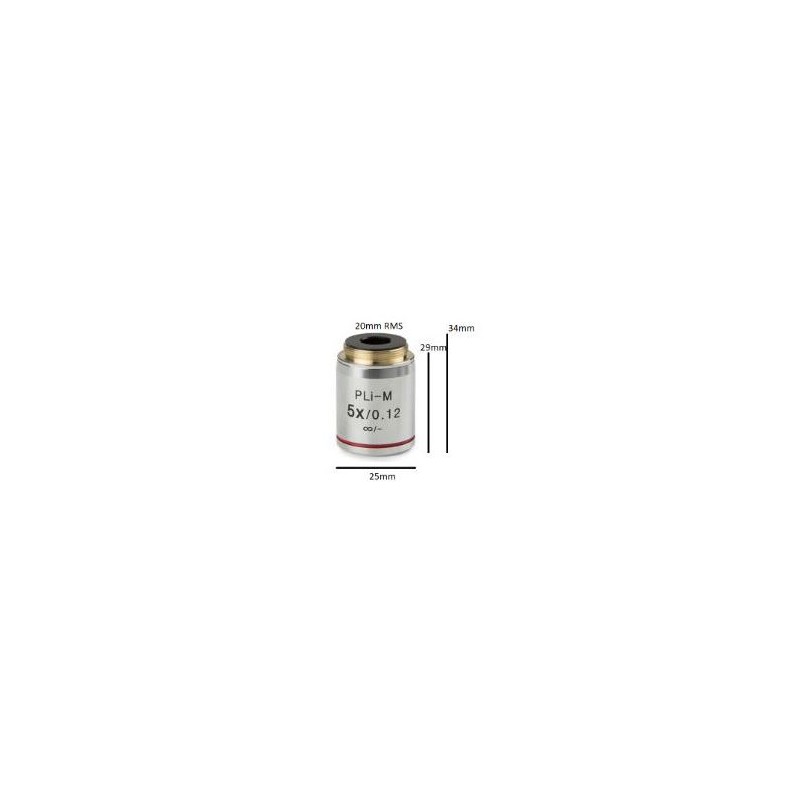

Euromex objective IS.8105, Plan PL 5x/0.12, w.d. 15.5 mm, infinity, cov glass -(bScope) (77365)

The Euromex Objective IS.8105 is a low-magnification microscope objective designed for applications requiring wide-field imaging and precise observation of uncovered specimens. With 5x magnification, this objective features an infinity-corrected optical system and a plan apochromatic design, ensuring sharp and flat images across the entire field of view. It is part of the bScope series and is suitable for both incident and transmitted light microscopy, making it versatile for materials science, industrial inspection, and educational purposes.

4851.61 Kč
Tax included

3944.4 Kč net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.8105 is a low-magnification microscope objective designed for applications requiring wide-field imaging and precise observation of uncovered specimens. With 5x magnification, this objective features an infinity-corrected optical system and a plan apochromatic design, ensuring sharp and flat images across the entire field of view. It is part of the bScope series and is suitable for both incident and transmitted light microscopy, making it versatile for materials science, industrial inspection, and educational purposes.



This objective offers low magnification with a numerical aperture of 0.12, making it suitable for applications that require a large field of view and good depth of field. The plan apochromatic design ensures minimal distortion and chromatic aberrations, delivering high-quality images across the entire field of view. The long working distance of 15.5 mm allows for easy manipulation of specimens, making it ideal for examining larger or uneven surfaces. The absence of cover glass correction makes this objective particularly suited for uncovered specimens in materials science or industrial applications using incident or transmitted light setups.



Product Details:

Optics:

  • Magnification: 5x

  • Optical system: Infinity

  • Cover glass correction: No

  • Field curvature: Plan

  • Infinity corrected: Yes

Lighting:

  • Compatible with incident light and transmitted light microscopy

Capacity:

  • Image scale: 5

  • Designed for cover glasses of thickness: 0 mm

  • Numerical aperture: 0.12

  • Dark field compatibility: No

Mechanics:

  • Working distance: 15.5 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.8105
