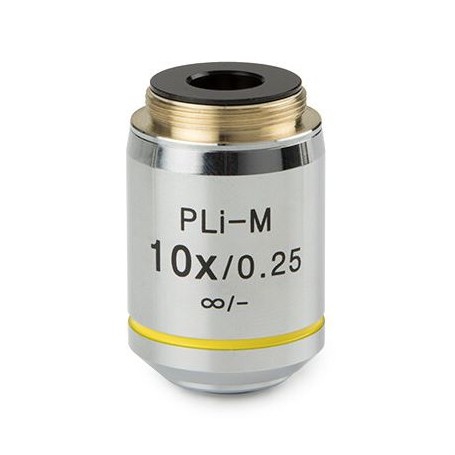

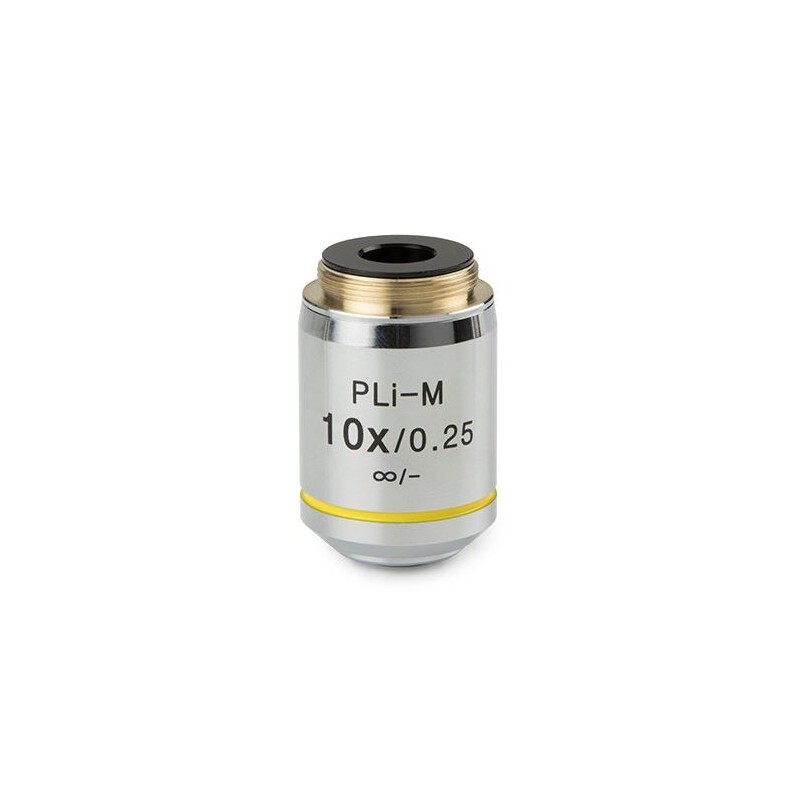

Euromex Objective IS.8110, 10x/0.25, PLMi, plan, infinity (iScope) (53361)

The Euromex Objective IS.8110 is a versatile microscope objective designed for metallurgical and materials science applications. This 10x magnification objective features an infinity-corrected optical system and a plan apochromatic design, making it ideal for imaging reflective surfaces without the need for cover glass correction. It is part of the iScope series and offers a good balance between magnification and field of view, suitable for detailed examination of metal surfaces, semiconductor materials, and other opaque specimens.

180.45 CHF
Tax included

146.71 CHF net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.8110 is a versatile microscope objective designed for metallurgical and materials science applications. This 10x magnification objective features an infinity-corrected optical system and a plan apochromatic design, making it ideal for imaging reflective surfaces without the need for cover glass correction. It is part of the iScope series and offers a good balance between magnification and field of view, suitable for detailed examination of metal surfaces, semiconductor materials, and other opaque specimens.



This objective provides moderate magnification with a numerical aperture of 0.25, suitable for applications requiring a good balance between field of view and resolution. The plan apochromatic design (PLMi) ensures sharp focus across the entire field of view, while the infinity-corrected optics provide flexibility in microscope configurations. The relatively long working distance of 10 mm allows for easy manipulation of samples and is particularly useful for examining larger or uneven specimens. The lack of cover glass correction makes this objective specifically suited for examining uncovered, reflective surfaces, typical in metallurgical and materials science applications.



Product Details:

Optics:

  • Magnification: 10x

  • Optical system: Infinity

  • Cover glass correction: No

  • Infinity corrected: Yes

Capacity:

  • Image scale: 10

  • Numerical aperture: 0.25

Mechanics:

  • Working distance: 10 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.8110
