Euromex Objective IS.8150, 50x/0.70, PLMi, plan, infinity (iScope) (53363)

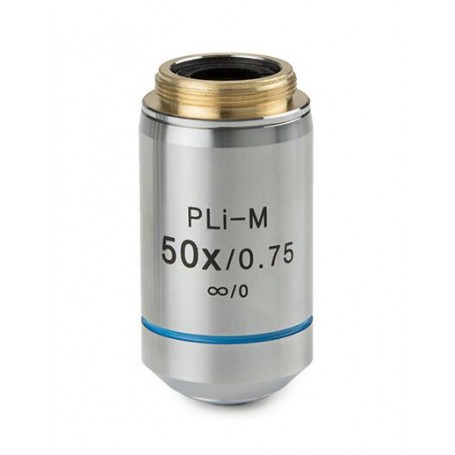

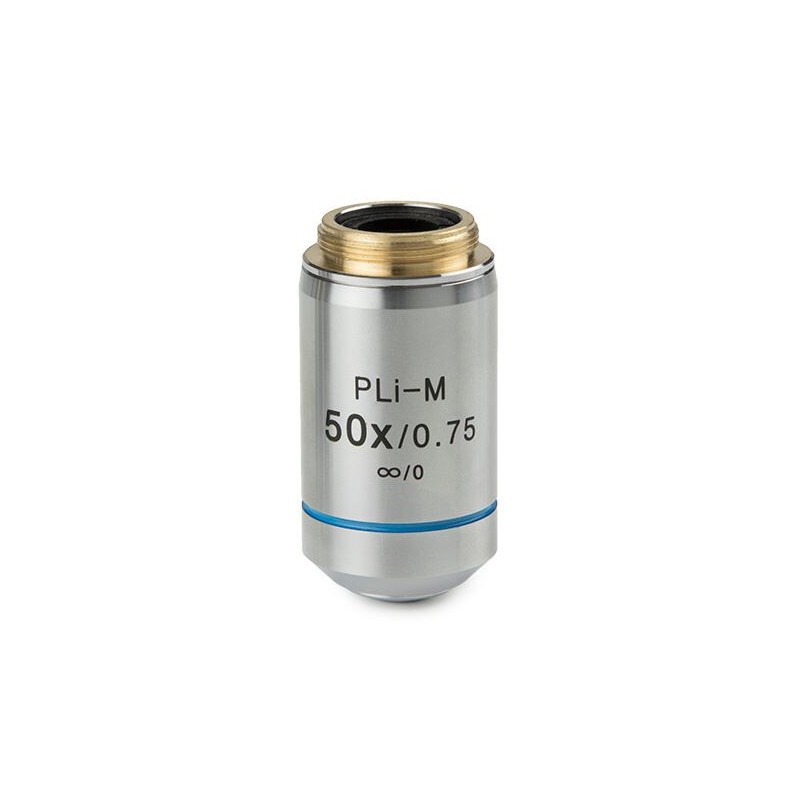

The Euromex Objective IS.8150 is a high-magnification microscope objective designed for metallurgical and materials science applications. With 50x magnification, this objective features an infinity-corrected optical system and a plan apochromatic design, ensuring sharp and flat images across the entire field of view. It is part of the iScope series and is ideal for detailed analysis of reflective surfaces such as metals, semiconductors, and other opaque specimens that do not require cover glass correction.

4354.14 kn
Tax included

3539.95 kn net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Euromex Objective IS.8150 is a high-magnification microscope objective designed for metallurgical and materials science applications. With 50x magnification, this objective features an infinity-corrected optical system and a plan apochromatic design, ensuring sharp and flat images across the entire field of view. It is part of the iScope series and is ideal for detailed analysis of reflective surfaces such as metals, semiconductors, and other opaque specimens that do not require cover glass correction.



This objective provides high magnification with a numerical aperture of 0.70, allowing for excellent resolution and light-gathering capabilities. The plan apochromatic design (PLMi) ensures minimal distortion and chromatic aberrations, delivering high-quality images across the entire field of view. The short working distance of 0.32 mm enables close examination of specimens, making it suitable for applications requiring detailed imaging of fine structures on reflective surfaces. The absence of cover glass correction makes this objective particularly suited for uncovered specimens, commonly encountered in metallurgical and industrial inspection tasks.



Product Details:

Optics:

  • Magnification: 50x

  • Optical system: Infinity

  • Cover glass correction: No

  • Infinity corrected: Yes

Capacity:

  • Image scale: 50

  • Numerical aperture: 0.70

Mechanics:

  • Working distance: 0.32 mm

  • Compatible series: iScope

Miscellaneous:

  • Supplier product number: IS.8150

Data sheet
