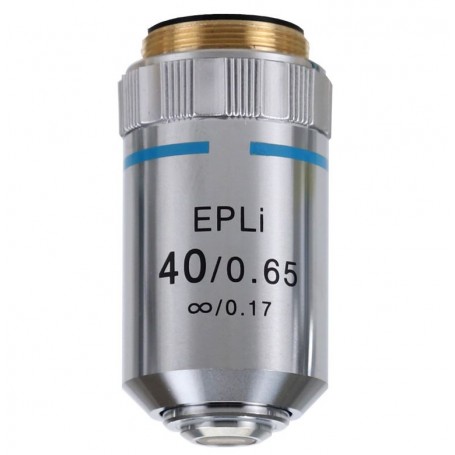

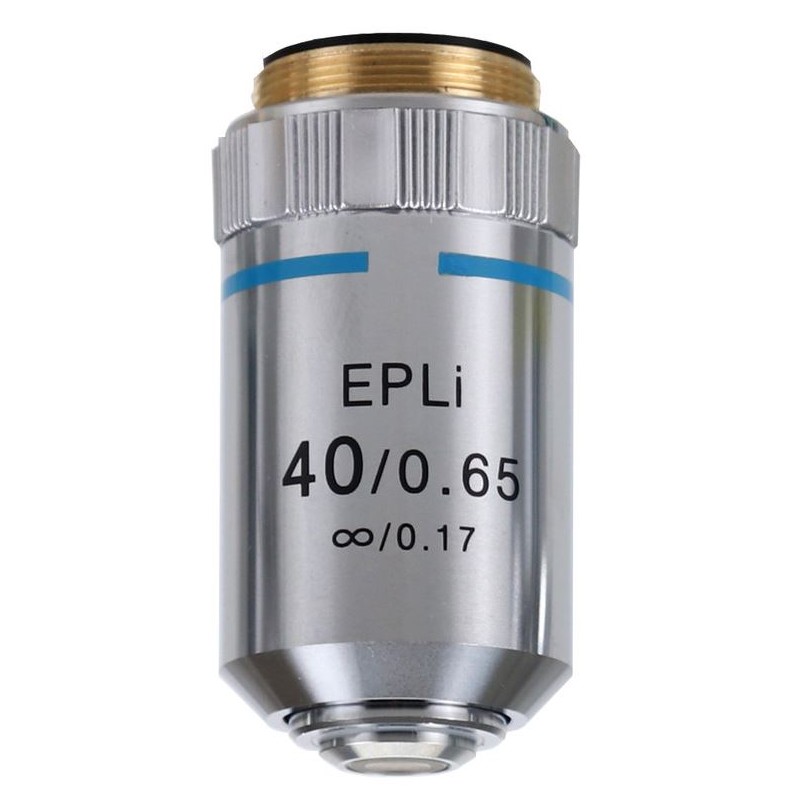

Euromex Objective IS.8840, 40x/0.65, EPLi, E-plan, infinity, S (iScope) (53368)

The Euromex Objective IS.8840 is a high-quality microscope objective designed for advanced microscopy applications. This 40x magnification objective features an infinity-corrected optical system and an E-plan design, ensuring sharp and flat images across the entire field of view. It is part of the iScope series and offers excellent resolution and contrast, making it suitable for a wide range of biological and material science applications requiring detailed examination of specimens.

This objective provides high magnification with a numerical aperture of 0.65, allowing for excellent resolution and light-gathering capabilities. The E-plan design (EPLi) ensures minimal distortion and chromatic aberrations, delivering high-quality images across the entire field of view. The relatively short working distance of 0.43 mm enables close examination of specimens while still providing some flexibility in sample manipulation. The objective is designed for use with standard 0.17 mm thick cover glasses, optimizing its performance for typical specimen preparations. The "S" designation likely indicates a spring-loaded design, which helps protect both the objective and specimens from accidental damage during use.

Product Details:

Optics:

• Magnification: 40x

• Optical system: Infinity

• Field curvature: Plan

• Cover glass correction: Yes

• Infinity corrected: Yes

Capacity:

• Image scale: 40

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 0.65

Mechanics:

• Working distance: 0.43 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.8840
