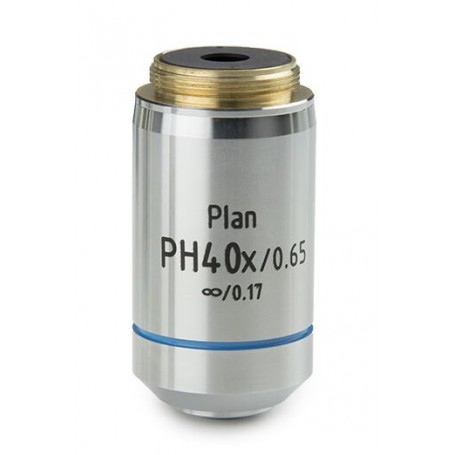

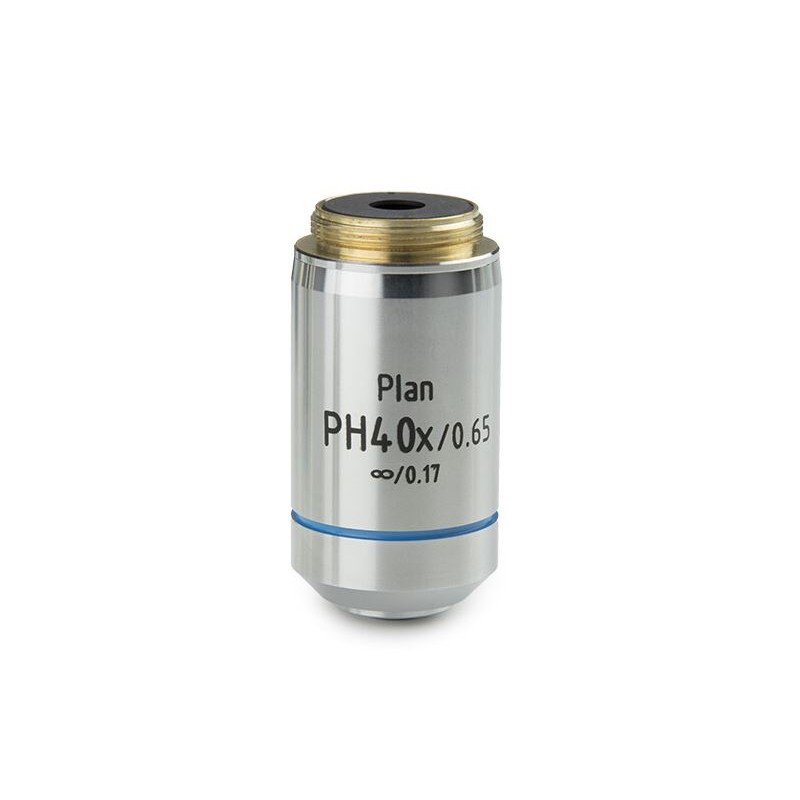

Euromex Objective IS.8940, 40x/0.65, PLPHi, plan, phase, infinity, S (iScope) (53390)

The Euromex Objective IS.8940 is a high-performance microscope objective designed for phase contrast microscopy applications. With 40x magnification, it features an infinity-corrected optical system and a plan apochromatic design, ensuring sharp and flat images across the entire field of view. Part of the iScope series, this objective is ideal for observing transparent specimens with enhanced contrast, making it suitable for biological research, live cell imaging, and other advanced microscopy tasks.

This objective provides high magnification with a numerical aperture of 0.65, offering excellent resolution and light-gathering capabilities. The phase contrast feature enhances visibility of transparent or unstained specimens, making it particularly valuable for applications such as live cell imaging and studying fine biological structures. The plan apochromatic design (PLPHi) ensures minimal distortion and chromatic aberrations, delivering crisp images across the entire field of view. The short working distance of 0.5 mm allows for precise specimen observation, while the "S" designation indicates a spring-loaded design to protect both the objective and specimens from accidental damage during use.

Product Details:

Optics:

• Magnification: 40x

• Optical system: Infinity

• Field curvature: Plan

• Cover glass correction: Yes

• Infinity corrected: Yes

Capacity:

• Image scale: 40

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 0.65

• Phase contrast: Yes

Mechanics:

• Working distance: 0.5 mm

• Compatible series: iScope

Miscellaneous:

• Supplier product number: IS.8940
