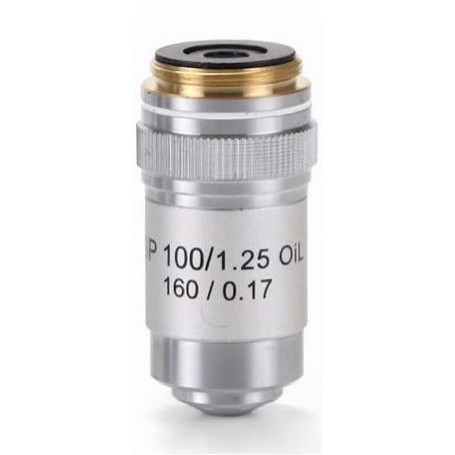

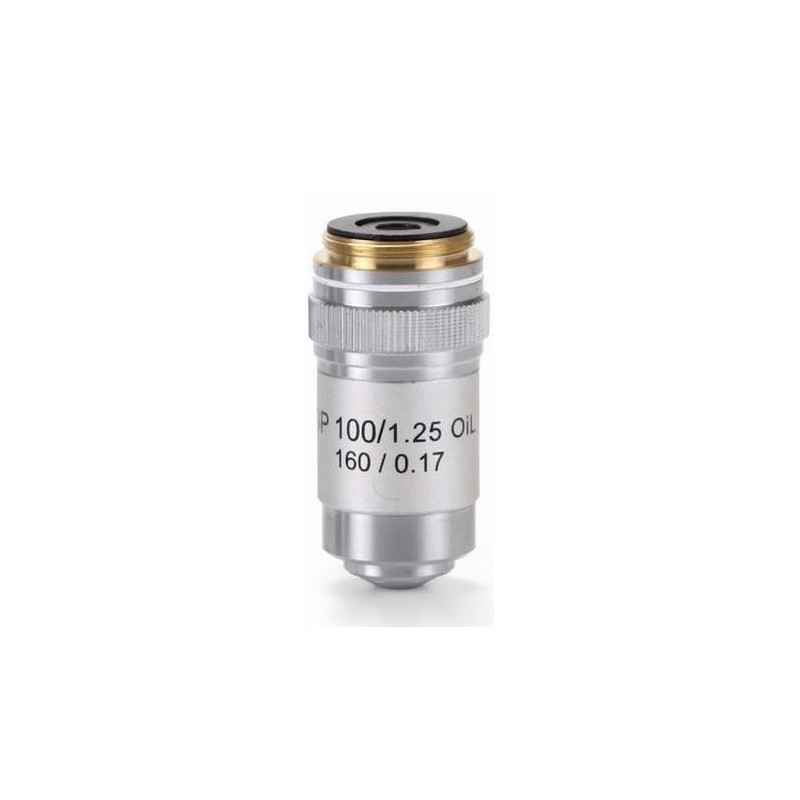

Euromex S100X/1.25 semiplan, sprung, oil-immersion microscope objective AE.5601 (BioBlue) (56824)

The Euromex S100X/1.25 semiplan, sprung, oil-immersion microscope objective (AE.5601) is a high-magnification lens designed for advanced microscopy applications. This objective is part of the BioBlue series and is optimized for use with DIN standard microscopes. It offers exceptional resolution and contrast for detailed examination of biological specimens, making it suitable for educational and research purposes.

This objective combines high magnification with a high numerical aperture of 1.25, allowing for exceptional resolution and light-gathering capabilities. The semi-planachromatic design ensures good flatness of field and color correction across most of the image. The spring-loaded mechanism (indicated by "sprung") helps protect both the objective and specimens from accidental damage. As an oil-immersion objective, it enables close examination of specimens with minimal light loss, making it particularly suited for applications requiring the highest level of detail and clarity, such as cellular biology and pathology.

Product Details:

Optics:

• Magnification: 100x

• Field curvature: Semi-planachromatic

• Infinity corrected: No

• Cover glass correction: Yes

• Optical system: DIN (160mm)

Capacity:

• Numerical aperture: 1.25

Compatibility:

• Matches the series: BioBlue

Miscellaneous:

• Supplier product number: AE.5601
