Euromex BS.9126, Zernike phase contrast kit, plan PLPHi infinity (bScope) (55462)

The Euromex BS.9126 is a comprehensive Zernike phase contrast kit designed for use with bScope series microscopes. This advanced kit enhances the microscope's capabilities for observing transparent and low-contrast specimens with exceptional clarity and detail.

This Zernike phase contrast kit is an essential tool for researchers using bScope microscopes who require the highest quality phase contrast imaging across multiple magnifications, with the added benefit of plan optics for edge-to-edge clarity.

Product Overview: Euromex BS.9126 Zernike Phase Contrast Kit

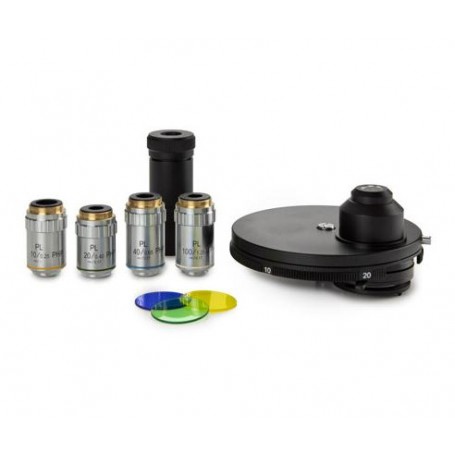

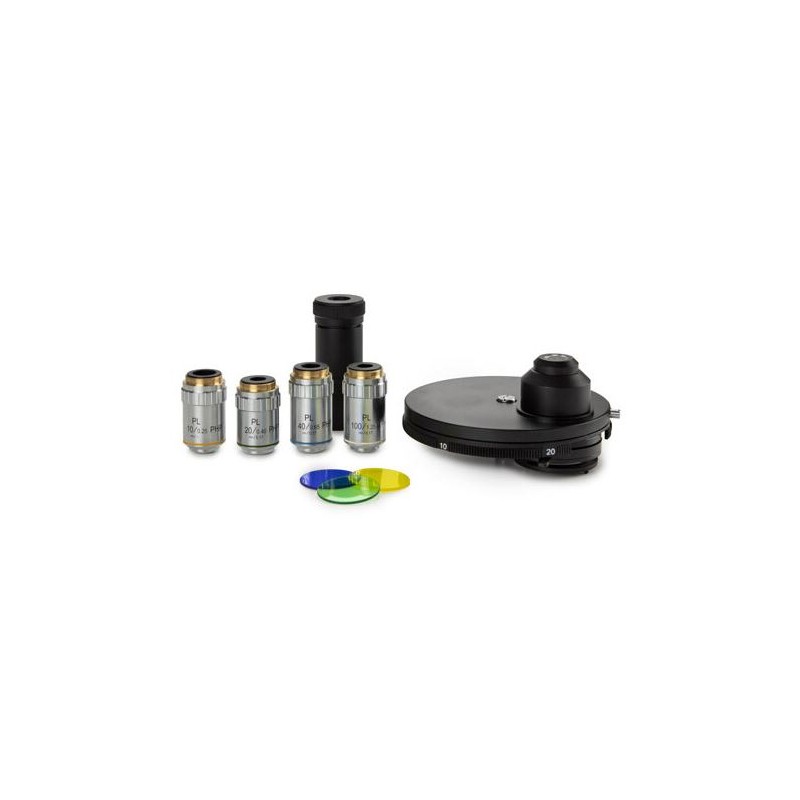

Key Components:

• Plan PLPHi infinity-corrected phase contrast objectives:

  • 10x

  • 20x

  • S40x (spring-loaded)

  • S100x oil immersion (spring-loaded)

• Zernike rotating condenser

• Telescope for alignment

• Green filter

Technical Specifications:

• Optical System: Infinity corrected

• Field Curvature: Plan

• Suspension: Yes (for 40x and 100x objectives)

• Immersion Lens: Yes (100x objective)

• Condenser: Zernike type

• Lens Type: Phase contrast

• Compatibility: bScope series

Features:

• Delivers high-contrast images of transparent specimens

• Infinity-corrected optics for superior image quality

• Plan objectives for flat field of view across entire magnification range

• Spring-loaded higher magnification objectives for protection

• Rotating condenser for easy phase ring alignment

• Includes alignment telescope for precise setup

Additional Information:

• Supplier Product Number: BS.9126

• Ideal for life sciences, cell biology, and medical research

• Enables detailed observation of unstained, living specimens

• Superior plan optics for enhanced image quality compared to E-plan versions
