Euromex Microscope filter set, Green Excitation (without DX.9749), DX.9746-6 (Delphi-X) (56688)

The Euromex Microscope fluorescence filter set DX.9746-6 is designed for green excitation and is compatible with the Delphi-X Observer series microscopes. This filter set is ideal for fluorescence microscopy applications requiring green light excitation and enables precise imaging of fluorophores that emit at longer wavelengths.

Key Features:

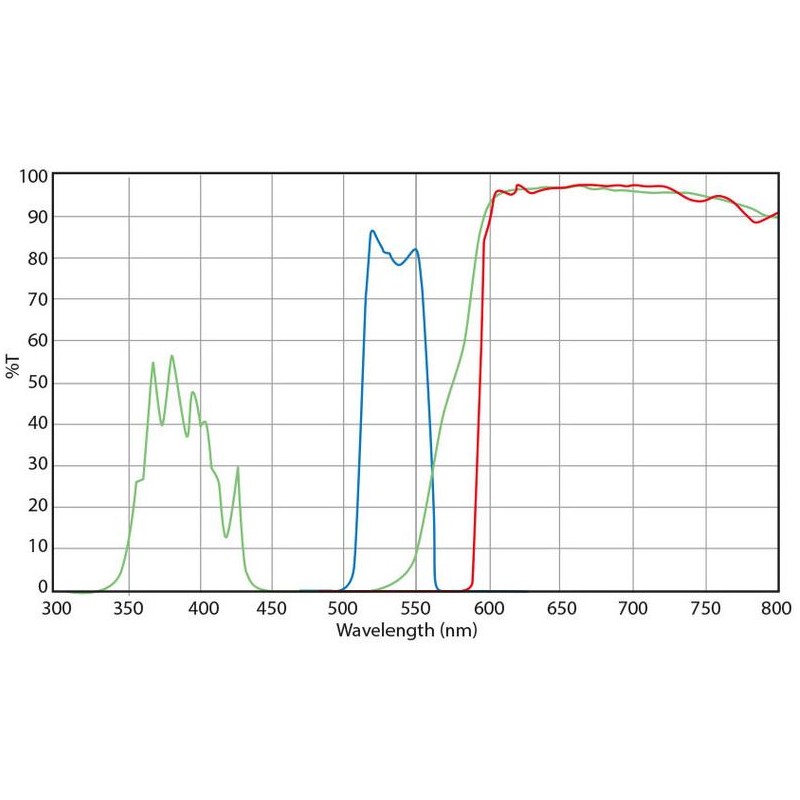

• Excitation filter: 510-550 nm bandpass

• Dichroic mirror: 570 nm

• Emission filter: 590 nm longpass

• Compatible series: Delphi-X Observer

• Supplier product number: DX.9746-6

Important Notes:

• This filter set requires an empty filter block (DX.9749, sold separately).

• Designed for standard fluorescence applications with green excitation.

Selecting Fluorescence Filter Sets:
When choosing a fluorescence filter set, it is critical to match the spectral characteristics of the excitation and emission filters and the dichroic mirror with the fluorophores used. Key considerations include:

• Separation between excitation and emission wavelengths.

• Slope of the dichroic mirror for optimal separation.

• Optical density and type of emission filters (longpass or bandpass).

• Transmission percentages of the filters and durability of their coatings.

Filter Set Types:

• Standard sets: Affordable, durable, and suitable for routine fluorescence applications requiring precise color discrimination and excellent out-of-band blocking.

• Optimized/Premium sets: Feature maximum transmission levels, steep transitions, and high optical density, ideal for modern fluorophores with short Stokes shifts or minimal spectral separation.

This green excitation filter set is part of Euromex's standard fluorescence lineup, offering reliable performance for common applications in cell biology, molecular biology, and other fluorescence imaging tasks.
