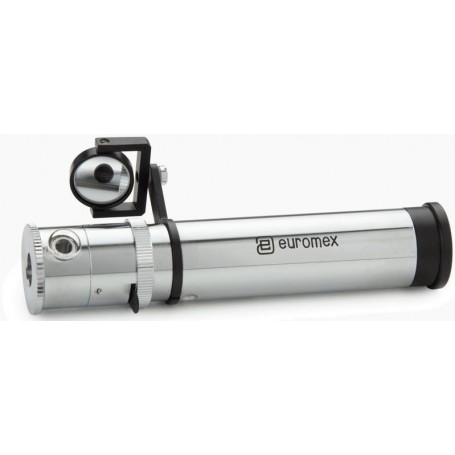

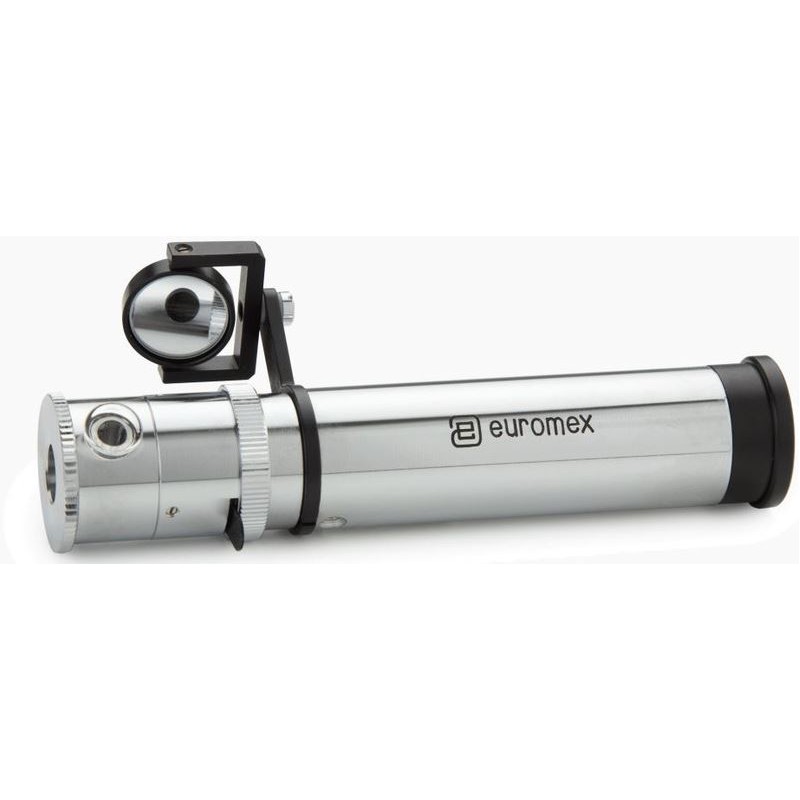

Euromex Hand spectroscope with comparison prism (9070)

The Euromex Hand Spectroscope with Comparison Prism is a portable optical instrument designed for analyzing light spectra. This advanced model includes several key features that enhance its functionality and precision:

Key Features:

• Direct vision type for clear spectral observation

• Adjustable eyepiece for improved focus

• Adjustable slit ranging from 0 to 1 mm for fine-tuning light input

• Integrated comparison prism for simultaneous analysis of two spectra

• Mirror and 5 glass mini-cuvettes included for sample analysis

• Wavelength scale from 400 to 700 nm with a 589 nm indication

The spectroscope's design allows for both emission and absorption spectra analysis, making it suitable for various applications in chemistry, physics, and gemology. Its compact size and handheld nature make it ideal for field work and educational demonstrations.

The comparison prism is a particularly valuable feature, enabling users to compare two spectra side by side. This is especially useful in gemological investigations for identifying and distinguishing between different gemstones.

With an angle dispersion of approximately 6-7° (C-F) and a linear dispersion of 40-60 mm, this spectroscope offers a good balance between spectral resolution and ease of use. The inclusion of mini-cuvettes expands its capabilities for liquid sample analysis.

This Euromex model is well-suited for both educational and professional settings, providing a reliable tool for spectral analysis in various scientific disciplines.
